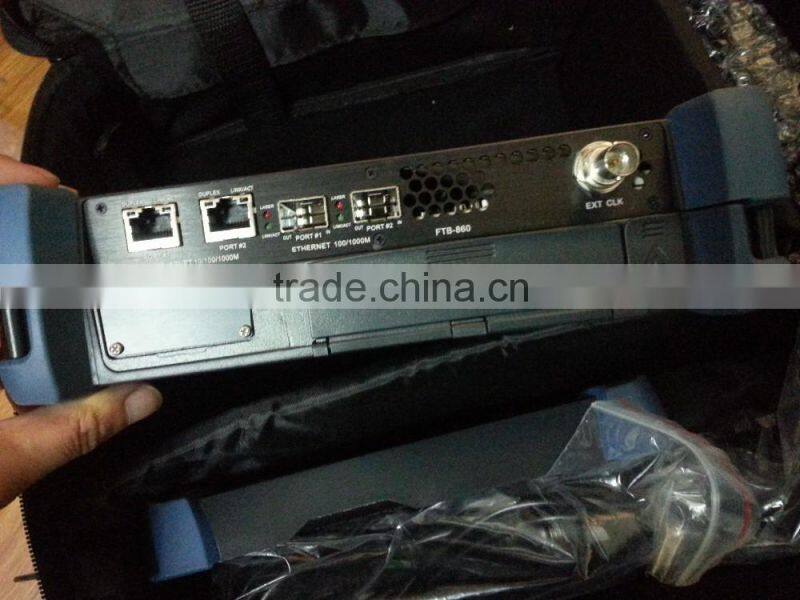

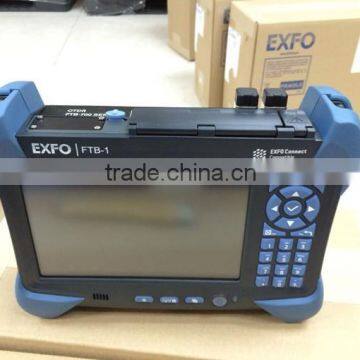

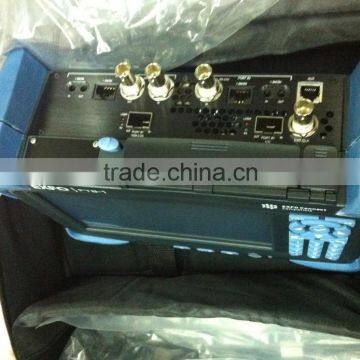

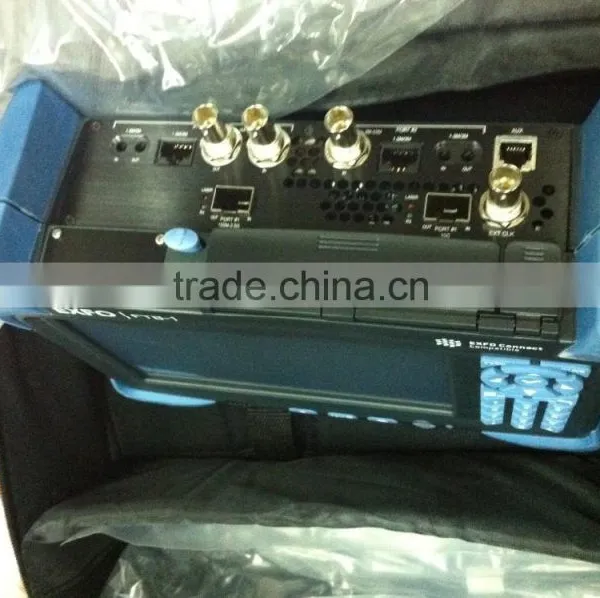

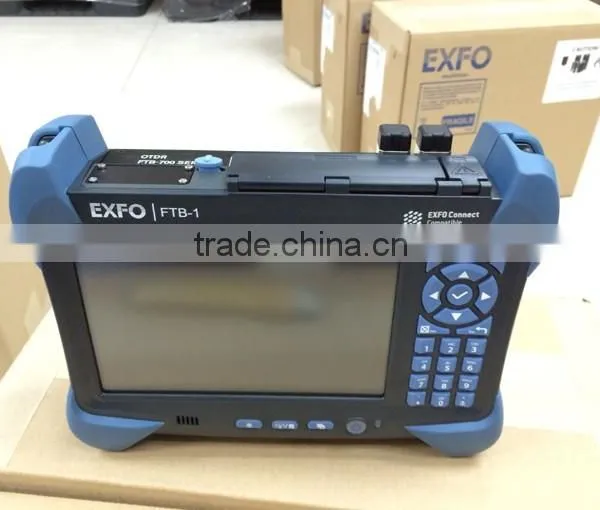

EXFO FTB-1-860GL NetBlazer Gigabit and 10 Gigabit Dedicated Loopback Kit

Name: EXFO FTB-1-860GL NetBlazer Gigabit and 10 Gigabit Dedicated Loopback Kit
Brand: EXFO
SKU: 108969285
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Canada

Brand Name:

EXFO

Model Number:

FTB-1-860GL

Shenzhen Hontek Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Canada

Brand Name EXFO

Model Number FTB-1-860GL

EXFO FTB-1-860GL NetBlazer Gigabit and 10 Gigabit Dedicated Loopback Kit

Contact information

Mobile: 0086-13728095480 Jim

Tel:+86-755-36934393

Fax: 0086-755-33503470

Website: www..hk

Skype: HONSERV

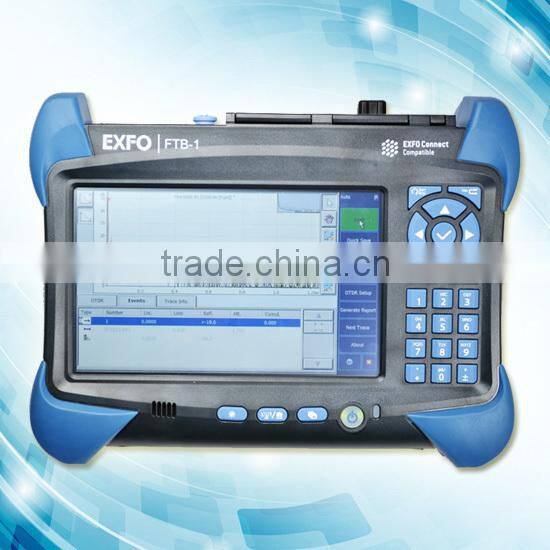

FTB-1 platform

Display	Touchscreen, color, 640 x 480 TFT 163 mm (6.4 in)
Interfaces	USB A main USB B remote RJ-45 LAN 10/100 Mb/s Compact Flash Fiber inspection probe connector port (video)
Storage	Internal 80 MB (Flash) USB sticks 1 GB and 2 GB (optional) Compact Flash cards (optional)
Batteries	Rechargeable Li-Ion 8 h of operation as per Bellcore TR-NWT-001138
Power Supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W

GENERAL SPECIFICATIONS
Temperature
Operating	-5 °C to 50°C
Storage	-40 °C to 70 °C
Relative humidity	0 % to 95 % non-condensing
Size (H x W x D)	322 mm x 197 mm x 109 mm (12 11/16 in x 7 3/4 in x 4 5/16 in)
Weight	2.5 kg (5.4 lb)
Vibration	< 1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock	< 760 mm on six sides and eight main edges (according to GR-196-CORE)

Kit Models	Description
TK-1-FTB-860GL	TK-1-860GL Kit - Base Mainframe AND Module
	_____FTB-1 MAINFRAME (qty:1)_____
	Single-slot capacity Modular mainframe - Touchscreen, color, 800 x 480 TFT, 178 mm (7 in) - Storage: > 16 GB Internal Memory - Interfaces > RJ-45 LAN 10/100/1000 Mbit/s > USB 2.0 ports (qty:2) > Fiber inspection probe connector port (video)
	_____FTB-860G MODULE (qty:1)_____
	10/100/1000 Electrical & 1000 Optical with 10 GigE Optical LAN/WAN DEDICATED LOOPBACK Ethernet Module Ethernet Loopbacktesting including: - Single port 10/100/1000 Base-T Electrical interface - Single port 1000 Base-X optical interface - Single port 10 GigE LAN & WAN - Supports Bi-Directional loopback for EtherSAM, RFC-2544 - Supports Loopback for BERT,3rd party loopback, Traffic Generation, Ping, Trace Route -Supports being detected by Intelligent auto discovery.

Includes :	- GP-2142: Battery (qty:1)
(Mainframe)	- GP-2021**: 90W, AC Adapter with power cord
	- GP-2151: Hook strap
	- GP-2152: Hand strap
	- Any options and accessories with Included in place of a pricing.
