FTTH OTDR HSV-600 Visual diagram similar like EXFO iolm
Fax: 0086-755-33503470
Skype:khonserv
Feature

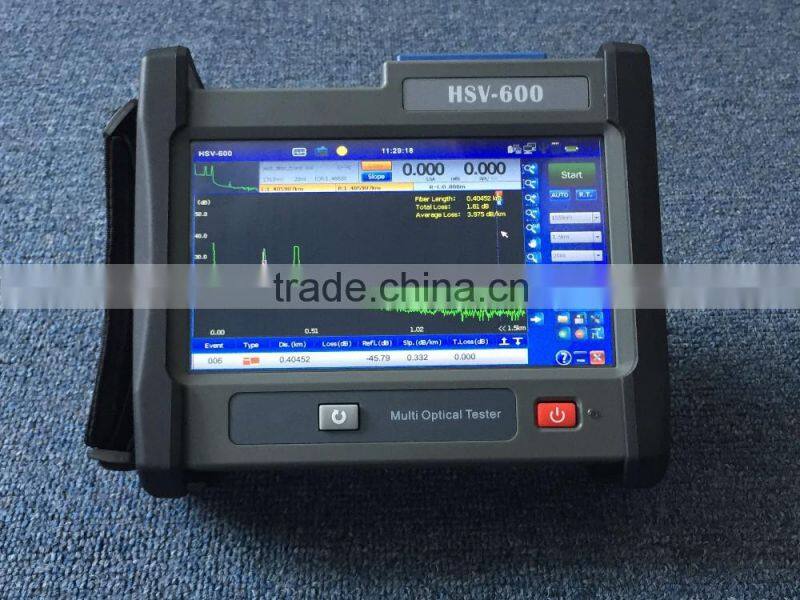

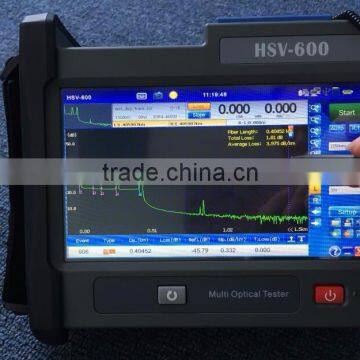

7-inch, outdoor enhanced touch screen for you to get visual GUI.
Handy, lightweight, powerful, 12-hour atonomy----unprecedented testing experience is very suitable for fiber optic test environment.
HSV-600 series have outstanding optical performance, exquisite appearance, accurate and stable internal parameters. It is the first choice of every fiber optic project company.

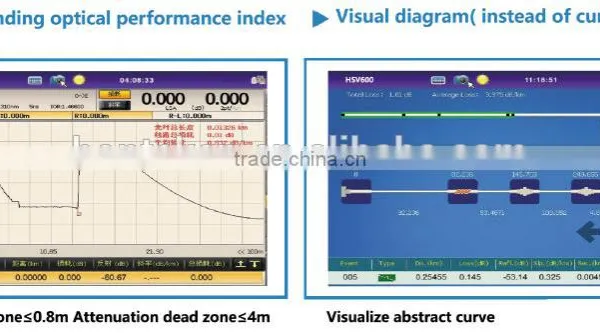

Outstanding optical performance index
Visual diagram( instead of curve)
Even dead zone≤0.8m Attenuation dead zone≤4m
Visualize abstract curve
Specification
HSV-600 Specifications | |||||
Model |
HSV-610 |
HSV-620 |
HSV-630 |
HSV-630A |
HSV-640 |
|
Wavelength(nm)
|
1310/1550nm |
1310/1550nm |
1310/1550nm |
1310/1550/1625nm |
1310/1550nm |
Wavelength Accuracy (nm) |
± 20 nm |
||||
Dynamic (dB) |
30/28dB |
34/32dB |
37/35dB |
37/35/35dB |
40/38dB |
Event Dead Zone (m) |
1.5 |
1 |
0.8 |
0.8 |
0.8 |
Atten. Dead Zone (m) |
6 |
5 |
4 |
4 |
4 |
Pulse width(ns) |
5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1µs, 2µs, 5µs, 10µs, 20µs |
||||
Distance range (km) |
100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km |
||||
Distance Accuracy (m) |
0.1(HSV-610/ HSV-620),0.5(HSV-630/ HSV-630A/ HSV-640) |
||||
Sampling Points |
128000 |
256000 |
|||
Refractive Index range |
1.30000-1.70000 |
||||
Distance Accuracy (m) |
±(0.75m+0.005% x distance + sampling resolution) |
±(0.75m+0.001% x distance + sampling resolution) |
|||
Linearity (dB/dB) |
0.03 |
||||
Loss threshold (dB) |
0.01 |
||||
Loss resolution (dB) |
0.001 |
||||
Measurement time |
5s-5mins, real-time |
||||
real-time refresh (Hz) |
4 |
||||
Power meter |
Calibrated Wavelength:1310nm/1550nm working wavelength:850nm/980nm/1300nm/1310nm/1490nm/1610nm Dynamic:-70dB~+10dB,±0,17dB accuracy |
||||
VFL |
650nm±10nm,10mw |
||||
FIBER INSPECTION PROBE |
250X, USB2.0 |
||||
stabilized light source |
HSV-610/ HSV-620 :1310 nm/1550nm,-11dBm HSV-630/ HSV-640 :1310 nm/1550nm,-4dBm HSV-630A :1310 nm/1550nm/1625nm,-4dBm |
||||
Display |
7 in (178 mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
||||
Interfaces |
Two USB 2.0 ports RJ-45x1, LAN ,10/100 Mbit/s,Macro SDx1
|
||||
Storage |
8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces) |
||||
Battery Life |
7.4 v,5300mAh lithium battery pack,39.22Wh supports 8 hrs, continuous (at max charge)
|
||||
Power consumption |
<3W |
||||
Power supply |
Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz, DC out 12V,1.5A
|
||||
Applicable environment |
Operating temperature range:-10℃—+50℃ Relative humidity:-40℃—+70℃ |
||||
Dimensions (WxHxD) |
196*172*72mm |
||||
Weight(including battery) |
<1.5kg |
||||
Language |
Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic) |
||||
