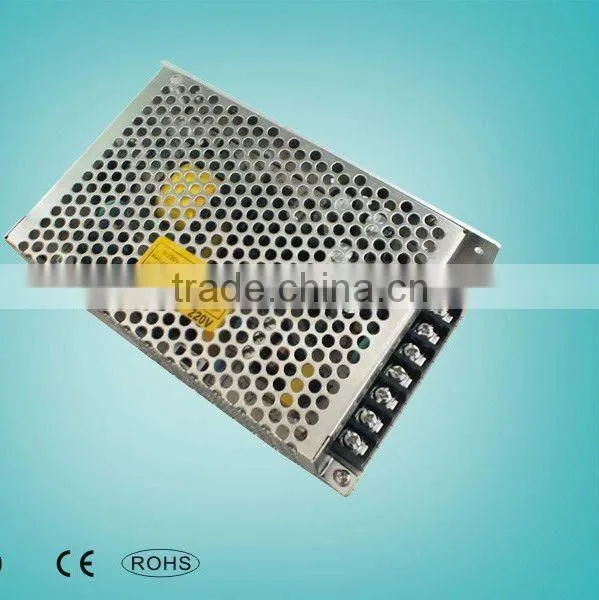

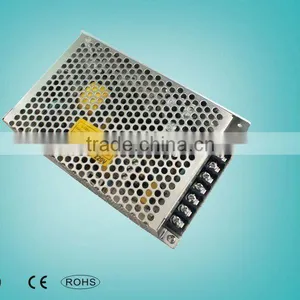

60W Dual output voltage switching power supply
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ILM | Model Number: | ILMSP-022 |
Output Power: | 51 - 100W | Output Type: | Dual | Input Voltage: | Other, 110V-240VAC |
Output Voltage: | 5/12VDC 5/24VDC | Output Frequency: | 50/60HZ | Output Current: | 4A 3A/3 1.8A |
Product Description
Specifications
60W dual voltage switching power supply1.Certification:UL SAA PSE FCC CE C-tick GS TUV
2.60W output
3.size:159*98*38mm
1. 3 years warranty
2. 85~264VAC full range of input or input select by switch
3. Low cost, High operating reliability at high temperature
4. Forced air cooling by built in DC fan
5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections
Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
6. LED indicator for power on
7. 100% burn-in tests (at full load)
8. Built-in cooling Fan ON-OFF control
9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.
10.Life span: greater than 50000hrs
11.MTBF:greater than 250Khrs
12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
13.Working temperature: -10~60°C
Model | ILM-60D-1 | ILM-60D-2 | ||
Rated DC Output | 5VDC | 12VDC | 5VDC | 24VDC |
Rated Current ( | 4A | 3A | 3A | 1.8A |
Rated Power | 54W | 54W | ||
Input Voltage | 85~264 VAC/ 47~63 Hz | |||
Over-load Protection | 135% (Fold back current limiting, recover automatically after problems removal) | |||
Over-Voltage Protection | 130% (Hiccup mode, recovers automatically after faulty problems removal | |||
Efficiency | 73% | 75% | ||
Life Span | 50000hrs | |||
MTBF | 250Khrs | |||
Withstand Voltage | I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG:500VAC | |||
Working-Temperature | -10~60°C | |||
Vibration | 10-500Hz, 2G 10min./1cycle, period for 60min, each along x, y, z axes. | |||
Size (L*W*H) | 159*98*38mm | |||
Packing | 0.54Kg/pcs, 30pcs/CTN |
