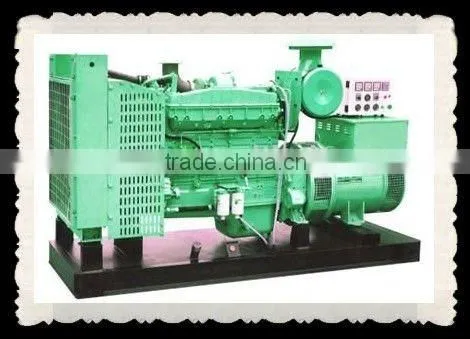

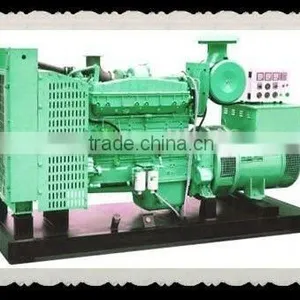

Competitive Price Diesel Generator Set

Name: Competitive Price Diesel Generator Set
Brand: WONYONG
SKU: 108968549
Availability: InStock

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

WONYONG

Model Number:

WY-CM50

Fuan Wonyong Electrical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name WONYONG

Model Number WY-CM50

Output Type AC Three Phase

Speed 1800RPM

Frequency 60HZ, 50/60hz

Rated Power 40KW

Rated Voltage 380V,400V,440V

Rated Current other

Specifications

diesel generator set
1top qualty,factory price
2,380v,cummins generator set
3,single phase or three phase

diesel generator set
1top qualty,factory price
2,cummins generator set,380v
3,single phase or three phase

disel generator specification

Model		WY-CM50(S)
Cont.AC outpu(KW)		40	45
Max.output(KW)		45	50
Voltage(V)		380V,400V,440V
Frequency(Hz)		50	60
Power factor		0.8
GENERATOR	Model	WY224D
	Cont.AC output(KW)	40	45
	Max.output(KW)	45	50
	Excitation SyStem	Brushless excitation
	InSulation Class	H
	ConStruction Type	SAE engine adaptor (single-bearing or double-bearing)
ENGINE	Model	4BTA3.9-G2
	Number of cylinders	4L
	Bore×stroke(mm)	102×120
	Compression Ratio
	Displacement(L)	3.9
	Specific fuel consumption (g/kW.h)	≤209
	Rated speed(r/min)	1500	1800
	Cont.output(kW)	50	55
	Max.outout(kW)	55	60
	Starting system	Electric
	Cooling method	Closed circle water-cooled
	Starting battery	12V/120AH
Gensetfor protection		The protection of low accumulator,overspeed,high water temperature,low press-gas
ing time(h)		12
Overall dimensions(mm)		22509501150
Package dimensions(mm)		235010001220
Net weight(kg)		1120
Dry weight(kg)		1170
