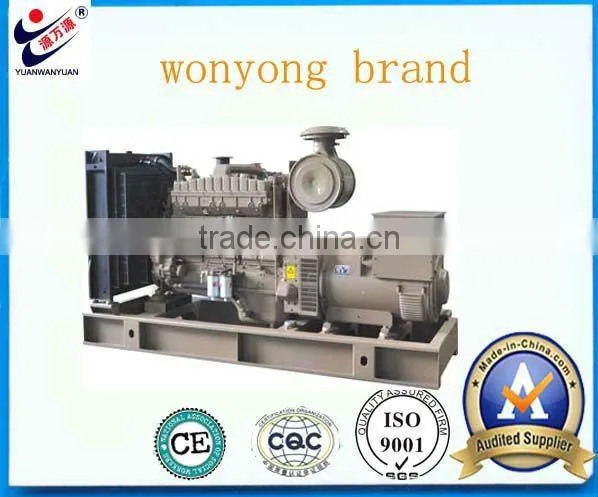

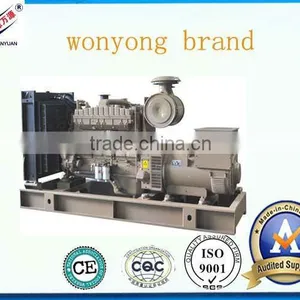

Help CenterQuick Shippment !! 30kw to 150kw Cummins Generator
Related Products
-
Electric Three Phase Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set -
Competitive Price Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set
-
Closed Circle Water-cooled With Three Phase Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set
-
Brushless Excitation Three Phase Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set
-
Excitation SyStem Three Phase Diesel Generator SetUS$ 1 - 10,000MOQ: 1 Set
Specifications
generator diesel1single or 3 phase,water cooled
2 open or silent,220v/380v
3,1500/1800rpm
4 best after sale service
Optional for Cummins generator:
1. ATS(Automatic Transfer switch), it can start generator set when the main power is off, once the main power comes back, the generator set will turn off automaticly.
And ATS have the function of AMF (automatic Main power failure)
2. MCCB(Molded case circuit breaker)
It can protect the loading machine and the diesel generator.
3. Battery charger(float charger)
When the generator hasn't been used for a long time, the batteries will be no power, in that way, you can't start the generator, but the battery charger can charge the batteries from the main power.
4. Extra daily fuel tank
It will be requested while the base fuel tank capacity is not enough for daily fuel consumption
5. Paralleling system
This system can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel
Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.
7. Water separate(additional cooling system)
If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.
8. Spare Parts of Cummins engine
All the spare parts of each Cummins engine are supplied at very competitive price.
Generator Supply Scope:
.Engine:
1.Cummins : 6LTAA8.9-G2
2.Displacement:: 14 L
3.Cylinder quantity :6Cylinder
4.Fuel consumption: 192g/kw.h
5.Cooling Method: Water-cooled
6.Air intake way: Turbo-charged
7.Coolant capacity - engine only:20.8L
8.Governor method: Electrical Governor
Alternator:
1.Bearing: Single
2.Insulation Class: H
3.Phase: 3 Phase 4 wires
4.Protection Degree: IP 23
5.Excitation way: Brushless excitationing
6.Leroy somer, Stamford, Marathon for you choose
Other Optional part:
diesel generator specification
| Model | WY-CM38(S) | ||
| Cont.AC outpu(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Voltage(V) | 220/380 | ||
| Frequency(Hz) | 50 | 60 | |
| Power factor | 0.8/1 | ||
| GENERATOR | Model | XD184H | |
| Cont.AC output(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Excitation SyStem | Brushless excitation | ||
| InSulation Class | H | ||
| ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | ||
| ENGINE | Model | 4BT3.9-G2 | |
| Number of cylinders | 4L | ||
| Bore×stroke(mm) | 102×120 | ||
| Compression Ratio | |||
| Displacement(L) | 3.9 | ||
| Specific fuel consumption (g/kW.h) |
≤209 | ||
| Rated speed(r/min) | 1500 | 1800 | |
| Cont.output(kW) | 36 | 40 | |
| Max.outout(kW) | 40 | 44 | |
| Starting system | Electric | ||
| Cooling method | Closed circle water-cooled | ||
| Starting battery | 12V/120AH | ||
| Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | ||
| ing time(h) | 12 | ||
| Overall dimensions(mm) | 2250*950*1150 | ||
| Package dimensions(mm) | 2350*1000*1220 | ||
| Net weight(kg) | 1080 | ||
| Dry weight(kg) | 1130 | ||
Warranty
