Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > WY 65KVA Generator Diesel Engine

WY 65KVA Generator Diesel Engine

Name: WY 65KVA Generator Diesel Engine
Brand: Wonyong
SKU: 108968489
Availability: InStock

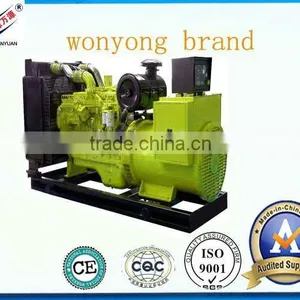

WY 65KVA Generator Diesel Engine thumbnail-1

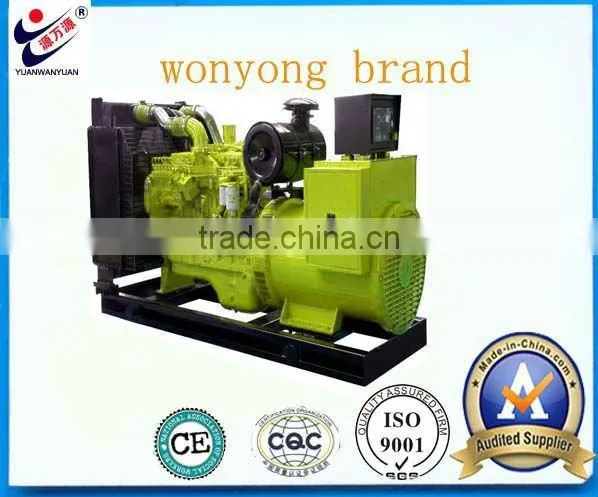

WY 65KVA Generator Diesel Engine photo-1

US$ 1 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Wonyong

Model Number:

WY-CM75

Contact Supplier Request Quote Chat Now

Fuan Wonyong Electrical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Wonyong

Model Number WY-CM75

Output Type AC Three Phase

Speed 1800RPM

Frequency 60HZ

Rated Power 30KW

Rated Voltage 220/380V,400v

Rated Current other

Specifications

Cummins diesel generator
1 high quality goods with factory price
2 Production line: diesel generator set :2kw~600kw
factory

Cummins diesel generator
1 high quality goods with factory price
2 Production line: diesel generator set :2kw~600kw

factory price Cummins perkins diesel generator

Our advantages:

1 Wide range:diesel generator ,gasoline generator ,alternator and rotary tiller.

2Our production line : generator set0.65kw~600kw ,including Cummins ,Perkins,Deutz ,Weifang engine,Stamford,Leroy somer alterantor .We have gasoline generator 0.65kw~8kw.

3Our Commitment:offering high quality ,moderate price with good after sale service.

4our goal:to be your long-standing and reliable suppler

5 excellent tech team with professional skills.

Fuan Wonyong Electrical Machinery Co.,Ltd Generator Set

Expert,Supply the Best Power Solutions!

Create For Better and Bright Life!

High Quality!!481KVA Marine Generator Cummins Engine

diesel generator specification

Model		WY-CM38(S)
Cont.AC outpu(KW)		30	33
Max.output(KW)		33	36
Voltage(V)		220/380
Frequency(Hz)		50	60
Power factor		0.8/1
GENERATOR	Model	WY184H
	Cont.AC output(KW)	30	33
	Max.output(KW)	33	36
	Excitation SyStem	Brushless excitation
	InSulation Class	H
	ConStruction Type	SAE engine adaptor (single-bearing or double-bearing)
ENGINE	Model	4BT3.9-G2
	Number of cylinders	4L
	Bore×stroke(mm)	102×120
	Compression Ratio
	Displacement(L)	3.9
	Specific fuel consumption (g/kW.h)	≤209
	Rated speed(r/min)	1500	1800
	Cont.output(kW)	36	40
	Max.outout(kW)	40	44
	Starting system	Electric
	Cooling method	Closed circle water-cooled
	Starting battery	12V/120AH
Gensetfor protection		The protection of low accumulator,overspeed,high water temperature,low press-gas
ing time(h)		12
Overall dimensions(mm)		22509501150
Package dimensions(mm)		235010001220
Net weight(kg)		1080
Dry weight(kg)		1130

Warranty policy:

Guarantee for one year or 1500 hours (according to whichever reach first) from ex-factory date. During the guarantee period, our company will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials, except the damage caused by customer's incorrect manmade operation. After expiration, our company will provides cost spare parts maintenance for gen-set

About Perkins
Perkins is one of the world’s leading diesel engines manufacturer since 1932 with sales volume totalling nearly 400,000 units per year. The engine series of 400, 1100, 1300, 2000 and 4000 having full specification and good structure which provide reliable performance, easy maintenance and low exhaust.

Perkins engine has quick and reliable cold start performance, applies advanced technologies, optimizes combustion process, and finally realizes low fuel consumption, low noise, energy save & environment protection.
