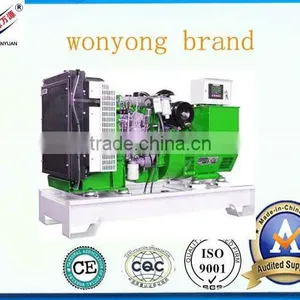

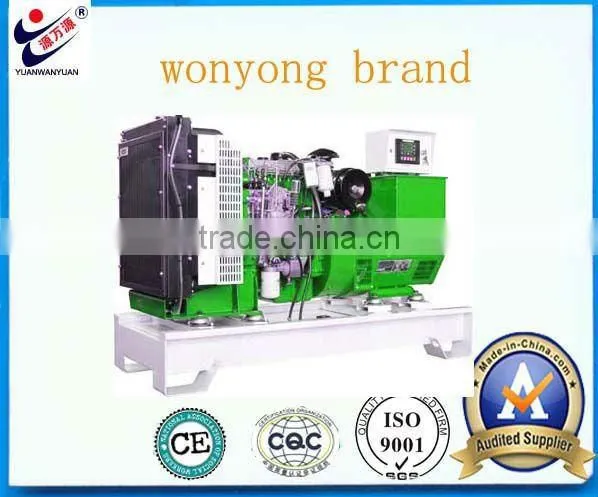

15kva Diesel Generator
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WONYONG
Model Number:
WY-CM38
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
WONYONG
Model Number
WY-CM38
Output Type
Other, AC single or three phase
Speed
1500RPM
Frequency
50HZ
Rated Power
30KW
Rated Voltage
220/380V,400V,440V
Rated Current
other
Specifications
15kva diesel generator1 CE,ISO certificate
2single or 3phase.water cooled generator
3open type,380/220v,50/60hz
15kva diesel generator
1 CE,ISO certificate
2single or 3phase.water cooled generator
3open type,380/220v,50/60hz
4.1year warranty&best after service
5.steady power in working time
15kva diesel generator specification
| Model | WY-CM38(S) | ||
| Cont.AC outpu(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Voltage(V) | 220/380 | ||
| Frequency(Hz) | 50 | 60 | |
| Power factor | 0.8/1 | ||
| GENERATOR | Model | wy184H | |
| Cont.AC output(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Excitation SyStem | Brushless excitation | ||
| InSulation Class | H | ||
| ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | ||
| ENGINE | Model | 4BT3.9-G2 | |
| Number of cylinders | 4L | ||
| Bore×stroke(mm) | 102×120 | ||
| Compression Ratio | |||
| Displacement(L) | 3.9 | ||
| Specific fuel consumption (g/kW.h) |
≤209 | ||
| Rated speed(r/min) | 1500 | 1800 | |
| Cont.output(kW) | 36 | 40 | |
| Max.outout(kW) | 40 | 44 | |
| Starting system | Electric | ||
| Cooling method | Closed circle water-cooled | ||
| Starting battery | 12V/120AH | ||
| Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | ||
| ing time(h) | 12 | ||
| Overall dimensions(mm) | 2250*950*1150 | ||
| Package dimensions(mm) | 2350*1000*1220 | ||
| Net weight(kg) | 1080 | ||
| Dry weight(kg) | 1130 | ||
15kva diesel generator warranty
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period,and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; after the warranty period, we can supply the required spare parts for you under cost prices
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2008
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
