Specifications
1.reasonable structure and highly efficient2.easy maintenance and low energy consumption
3.high quality with competitiveprice

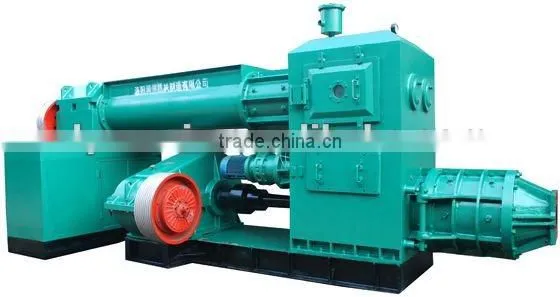

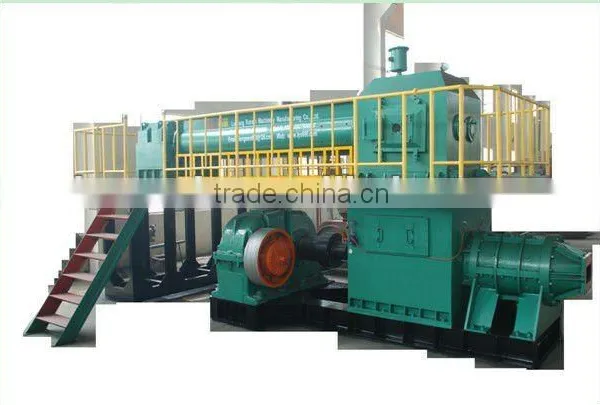

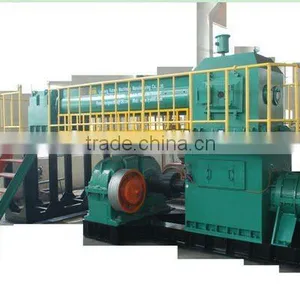

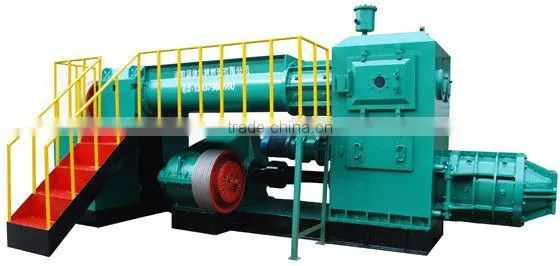

Clay brick Vacuum Extruder JKY series
1, We have professional excellent mechanical and kiln engineers, who can design perfect designing flowchart for the client to construct efficient and reasonable brick making production line.
2,Our clay brick making machine are applicable for the production of high-rate hollow bricks & soild bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.
3,Our clay brick making machine have the features with reasonable structure, highly efficient, easy maintenance, low energy consumption, high quality with competitive price, stable performance, high reliability.
4,We have Approval/certification for clay brick making machine:ISO9001:2000,GB/T 19001-2000.
5,We are one of the few brick machines manufacturing companies which appoint by the Chinese Brick&Tile Association. We have had some customers in India, Bangladesh and other countries, and even now we have helped one customer building the tunnel kiln in Bangladesh. And we sold many machines to Bangladesh, India, Nepal, Vietnam and other countries, and some of them even buy our machines twice or more. So we can promise you the good quality and perfect after-sale service.
Main Technical Data
| Type | measurement Unit | JKY75/75-4.0 | JKY70/70-4.0 | JKY60/60-4.0 | JKY55/55-4.0 | JKY50/50-4.0 | JKY45/45-4.0 |
| Capacity | pcs(standard brick)/hr | 2000-24000 | 18000-22000 | 16000-20000 | 14000-18000 | 11000-15000 | 8000-12000 |
| Reamer Diameter | mm | 750 | 700 | 600 | 550 | 500 | 450 |
| Extruding pressure | Mpa | ≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 | ≤4.0 |
| Forming Liquid Water Content | % | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Max Vacuum Degree | MPA | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 |
| Power | Kw | 90/285/22 | 90/250/22 | 75/200/22 | 75/160/15 | 55/132/15 | 55/110/15 |
