Help CenterClay Brick Making Machine(JKYJKB Series)
Related Products
-
Vacuum Extruder (clay Brick Making Machine )US$ 51,660 - 188,141MOQ: 1 Set -
Vacuum Extruder ( Hot Selling Vacuum Extruder in 2013 )US$ 21,100 - 214,900MOQ: 1 Set
-
All Kinds of Clay/red Brick Making MachineUS$ 21,100 - 214,900MOQ: 1 Set
-
All Kinds of Red Brick Making MachineUS$ 21,100 - 214,900MOQ: 1 Set
-
High Quality Automatic CutterUS$ 2,627 - 6,536MOQ: 1 Set
Specifications
1 . Strong applicability,2 . High efficiency,
3 . Easy maintenance but lower energy consumption
Product introduction

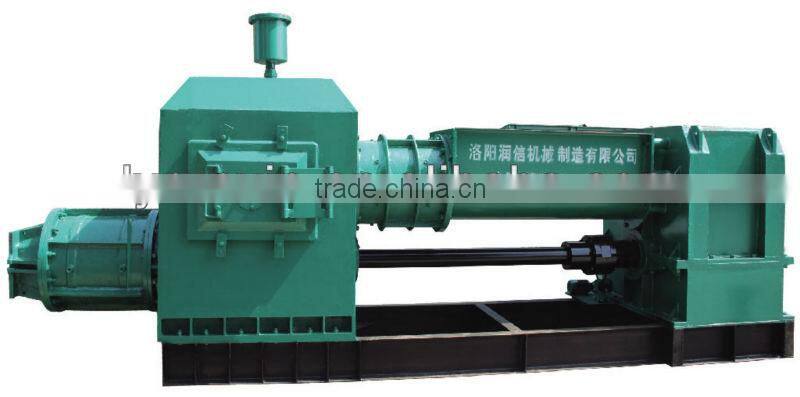

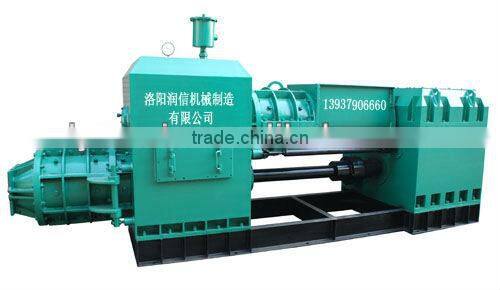

The JKY/JKB/JKR series are advanced twin stage vacuum extruder which draw lessons from the developed domestic, abroad experiences and design to make. They are mainly made of high quality
steel with features of reasonable structure, sturdy and durability. And they have strong applicability,
high efficiency, easy maintenance but lower energy consumption. The machine’s axles, gear and
other important spare parts extend the service life which are made by carbon steel and alloy steel steel through modulation or quench’s heat treatment procession. The dialing mud plate’s transfer and
material level control are fixed with protecting device which improves the plant efficiency of breakdown
maintenance. And it also makes sure that it can’t easily damage the main spare parts during usage.
The reamer adopt the floating shaft structure which can eliminate and reduce the machine’s shaking
and rocking times because of curve in principal axle after long time usage. The blades of the reamer
adopt the wear resistant metallic material coating technology which makes its life four times to seven times longer than the common reamer. The lead has the function of slight pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent.They are

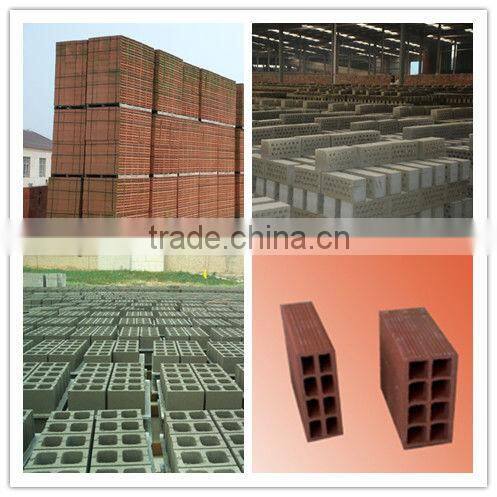

applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high
volume fly-ash, urban construction waste, gangue waste, inferior soil.
Main Data
|
Type
|
Measuring unit |
75/75-4.0 |
70/70-4.0 |
60/60-4.0 |
55/55-3.8 |
50/50-3.0 |
45/45-3.0 |
40/40-2.0 |
35/35-1.5 |
|
Production capability |
standard brick packs/h |
20000-26000 |
20000-24000 |
18000-22000 |
16000-20000 |
14000-18000 |
12000-16000 |
10000-14000 |
8000-12000 |
Reamer diameter |
(mm) |
750 |
700 |
500 |
500 |
500 |
450 |
400 |
350 |
Extruding pressure |
(MPa) |
≤4.0 |
≤4.0 |
≤4.0 |
≤3.8 |
≤3.0 |
≤2.0 |
≤2.0 |
≤1.5 |
Forming liquid water content |
% |
14-16 |
14-16 |
14~20 |
14~20 |
14~20 |
14~20 |
16~22 |
18~22 |
|
Vacuum |
(MPa) |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
|
Power |
(Kw) |
110/250/15 |
90/220/15 |
75/160~185/15 |
75/132~160/15 |
55~75/110~132/15 |
55/90~110/15 |
45/75~90/15 |
37/55~75/15 |
