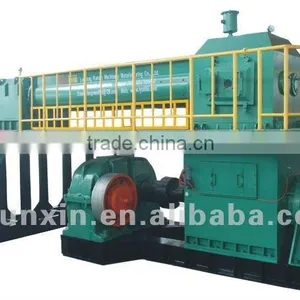

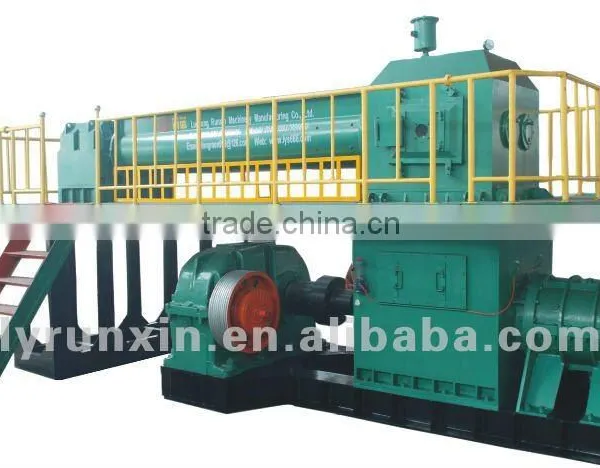

Introduction of automatic JKY series soil brick making machine:
The JKYseries vacuum extruder are our newest product.they have the features as bellows:
1:reasonable design
pact structure
3.simple opetation
4.lower cost and high quality
5.ISO9001:2008 approved
they are applicable forthe production of solid brick,load-bearing perforated brick,and high-rate hollow bricks
with the materials of clay,coal gangue,shale, high-volume fly-ash .urban construction waste,gangue waste,inferiorsoil
Brick sample:
Brick Making Process:
ON--Site:
It is long wear-resisting and long service life for reamer ,the clay cylinder lining ,neck ,outlet , all adopted high antifriction metal material.
.
Service policy:
1. Before sales: 1>the device type
2>for customer training and technical personnel
3>according to customer request, design and manufacture products
4> the company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
2. Medium-sales:1> Acceptance of the product
2> Assist client protocol construction scheme
3. After-sale
On-site training personnel
Appoint special after-sale service staff ,arrived at the scene guide clients installation and commission.
As a professional supplier in China to manufacture clay brick making machine , it is our pleasure to cooperate with customer from all over the world . If you have any comment regarding our brick making machine ,or any technical question in the brick making product line ,please feel free to contact us ,we would love to help you
Experience
We are one of the few brick machines manufacturing companies which appoint by the Chinese Brick&Tile Association. We have had some customers in India, Bangladesh and other countries, and even now we have helped one customer building the tunnel kiln in Bangladesh. And we sold many machines to Bangladesh, India, Nepal, Vietnam and other countries, and some of them even buy our machines twice or more. So we can promise you the good quality and perfect after-sale service .
Identification
We have Approval/certification for clay brick making machine:ISO9001:2008,GB/T 19001-2008.
Technical data:
|
Item
Data |
Measuring unit |
75/75-4.0 |
70/70-4.0 |
60/60-4.0 |
55/55-3.8 |
50/50-3.0 |
45/45-3.0 |
40/40-2.0 |
35/35-1.5 |
|
Production capability |
standard brick packs/h |
20000-26000 |
20000-24000 |
18000-22000 |
16000-20000 |
14000-18000 |
12000-16000 |
10000-14000 |
8000-12000 |
|
Reamer diameter |
mm |
750 |
700 |
500 |
500 |
500 |
450 |
400 |
350 |
|
Extruding pressure |
MPa |
≤4.0 |
≤4.0 |
≤4.0 |
≤3.8 |
≤3.0 |
≤2.0 |
≤2.0 |
≤1.5 |
|
Forming liquid water content |
% |
14-16 |
14-16 |
14~20 |
14~20 |
14~20 |
14~20 |
16~22 |
18~22 |
|
Vacuum |
MPa |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
Power |
Kw |
110/250/15 |
90/220/15 |
75/160~185/15 |
75/132~160/15 |
55~75/110~132/15 |
55/90~110/15 |
45/75~90/15 |
37/55~75/15 |
