CE/SGS certificated PVC plastic sliced making line was specially designed for the PVC sheet making with thickness from 0.5-3mm and with from 500-1800mm.
CE/SGS certificated PVC plastic sliced making line purchase the conical twin screw extruder which can feeded the PVC powder raw material directly.
Major parts of the CE/SGS certificated PVC plastic sliced making line as following:
NO. |
Major Parts |
Technology Information |
1 |
Screw loading machine |
2.2KW driving motor, screw loading method, stainless steel loading screw and barrel |
2 |
PVC mixing unit |
SRL-Z300/600 model, 40/55/11KW driving motor, stainless steel barrel; self-friction heating; recycling water cooling |
3 |
Spring loading machine |
1.5KW driving motor,alloy steel spring loading, stainless steel loading barrel and storage tank |
4 |
SJSZ-80/156 conical twin screw extruder |
55KW driving motor,38CrMoAlA screw and barrel,hard surface gear box, cast aluminum heating device |
5 |
Sheet extruder die head |
1220mm mould house width,stainless steel heating bars, T type mould design |
6 |

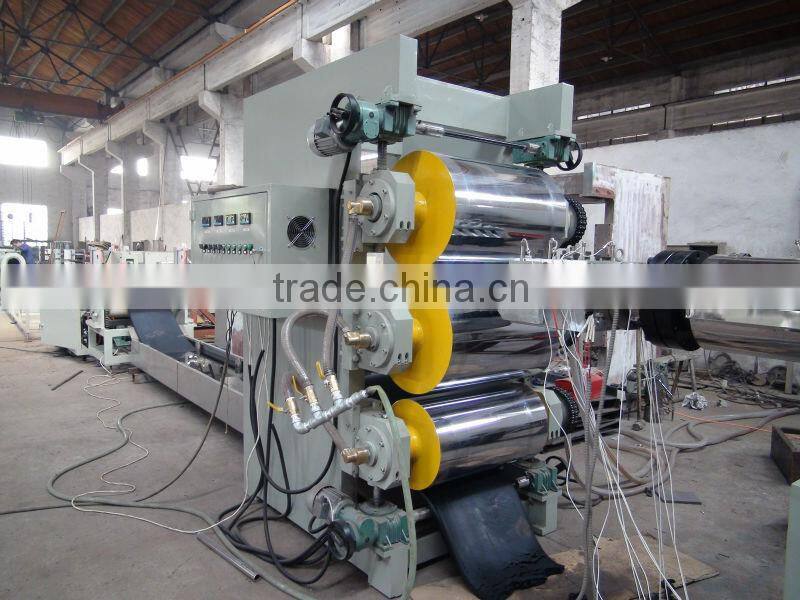

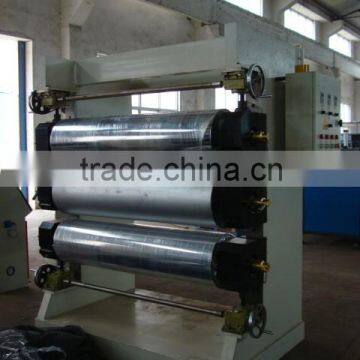

3 rollers calendar machine |
Vertical roller lining type,2.2KW,3pcs driving motors |
7 |
Cooling table and edge cutting device |
6meter length and fan cooling |
8 |
Sheet haul off machine |
2 rollers haul off model, rubber rollers |
9 |

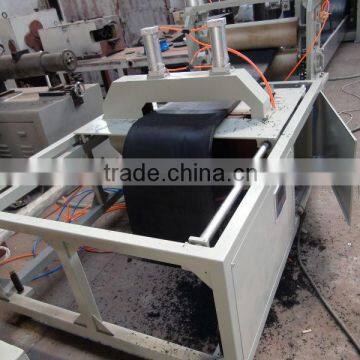

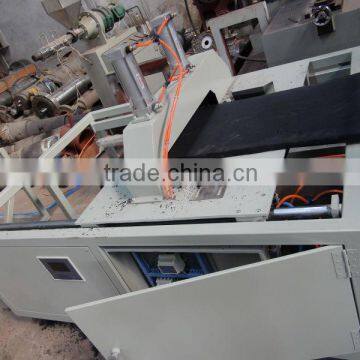

Sheet cutting machine |
Air cylinder control cutting processing |
10 |

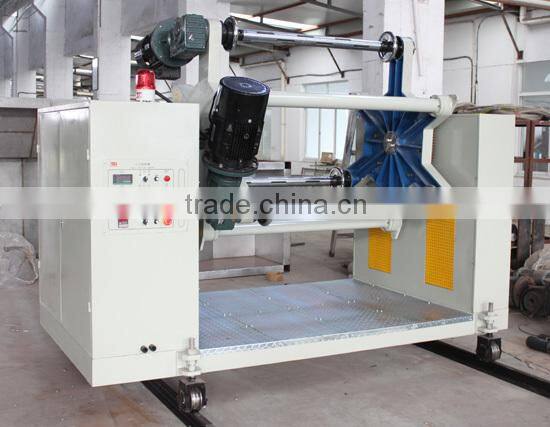

Sheet winding machine |
Torque motor winding machine |
- Packaging: poly-wooden case, no need fumigate; bubble films packaging.We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
