Specifications
ultrasonic plastic welding machineTechnology Data:
Model: NK-S1520
Frequency: 15 KHz
Overview:
We professionally produce standard plastic welding machine, such as 2600 W – 3200 W plastic welding machine, 4200 W – 5600 W high power plastic welding machine and other precision welding equipment: double-head plastic welder, six-head plastic welder, hollow plastic box welding machine, fence tube welding machine, hot plate plastic welding machine, rotary plastic welding machine, car door welding machine, car dashboard welding machine, car bumper welding machine, we also design and produce other non-standard automated plastic welding equipment for our customer.
15 KHz normative ultrasonic welding machine conducts ultrasound to the plastic parts by the welding head melts the point contact between the parts, creating a joint. This technology has the advantages of rapid and strong, more importantly, it can make the manufacturing automatic. Ultrasonic welding machine can be used for welding, implanting, forming, riveting, spot welding, removaling, and sewing.
Technology Data:
Model: NK-S1520
Frequency: 15 KHz
Voltage: 220 V
Power: 2000 W
Dimensions: 800*1000*1850 mm
Capacity: 10-20 times/min
Welding Area: Φ 220 mm
Air Pressure: 4-6 kg/cm2
Weight: 80 Kg
Features of ultrasonic plastic welding machine:
1. Japanese NTK transducer, imported cylinder, stronger power and more stability;
2. Frequency can display automatically when machine works;
3. Dial indicator scale display, mould frames accurately and quickly;
4. Digital control, time accuracy can be millisecond;
5. Base level condition, mould frames quickly.
Working Detail:
1.Capacity: welding time is only 0.01-9.99 second
2.Strength: can bear more pressure and tension
3.Quality: finished product is hermetic sealing
4.Cost: non bolt or glue, reduce labor and costs
Machine Details:

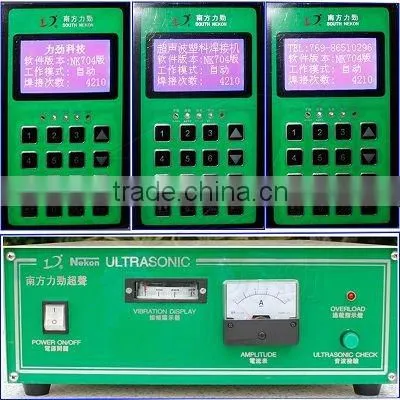

1.Computer control system of dual language, high anti-interference ability, time accuracy is up to 0.01 seconds and easy to adjust;Display of swing and electricity makes the adjusting easy and intuitionist.
2.Twisting the screws around to adjust the level of the mould, convenient and ease to operatre;
3.Machine architecture with heavy machine locking device, the overall structure is solid, stable, and not easy to crack and degree of backwards is only 1/6 of the other locking device.

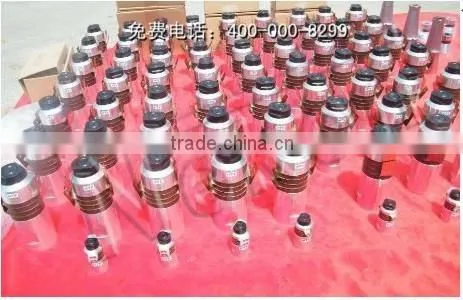

4.Original Japanese Imported transducer with strong, stable output;
Applications:
Ultrasonic welding machine is widely used in automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry, and so on.
