Specifications
extrusion blow molding machine1.for big containers from 500ml to 5000L
2.accumulator head and special view line

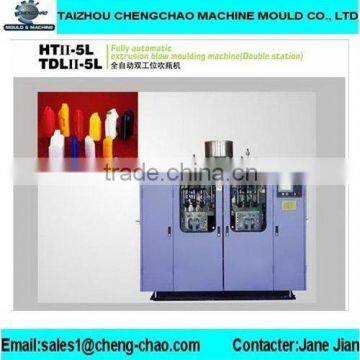

HT-5L Extrusion blow molding machine
NAME |
SUPPLIER |
SOLENOID VALVE |
TAIWAN AIRTAC |
NAME |
SUPPLIER |
OIL PUMP |
HITECH TAIWAN |
VALVE |
HITECH TAIWAN |
OIL PIPE, JOINT , |
TAIWAN LIANHUI |
SEALING |
HONG KONG SIDAXING |
NAME |
SUPPLIER |
MICROCOMPUTER CONTROL SYSTEM PLC |
JAPAN MITSUBISHI PLC |
|
TOUCH SCREEN (COLOR SCREEN) , |
TAIWAN HITECH |
CONDUCTOR |
FRANCE SCHNEIDER |
AIR SWITCH |
MERIINGERIN |
MOTOR |
SIEMENS BEIDE ASYNCHRONOUS MOTOR |
POWER RESOURCE |
TAIWAN MEAN WELL |
FREQUENCY CHANGER |
TAIWAN DELTA B-SERIESB- |
MAX.PRODUCT VOLUME 5 L
DRY CYCLE 1000PCS/HR
SCREW DIAMETER 22-30MM
SCREW DRIVE POWER 15-18.5 KW
SCREW HEATING CAPACITY 5.04-6.7KW
NO. OF HEATING ZONE 3-4
OUTPUT OF HDPE 65-80 KG/HR
OIL PUMP DRIVE POWER 7.5KW
CLAMPING FORCE 60KN
PLATEN DISTANCE 148-508MM
MAX.SIZE OF MOLD 370*390MM
MAX.DIE DIAMETER 145MM
DIE HEAT CAPACITY 2.5KW
NO OF HEATING ZONE 3
CENTRAL DISTANCE OF BIE DIE 160MM
MAX.DIE DIAMETER 80MM
HEATING CAPACITY 2.88KW
BLOWING PRESSURE 0.6MPA
AIR VOLUME 0.4M/MIN
COOLING WATER PRESSURE 0.2-0.3 MPA
WATER CONSUPUMTION 50L/MIN
SIZE OF MACHINE 2.85*1.77*2.58M
WEIGHT OF MACHINE 6TONS
