RA-30 PU Spraying Machine
- 500 Set / Sets per Month
- China Base Port
- T/T Credit Card PayPal
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | RUNNING | Model Number: | RA-30 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
RA-30 PU Spraying Machine used for:1. Wall insulation;
2. Roof insulation;
3. Water tank insulation etc.
RA-30 PU Spraying Machine
Application:
1. Building wall insulation;
2. Building roof waterproof and insulation;
3. Construction seam filling;
4. Pipeline insulation;
5. Solar water tank insulation;
6. Car roof insulation etc.
Specifications:
Model | RA-30 polyurethane spray foam machine |
Standard configuration | Mainframe 1 set |
Self-cleaning spray gun 1 set | |
Feeding pump 2 sets | |
Heating hose 15m | |
Feeding pump hose 2.5m | |
Gun hose 1.5m | |
Rings and Tools 1 set | |
Technical Data | The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Max working pressure 20Mpa | |
Max fluid temperature 80ºC | |
Max output 9kg/min | |
Whole power 9000W | |
Voltage 2-ph 220V 50Hz/3-ph 380V 50Hz | |
Clean mode Self-clean by air | |
Max heating hose length 75m | |
Pneumatic source 0.8Mpa 1m³/min | |
Body size (L×W×H) 600×600×1180mm | |
Net weight 140kg |

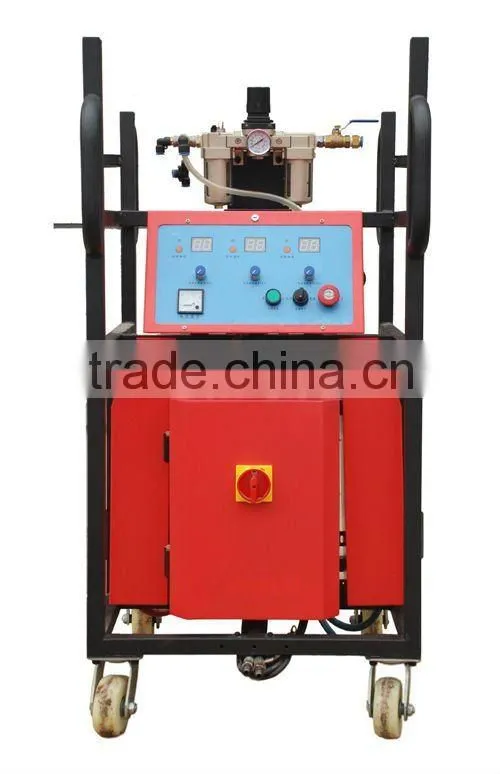

Mainframe
Feeding Pump
Spray Foam Gun

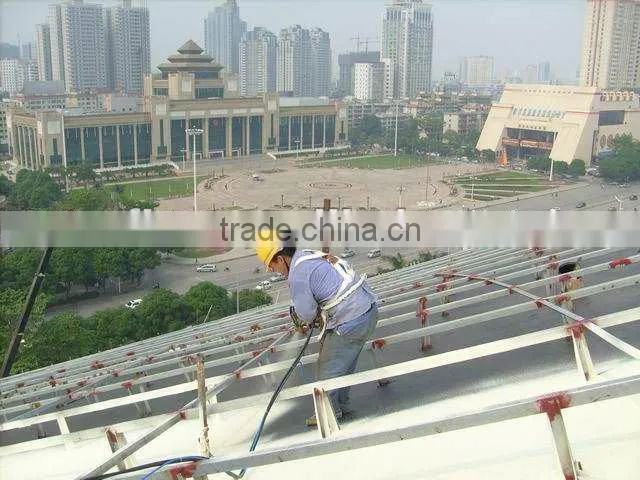

Working
