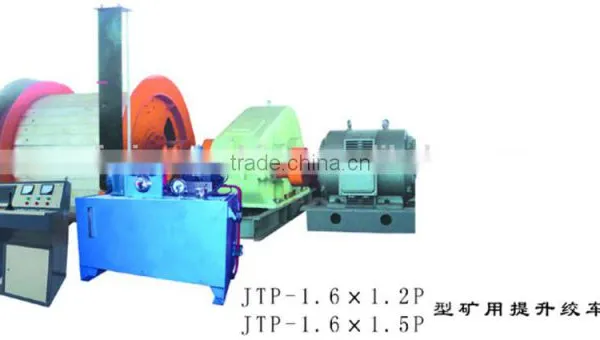

Help CenterJTP Series Mining Explosion Proof Electric Hoist Winch
Related Products
-
Single Wire Rope Mine Hoist With Low PriceUS$ 65,000 - 70,000MOQ: 1 Set -
Full Automatic Control Mining Hoist SystemUS$ 50,000 - 55,000MOQ: 1 Set
-
Underground Mineral Usage Hoist Winder for SaleNegotiableMOQ: 1 Set
-
All Kinds of Electric Mini Tugger Made in ChinaNegotiableMOQ: 1 Set
-
Factory Price Underground Mining Equipment Used in CoalNegotiableMOQ: 1 Set
The Technical Data of JTP Series Mining Explosion Proof Electric Hoist Winch
Model |
Drum |
Steel wire rope |
Lifting Height |
Steel wire rope |
Electric motor |
Overall dimension |
Maine engine |
|||||
Qty |
diameter |
width |
The first |
The second |
The third |
Max diameter |
Rotate speed |
Power |
||||
Unit |
mm |
KN |
m |
mm |
r/min |
kw |
mm |
kg |
||||
JTP-1.6*1.5 |
1 |
1600 |
1500 |
45 |
226 |
491 |
767 |
26 |
990 |
110 |
5780*2800*1950 |
13823.2 |
JTP-1.6*1.5P |
1 |
1600 |
1500 |
45 |
226 |
491 |
767 |
26 |
990 |
110 |
5780*2800*1950 |
13823.2 |
JTP-1.6*1.2 |
1 |
1600 |
1200 |
42 |
251 |
505 |
786 |
20 |
975 |
132 |
6400*5400*2900 |
13538 |
JTP-1.2*1.2 |
1 |
1200 |
1200 |
30 |
168 |
371 |
582 |
20 |
967 |
55 |
4949*2680*2600 |
8711.2 |
JTP-1.2*1.2P |
1 |
1200 |
1200 |
30 |
168 |
371 |
582 |
20 |
967 |
55 |
4949*2680*2600 |
8711.2 |
JTP-1.2*1 |
1 |
1200 |
1000 |
21 |
218 |
439 |
680 |
14 |
967 |
55 |
4111*2680*1450 |
10035 |
Product Description
Product Description
.This series hoisting winch are mainly used for mine shaft and inclined shaft to lift coal,ore,
waste rock as well as lifting personal,materials,tools and equipments. The principle axis unit
used split or intergral-type flexible struction drum and the drum suffers force uniformly with big strength. Disc
brakes are rear-mounted fuel tank with flexible action. The hydraulic can delay secondary brake,and it
can be automatically released in wellhead .Double -drum hoisting machine has rope-adjusting cluth with radial teeth.Transmission parts can be equipped with planetary reducer
or parallel axis hardened reducer.Electrical parts has necessary protection and interlock device,
and user can choose PLC electrical controller and frequency speed-changing electrical controller.Dynamic braking is also available on request.
.I will appreciate much if you can give us some details below.
1. Usage of machine (mine or something else)
2.Lifting workers or materials
3.The loading capacity
5.Depth of mine(angle if inclined)
6.Dia. and width of drum
7.Dia. of the rope
8.Lifting speed you want (m/s)
9.The power and voltage of motor
10.The electrical control system.
