The Technical Data of underground mineral usage hoist winder for sale
Model |
Drum |
Steel wire rope |
Lifting Height |
Steel wire rope |
Electric motor |
Main shaft device overall dimension |
Maine engine |
|||||
Qty |
diameter |
width |
The first |
The second |
The third |
Max diameter |
Rotate speed |
Power |
||||
Unit |
mm |
KN |
m |
mm |
r/min |
kw |
mm |
kg |
||||
|
JK-2.0×1.5 JK-2.0×1.5P JKB-2.0×1.5 JKB-2.0×1.5P |
1 |
2000 |
1500 |
60 |
295 |
586 |
914 |
25 |
740 |
185 |
2540x3500 |
25200 |
980 |
220 |
|||||||||||
|
JK-2.0×1.8 JK-2.0×1.8P JKB-2.0×1.8 JKB-2.0×1.8P |
1 |
1800 |
366 |
730 |
1132 |
740 |
185 |
2540x3800 |
26100 |
|||
980 |
220 |
|||||||||||
|
JK-2.5×2.0 JK-2.5×2.0P JKB-2.5×2.0 JKB-2.5×2.0P |
1 |
2500 |
2000 |
90 |
403 |
802 |
1245 |
31 |
590 |
260 |
3040x4000 |
36500 |
740 |
315 |
|||||||||||
|
JK-2.5×2.3 JK-2.5×2.3P JKB-2.5×2.3 JKB-2.5×2.3P |
1 |
2300 |
473 |
944 |
1460 |
590 |
260 |
3040x4300 |
37700 |
|||
740 |
315 |
|||||||||||
JK-3.0×2.2 |
1 |
3000 |
2200 |
130 |
447 |
887 |
1378 |
37 |
740 |
560 |
3560x4500 |
52540 |
|
JK-3.0×2.5 JK-3.0×2.5P JKB-3.0×2.5 JKB-3.0×2.5P |
1 |
2500 |
518 |
1030 |
1595 |
590 |
450 |
3560x4800 |
54640 |
|||
740 |
560 |
|||||||||||
|
JK-3.5×2.5 JK-3.5×2.5P JKB-3.5×2.5 JKB-3.5×2.5P |
1 |
3500 |
2500 |
170 |
513 |
1017 |
-- |
43 |
590 |
630 |
4060x4900 |
76740 |
740 |
800 |
|||||||||||
|
JK-3.5×2.8 JK-3.5×2.8P JKB-3.5×2.8 JKB-3.5×2.8P |
1 |
2800 |
584 |
1161 |
-- |
590 |
630 |
4060x5200 |
79540 |
|||
740 |
800 |
|||||||||||
Application: Pull Lift Chain Kone Hoist Hoist with Electric Hoist Switch

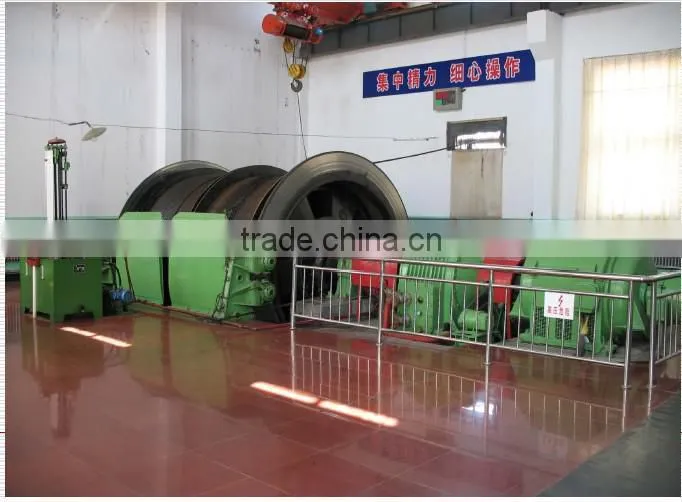

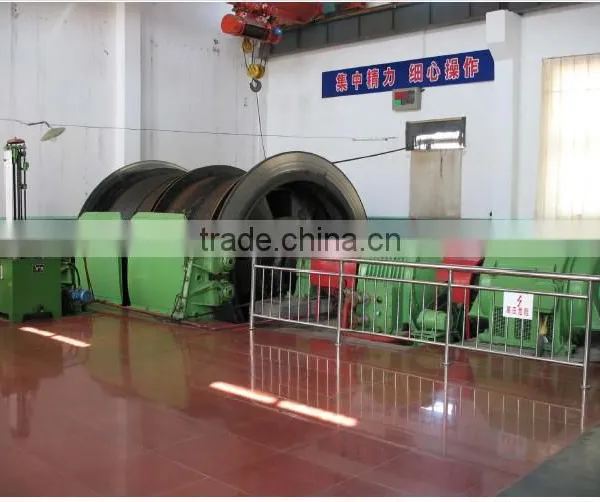

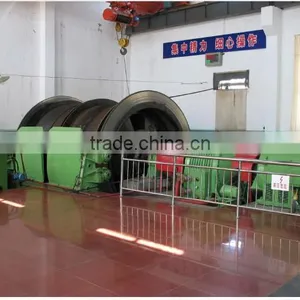

The products of this series are used to lift materials, equipments and people in coal mine ,iron mine, metal mine and non metal mine inclined roadway and small shaft.
Working Principle:

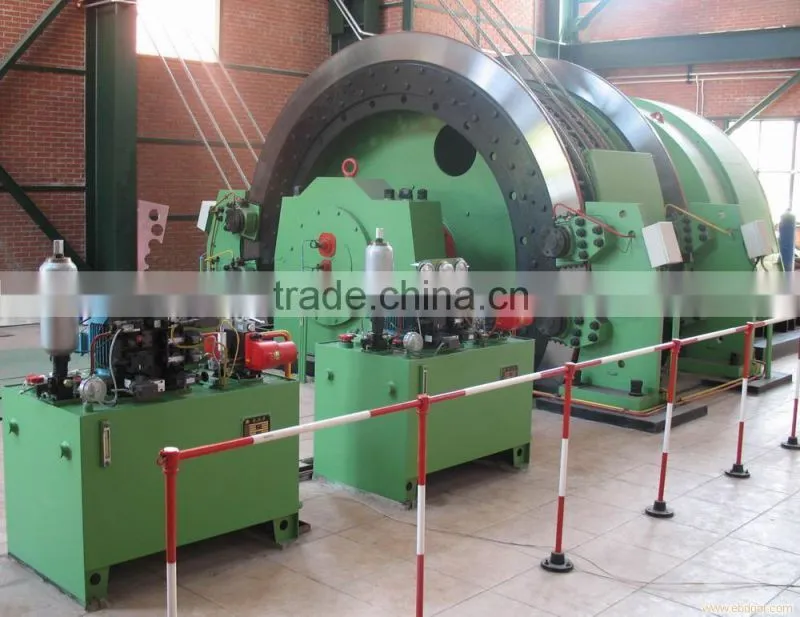

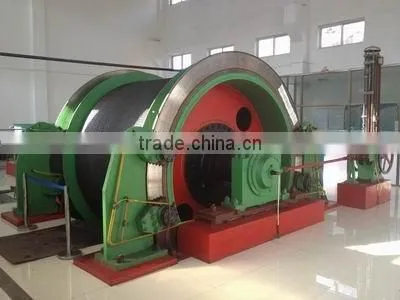

The motor transmits power to the drum which wrapped by wire rope through the reducer to lift and lower the container. The speed is adjusted by electric drive. the braking of disc brake via hydraulic and electric system.

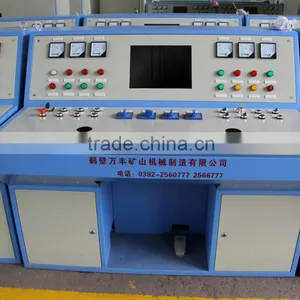

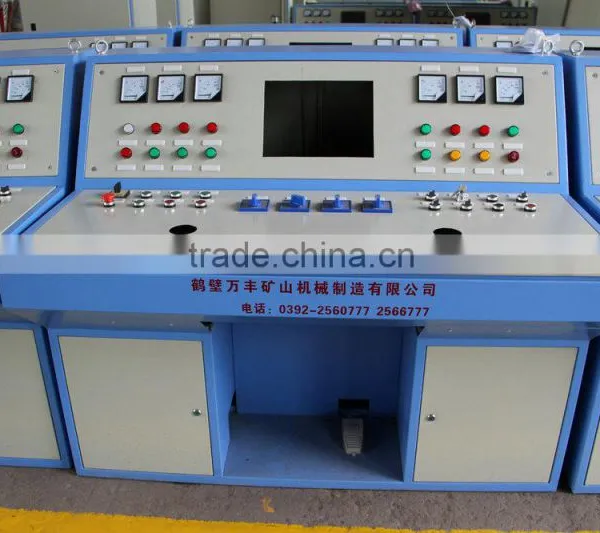

Position indicator system shows the depth of the container. The control system integrating the motor, electric and hydraulic pressure supervises and protects the whole equipment through a variety of sensors and control elements;.
Internal and external information transmission is carried out by the computer and the internet technology.
ABOUT US
Hebi wanfeng Mining Machinery Manufacturing Co.,ltd is the biggest and strongest enterprise in the local place of henan province. The company founded in 1985, registered capital is 115million . The group total has 300 employees, include more than 30 technicians . We have electrical workshop, forging workshop, machining workshop, plate-workshop, and assembly workshop. Wanfeng company realized the integration of manufacturing and marketing to supply high quality mining machinery products and best service all over the world.
COMPANY IMAGE
WORKING TEAM
Wanfeng Culture
Quality Policy:
Quality First ,Customer First
Faith is root, Profession is the first
Enterprise Spirit:
Honesty, Devotion, Striving, and development
WANFENG MINING MACHINERY WORTH YOUR CHOICE!
WE WELCOME YOUR CONTACT AND VISIT!
