Wave Solder Outfeed Conveyor
US$ 5000.00 - 6000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, ESD CONVEYOR
Material:
Other, ESD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wave Solder Outfeed Conveyor for SMT Assembly LineUS$ 5000.00 - 6000.00MOQ: 1 Set -
DIP Cooling Conveyor for SMT Assembly LineUS$ 5000.00 - 6000.00MOQ: 1 Set
-
PCB Exist Conveyor for SMT LineUS$ 5000.00 - 6000.00MOQ: 1 Set
-
Wave Solder Machine Conveyor UnloadUS$ 5000.00 - 6000.00MOQ: 1 Set
-
DIP Cooling Conveyor/PCB Exist Conveyor/wave Solder Outfeed Conveyor for SMT Assembly LineUS$ 5000.00 - 6000.00MOQ: 1 Set
Condition
New
Type
Other, ESD CONVEYOR
Material
Other, ESD
Material Feature
Other, ESD
Structure
Belt Conveyor
Load Capacity
100%
Place of Origin
Guangdong, China
Brand Name
JAGUAR
Model Number
OUC 400
Voltage
220V
Power(W)
15W
Dimension(L*W*H)
1200*490*1200(mm)
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Wave solder out feed conveyor
Product features:
1.It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.

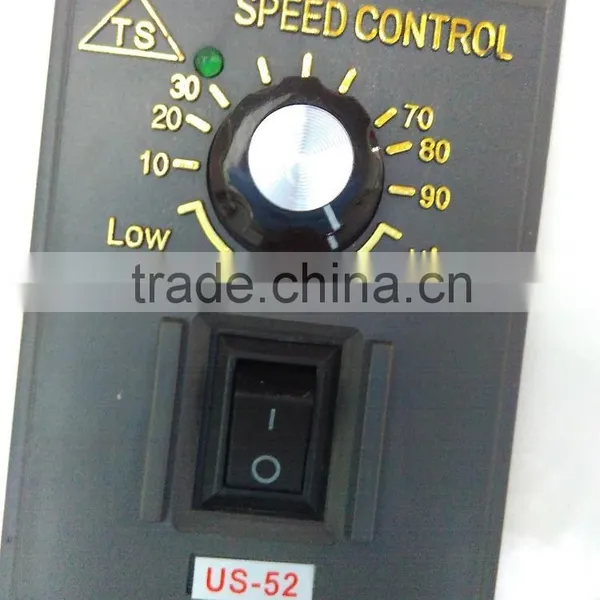

2.Transmission speed, transfer height and track angle can be adjusted.

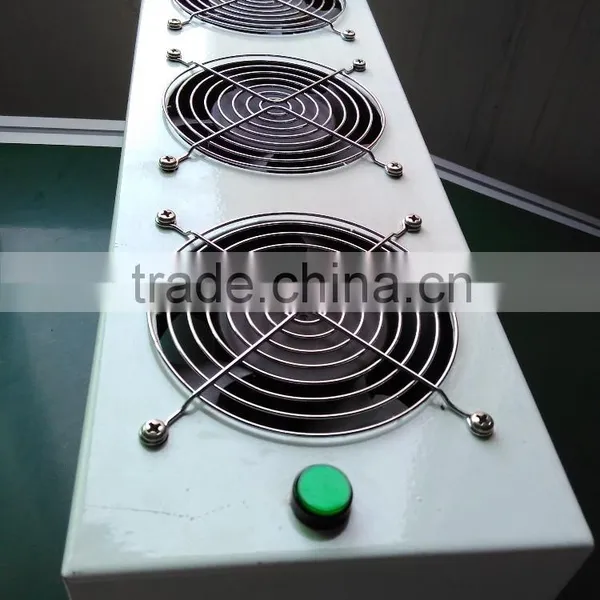

3.Cooling fan can be installed so that it can protect the PCBs or the component.
4.Special belt and track, transmission smooth, and work stable and reliable.
Specification:
Model |
OUC 400 |
Demensions(L×W×H) |
1200×490×1200(mm) |
PCB width |
0~400(mm) |
PCB direction |
L-R |
Conveyor speed |
0~4000(mm)/Min |
Motor |
1P AC220V 50/60HZ 15W |
Power supply |
1P AC220V 50/60HZ |
Conveyor Height |
750-1200mm(adjustable) |

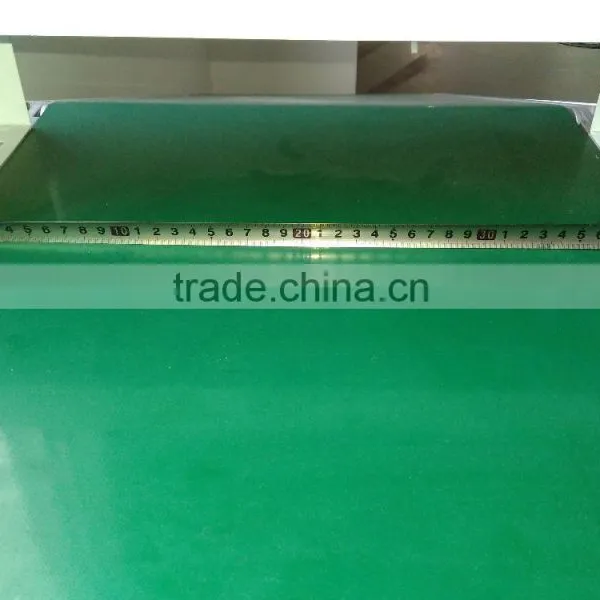

Belt Material |
ESD Belt |
Conveyor length |
400±800(mm) |
Weight |
Approx.48Kg |
Our Services
Shenzhen Jaguar Automation Equipment Co.,Ltd is one of the leaders in SMT machine in China.
Then what we can do for you if you want to set up a SMT factory?
1. we can provide full SMT solution.
2. we can provode you with top technical support.
3. we have enrich experience on SMT factory set up.
4.we can provide the best professional tech service.
5.we can help you to deal with all the trouble about SMT.
