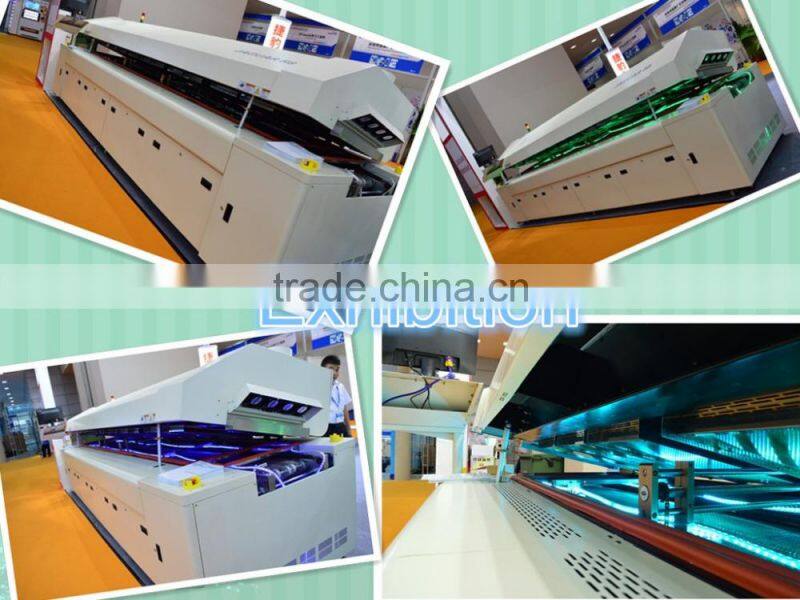

Reflow Oven/Reflow Soldering Machine for SMD Soldering Process M8
Specification:
Model |
JAGUAR M8 |
|
|
Heating System |
Number of heating zones |
UP 8/BOTTOM 8 |
Number of cooling zones |
1 |
|
Length of heating zones |
2900MM |
|
Heating mode |
hot air |
|
Cooling Mode |
Forced air |
|
|
Conveyor System |
Max. Width of PCB |
350mm |
Mesh belt width |
400mm |
|
Transmission Direction |
L→R(or R→L) |
|
Transmission Net Height |
880±20mm |
|
Transmission type |
Mesh and chain |
|
Range of rail width |
0-300mm |
|
Conveyor speed |
0-1500mm/min |
|
Auto/manual Lubrication |
standard |
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
Components high |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5 line 3 phase 380V 50/60Hz |
Total power |
40kw |
|
Starting power |
38kw |
|
Normal power consumption |
4KW |
|
Warming time |
About 20 mins |
|
Temp. setting range |
Room temperature-300℃ |
|
Temp. control method |
PLC&PC control & SSR driving |
|
Temp. control precision |
±1℃ |
|
Temp. deviation on PCB |
±2℃ |
|
Data storage |
Process Data and status storage(80GB) |
|
Nozzle plate |
Aluminum Alloy Plate |
|
Abnormal Alarm |
Abnormal temp. (extra-high/extra-low temp.) |
|
Board dropped alarm |
Tower light:Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
4300×1000×1490mm |
Weight |
900KG |
|
Color |
Computer gray |
|
Mahcines are delivered in polywood case with vacuum package.
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.
JAGUAR Automation - one of the well-known lead-free smt machines manufacturers in China, Founded in 2009, headquartered in Shenzhen.
JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering machines and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow ovens, A8 Series of lead-free reflow solder ovens and N series wave soldering equipments.
Jaguar products: reflow oven, reflow machine, reflow soldering machine price,wave solder or wave soldering machines, smt chip mounter,Smt Pick and Place Machine, chip shooter, solder paste printer, stencil printer, SMT Stencil Printer, Semi-Automatic Printing machines, PCB buffer conveyor, smt machine/Smt Equipment and smt peripheral equipments.
REFLOW OVEN, WAVE SOLDERING,SMT MACHINE, SOLDER PASTE PRINTER/STENCIL PRINTER/SCREEN PRINTER
CERTIFICATIONS
Products in a glanceHonor Customers and Partners
Packaging
1 set machine, mixed order is also welcome.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
Contact Me Immediatly with information listed As Below:
