Home > Packaging & Printing > Packing Machinery > Gluing Machine > T8 LED Tube Glue Machine With Silicone D800

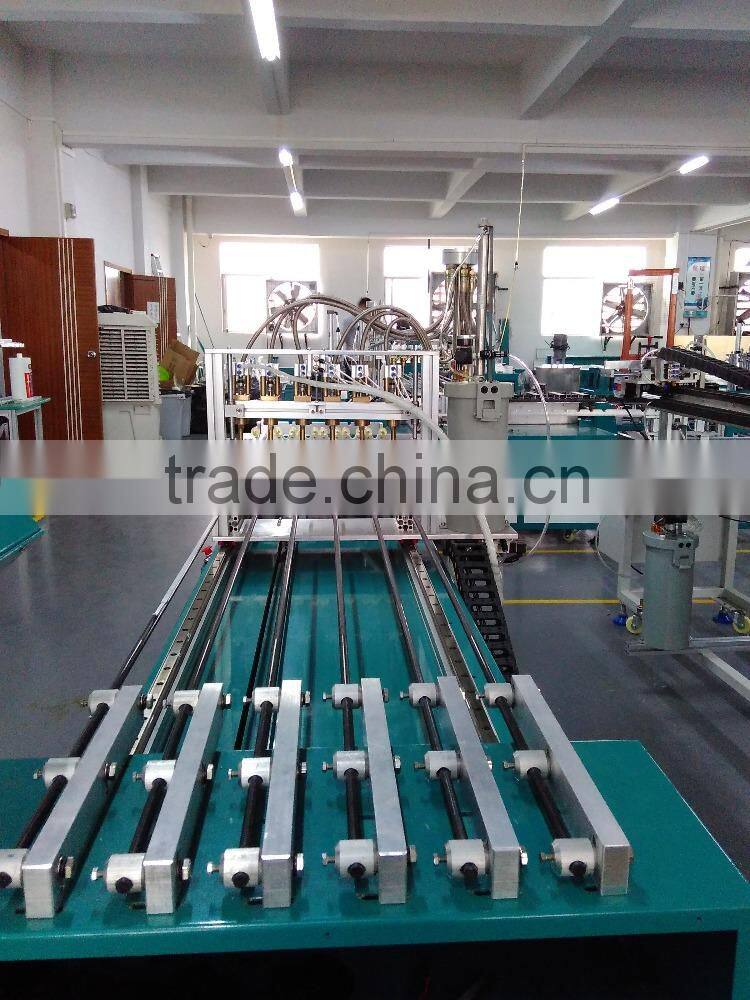

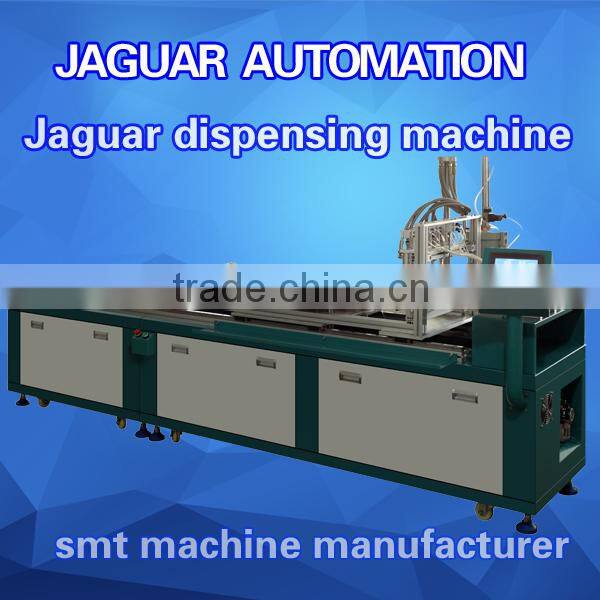

T8 LED Tube Glue Machine With Silicone D800

Name: T8 LED Tube Glue Machine With Silicone D800
Brand: JAGUAR
SKU: 108865617
Availability: InStock

T8 LED Tube Glue Machine With Silicone D800 thumbnail-1

T8 LED Tube Glue Machine With Silicone D800 photo-1

US$ 1 - 1.1 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, T8 LED TUBE

Packaging Type:

Other, T8 LED TUBE

Contact Supplier Request Quote Chat Now

Shenzhen JAGUAR Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, T8 LED TUBE

Packaging Type Other, T8 LED TUBE

Packaging Material Other, SILICONE

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage AC220V 50HZ

Power 2000W

Place of Origin Guangdong, China

Brand Name JAGUAR

Model Number D800

Dimension(L*W*H) 3200x750x1550mm

Weight 300kg

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

Specification:

Work area	Max<=1200mm
Travel speed	Max<=500mm/sec
Repeatability precision	±0.05mm
Source of power	Compressed air and auxiliary cylinder
Glue capacitance	2600ml
Glue viscosity	max<=20000cps
Control method	PLC & screen
Programming method	Teaching programming
Program capacity	At least 100 groups,4000 points/group
Drive mode	Stepping motor, mesh, and linear guide rail
Input pressure	0.5-0.8MPa
Supply power	AC220V 50HZ / 2000W
Operation environment	Humidity:20-90% Temperature:0-40ºC
Machine size(WDH)	32007501550mm
Weight	About 300kg

Glue type: 2600ml single component silicone

Packaging & Shipping

Mahcines are deliveried in polywood case with vacuum package.

Our Services

1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment
failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.

Company Information

JAGUAR Automation - one of the well-known lead-free smt machines manufacturers in China, Founded in 2009, headquartered in Shenzhen.

JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering machines and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow ovens, A8 Series of lead-free reflow solder ovens and N series wave soldering equipments.

Jaguar products: reflow ovens, lead-free reflow solder ovens, reflow soldering ovens,wave solder or wave soldering machines, smt chip mounter,Smt Pick and Place Machine, chip shooter, solder paste printer, stencil printer, SMT Stencil Printer, Semi-Automatic Printing machines, PCB buffer conveyor, smt machine/Smt Equipment and smt peripheral equipments.
