2013 Hot Plastic Blowing Mould Machine pp pe Abs

Name: 2013 Hot Plastic Blowing Mould Machine pp pe Abs
Brand: longhua
SKU: 108859999
Availability: InStock

US$ 15,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed:

Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Zhangjiagang Longhua Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name longhua

Model Number LHB45D

Voltage 220V 315V 380V 450V

Power(W) 4kw

Dimension(L*W*H) 2.2*1.7*2.2

Weight 1.8ton

Certification CE,ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

2013 hot plastic blowing mould machine pp pe abs
fully automatic
hydraulic controlling
energy saving
ce

2013 hot plastic blowing mould machine pp pe abs

It adopts advanced imported industrial control system from Japan Mitsubishi
The touching button can be chosen to be convenient in man-to-machine interaction
The machine running condition displays
The self-test function shows the condition of all of input and output points
PLD temperature computer-control
300 sets of mould parameters stored
Imported electric elements from Europe ,America and Japan

Machine Details

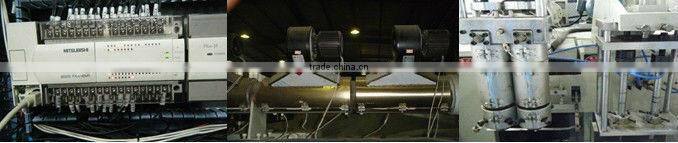

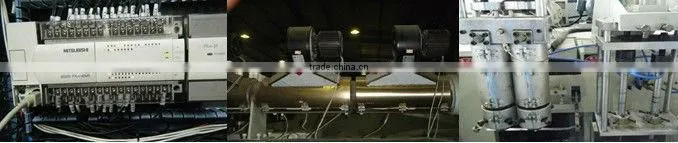

PLC Screw and Fan Die Head

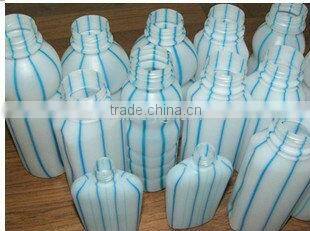

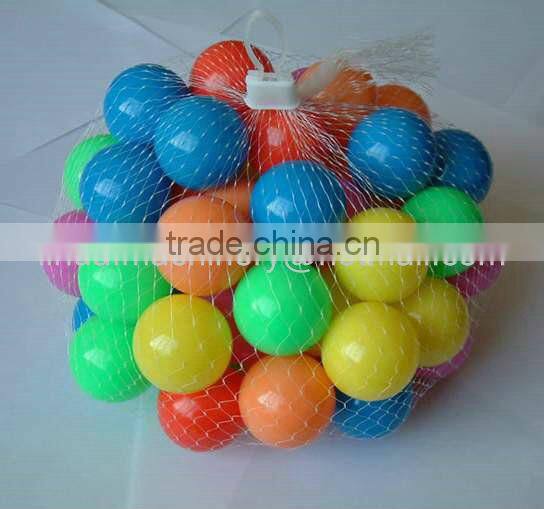

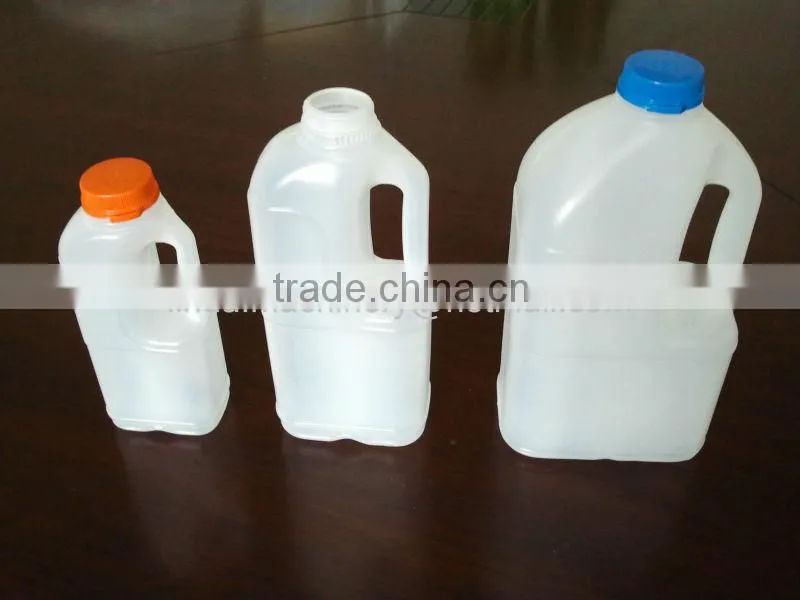

Products produced by our machine

Our Achievements

Machine Parameters

Machine Model		unit	LH45/D
Output		Pc/hr	480
Max.Product Capacity		L	1.5
Extruding System	Screw Diameter	mm	45
	Screw L/D Ratio		24
	Extruding Power	Kw	5.5
	No.of Heaters		2
	Screw Heating Power	Kw	7
	HDPE Plasticising Capapcity	Kg/Hr	18
Single Die Head	Max.Die-pin Diameter	mm	60
	Number of Heating Zone		2
	Heating Power of Die Head	Kw	3
Double Die Head	Center Distance of Die Head	mm	130
	Max.Die-pin Diameter	mm	40
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	4
Tri-die Head	Center Distance of Die Head	mm	80
	Max.Die-pin Diameter	mm	35
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	4
Tetra-die Head	Center Distance of Die Head	mm	60
	Max.Die-pin Diameter	mm	20
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	4
Clamping System	Clamping Force	KN	30
	Platen Size	mm	*280300**
	Platen Opening Stroke	mm	120-250
	Max.Mould Size	mm	*260300**
	Mould Thickness	mm	110-115
Power	Total Power	Kw	11.5
	Average Power consumption	Kw	5.5
	Air Pressure	bar	0.6
	Air consumption	m3/min	0.2/0.4
	Cooling Water Pressure	bar	3
	Cooling Water Consumption	m3/Hr	1.5/3
Machine dimension		m	*2.21.72.2*
Machine Weight		T	1.8
