pp pe Abs Hdpe Extrusion Blow Molding Machine Bottle Machine

Name: pp pe Abs Hdpe Extrusion Blow Molding Machine Bottle Machine
Brand: longhua
SKU: 108858169

US$ 30,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed:

Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Zhangjiagang Longhua Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name longhua

Model Number LHB80D-2

Voltage 220V 315V 380V 450V

Power(W) 11kw

Dimension(L*W*H) 4.0*2.3*2.7m

Weight 8ton

Certification CE,ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

pp pe abs hdpe extrusion blow molding machine bottle machine
fully automatic
hydraulic controlling
energy saving
ce

pp pe abs hdpe extrusion blow molding machine bottle machine

It adopts advanced imported industrial control system from Japan Mitsubishi
The touching button can be chosen to be convenient in man-to-machine interaction
The machine running condition displays
The self-test function shows the condition of all of input and output points
PLD temperature computer-control
300 sets of mould parameters stored
Imported electric elements from Europe ,America and Japan

PLC Screw and Fan Die Head

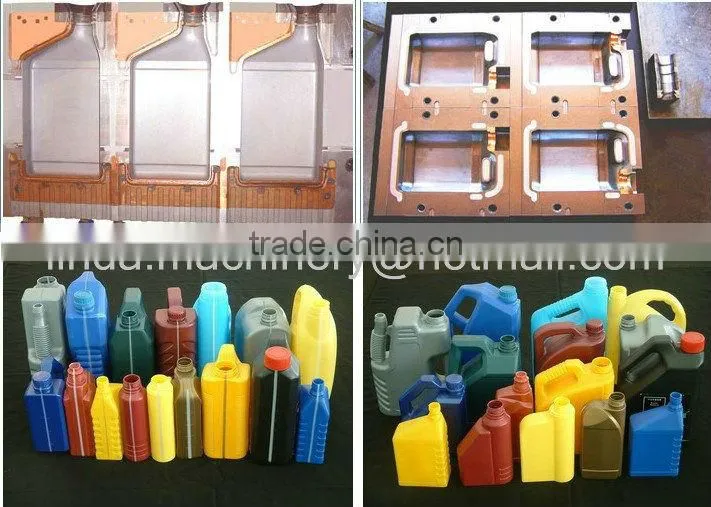

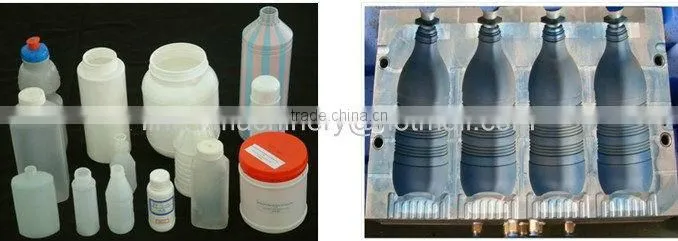

Products produced by our machine

Our Achievements

Machine Parameters

Machine Model		unit	LHB80D
Max. Product Capacity		L	5
Output		Pc/hr	700*2
Extruding System	Screw Diameter	mm	80
	Screw L/D Ratio		24
	Extruding Power	Kw	30-37
	No. of Heaters		4
	Screw Heating Power	Kw	8.2
	HDPE Plasticising Capapcity	Kg/Hr	115
Single Die Head	Max. Die-pin Diameter	mm	220
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	6.2
Double Die Head	Center Distance of Die Head	mm	120
	Max. Die-pin Diameter	mm	140
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	6.2
Tri-die Head	Center Distance of Die Head	mm	120
	Max. Die-pin Diameter	mm	75
	Number of Heating Zone		4
	Heating Power of Die Head	Kw	6.2
Tetra-die Head	Center Distance of Die Head	mm	85
	Max. Die-pin Diameter	mm	45
	Number of Heating Zone		5
	Heating Power of Die Head	Kw	7.2
Clamping System	Clamping Force	KN	110
	Platen Size	mm	290*360
	Platen Opening Stroke	mm	240-620
	Max. Mould Size	mm	450*540
	Mould Thickness	mm	155-300
Power	Total Power	Kw	55
	Average Power consumption	Kw	26
	Air Pressure	bar	0.8
	Air consumption	m3/min	1.6
	Cooling Water Pressure	Mpa	0.3-0.4
	Cooling Water Consumption	L/min	60-70
Machine dimension		m	3.53.12.9
Machine Weight		T	8
