Help CenterAutomatic Plastic Bottle Blow Moulding Machine
Related Products
-
Extrusion Blowing Moulding MachineUS$ 40,000 - 85,000MOQ: 1 Set -
High Speed Blow Moulding MachineUS$ 40,000 - 85,000MOQ: 1 Set
-
Full-auto Bottle Extrusion Blow Molding Machine pp pe AbsUS$ 40,000 - 85,000MOQ: 1 Set
-
Automatic Extrusion Blow Molding Machine pp pe Abs HdpeUS$ 30,000 - 50,000MOQ: 1 Set
-
2013 New Automatic Hdpe Extrusion Blow Molding MachineUS$ 40,000 - 85,000MOQ: 1 Set
Specifications
automatic plastic bottle blow moulding machinefully automatic
hydraulic controlling
energy saving
ce approved
automatic plastic bottle blow moulding machine
- It adopts advanced imported industrial control system from Japan Mitsubishi
- The touching button can be chosen to be convenient in man-to-machine interaction
- The machine running condition displays
- The self-test function shows the condition of all of input and output points
- PLD temperature computer-control
- 300 sets of mould parameters stored
- Imported electric elements from Europe ,America and Japan
Main parts of Machine |
Picture |
Explanation |
|
Oil Pump |
Oil pump From Japan YUKEN driving the machine |
|
|
Computer control system (PLC) |
|
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
|
Parison controllor |
|
MOOG parison Controllor Control the thickness of products |
|

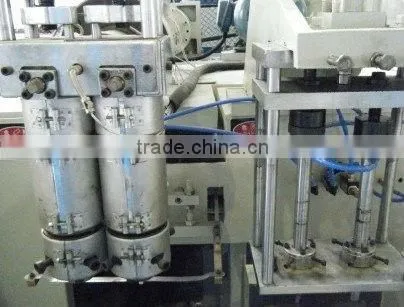

Die head |
|
|
|

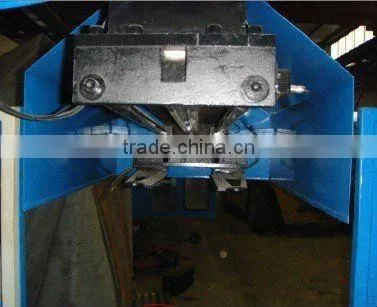

Manipulator |
|
Manipulator will Take the finished Product out automatically |
|

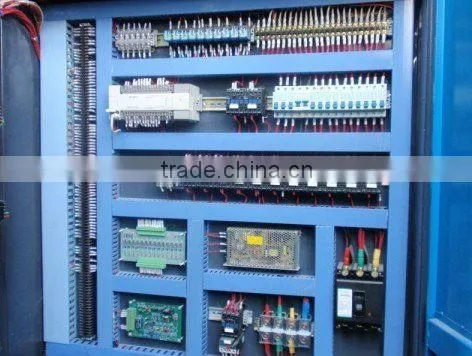

Electric Cabinet |
|
This part is the full electric components of the machine |
The main components of the machine.
Products produced by our machine
Our Achievements
Machine parameters:
Max. Product volume |
20 liters |
Output capacity |
70~90pc/h |
Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37KW |
Screw heating capacity |
18 KW |
No.of heating zone |
4 zones |
Output of HDPE |
130KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max.size of mold |
450-1000mm |
Mold stroke |
700 X 950mm |
Max.die diameter |
340mm |
Blowing pressure |
0.8 mpa |
Air Volume |
1 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |
Size of Machine |
4.4x2.6x3.1m |
Weight of machine |
9.3ton |
