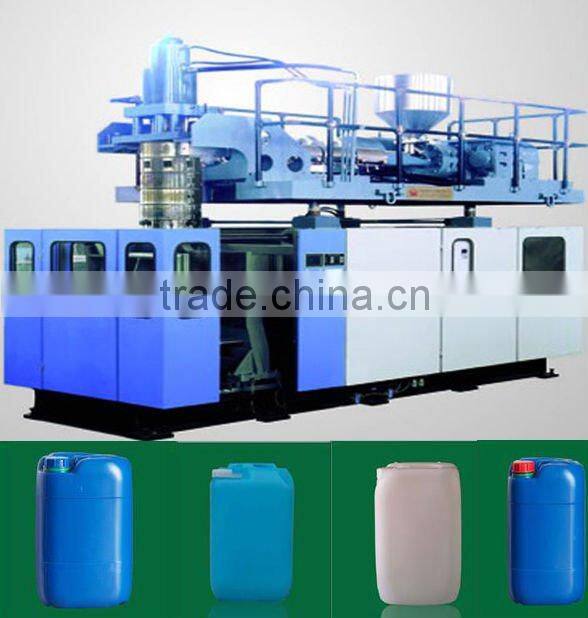

Help CenterBlow Moulding Machine for PP PC PE HDPE Containers
Related Products
-
Good Price Fully Automation Blow Moulding MachineUS$ 67,800 - 69,000MOQ: 1 Set -
200L 2 Layer Barrels Blow Molding Machine /Blow Moulding Mahcine PriceUS$ 100,000 - 120,000MOQ: 1 Set
-
200-250L Water Tank Blow Molding Machine/ / Extrusion Blow Molding Machine PriceUS$ 100,000 - 120,000MOQ: 1 Set
-
Extrusion Blow Moulding Machine PriceUS$ 100,000 - 120,000MOQ: 1 Set
-
Good Price Fully Automatic Blow Molding Machine/blow Moulding MachineUS$ 100,000 - 120,000MOQ: 1 Set
Fully automatic large bucket hollow blow molding machine sell like hot cakes
Technical parameter of LHB120N
Item |
Code item |
Standard code |
Manual |
Note |
|
Extruder (Main extruder ) |
Max capacity |
250L |
|
|
Main screw |
Ø120mm |
High efficiency mixing |
|
|
Screw L/D |
25-30 |
|
|
|
Screw material |
|
38CrMoALA |
|
|
Max.Extruder consumption |
200-280KG/hr |
|
|
|
Twisting transition method |
Electrical machinery,Gear box,AC motor |
Hard gear surface decelerator with AC regulator |
|
|
Driving motor |
75KW |
|
|
|
Screw rotate speed |
5-60r/min |
|
|
|
Ahead/back adjusting |
Yes |
|
|
|
Up/ down adjusting |
Yes |
|
|
|
Temperature control zone |
5 |
|
|
|
Heating power |
15kw |
|
|
|
Cooling for blower |
5 |
|
|
|
Cooling function |
Yes |
Cooling water |
|
|
|
Clamping unit (Mold openiing/closing unit) |
Structure |
|
With three bar timing clamping structure in high speed and high force,to achieve quality products |
|
Clamping directions |
Linear guide |
For high precise location for longer service life |
|
|
Platen dimension |
1100*1100mm |
(W*H) |
|
|
Max.mold dimension |
900*1400mm |
(W*H) |
|
|
Platen distance |
600-1400mm |
Min.-Max. |
|
|
Clamping force |
560-880KN |
|
|
|
Mold thickness stroke |
610-750mm |
|
|
|
Fixing pattern of mold |
Mold press platen |
|
|
|
Mold open/close stroke control |
Inducing Switch +moving |
Discriminate mold opening/closing end,mold opening/closing slow speed |
|
|
Light Electric Safety protect |
|
Taiwan |
|
|
Die head |
Form |
Accumulator |
First in ,First out |
|
Material |
|
38CrMoALA,inner mirror treatment |
|
|
Accumulator volume |
20-25L |
|
|
|
Output of injecting |
15-19kg |
HDPE,5502 |
|
|
Max die-pin diameter |
500-620mm |
|
|
|
Heating Method |
|
Stainless steel heating ring,precision +1% |
|
|
Temperature control zone |
6 |
|
|
|
Blow-air |
Yes |
|
|
|
Adjusting of parison thickness |
Yes |
MOOG 100 point |
choose |
|
Adjusting method of thickness |
Inner mold adjusting+5mm |
|
|
|
Side blowing |
Blow-air control speed |
|
Discriminate high/low blow air |
optional |
Bottom blowing |
Blow pin stroke control |
Inducing switch |
Discriminate blow pinup/ down end |
optional |
Blow-air control method |
|
Discriminate high/low blow air |
optional |
|
Blow pin cooling function |
Cooling water |
1-in,1-out cooling system |
optional |
|
Blow pin supporting material |
Yes |
Changeable |
optional |
|
Adjusting of blow pin position |
|
Ahead/back.left/right, up/down adjusting |
optional |
|
Mechanical hand |
Running method |
|
|
optional |
Direction control |
Linear guide |
High precise and speed |
optional |
|
Electric system |
Temperature control |
|
MITUSBISH ,PID control |
|
Load protection |
|
|
|
|
Movement control |
MITUSBISH PLC |
FX2N-80MR |
|
|
Operation interface |
Human-machine interface |
Taiwan |
|
|
Time setting |
Touch screw |
|
|
|
Oil pressure system |
Main motor |
55kw |
We can adopt Japan servo motor save energy system which can up to 60%. |
