gas station ATG/fueling staion system /liquid level meter / high accuracy manetric meter

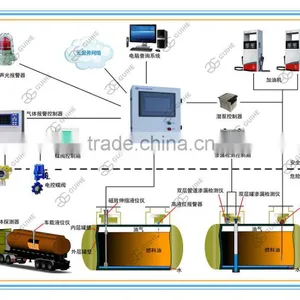

SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet
1,Industrial design, long service life, fast in running.
2,Excellent compatibility with different brand Central Control System.
3,Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
4,Information are stored in memory for future inquiry.
5,It enjoys a tank tilt compensation function
6,It can connect with explosion-proof ringer outdoors avoiding the product spilled
7,With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports
....
Item |
SYW-A |
Purpose |
To measure product level, water level and temperature |
Titles of medium |
Gasoline, diesel, kerosene, ethanol , water etc. |
State of medium |
Liquid |
Explosion-proof grade |
ExiaIIBT4 (Intrinsically safe) |
Pressure range |
-0.02Mpa~0.6Mpa |
Certificate |
PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
Temperature |
-40℃~70℃ |
Product Level Accuracy |
±0.5mm |
Water Level Accuracy |
±0.5mm |
Temperature Accuracy |
±0.2℃ |
Height Resolution |
0.023mm |
Repeatability |
±0.1mm |
Environmental Temperature Effect |
Error<0.2mm |
Vibration Effect |
Error<0.5mm |
Lowest Product Inactive Zone |
2.5'' floater-180mm |
Lowest Water Inactive Zone |
2.5'' floater-25mm |
Measured Variable |
Product level, interface level and temperature of 5 sensors and average temperature |
Probe Length |
600~3500mm |
Method of Communication |
RS-485 |
Probe Material |
1Cr18Ni9Ti |
Power Supply |
+24~26VDC |
Protection Class of Probe Canister |
IP67 |
Max Communication Distance |
1200m |
TCM-1 Touch Control Console | |
Parameters | |
Power Supply Voltage |
AC120~265V 50HZ |
Environmental Temperature |
-20℃~60℃ |
Environmental Humidity |
20%~85% |
Display Screen |
7 inch colored touch screen |
Processor / Memory |
High-speed embedded / --- |
Hard Disk / CF |
--- |
Printer |
Embedded minitype printer |
Safety Barrier |
Power safety barrier, communication safety barrier |
Power-off protection |
--- |
Size |
310x220x105 (mm) |
Functions | |
Display |
English, Graph, Colored |
System Language |
English |
Monitoring Capability |
12 tanks |
Relay |
With 2 relays |
Method of Communication |
RS-485 |
Tank Inventory Report |
Users can inquire and print inventory information at any moment. |
User-defined product type supported |
Available |
Auto Delivery |
Auto delivery monitoring, and reports are generated after delivery. Users can inquire and print reports. |
Manual delivery |
Click the “start delivery”, it will create delivery report |
Product Mass Calculation |
--- |
Print Function |
User can print all kinds of reports |
Network Function |
Inquiring data in long-distance through internet. |
Outside Explosion-proof Ringer |
Avoiding the product spilled. |
System Update |
It’s convenient to update the software and hardware. |
Control the Oil Pump |
Avoiding the product spilled and pumpdown |
Setup/Inquiry Parameter |
Users can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table |
Automatic Gauge |
Display product level, water level, temperature, volume, ullage |
Volume Table Edit |
Data input via touch screen, enjoy the import and export function. |
Volume Table Calibration |
Use the method of Guihe Volume Table Calibration to calibrate it. |
Static Leak Detection Function |
During the idle time of the gas station, user can do the leak detection for the thank.( Detection rate :0.38 L/H) |
Dynamic Leak Detection Function |
--- |
Alarm |
Audible and visual alarm and inquiry function |
Shift Exchange |
Shift exchange function and create the report. |
Interface |
With two RS-232 serial interface communication ports |
