Automatic Diesel Tank Level Meter/Fuel Level Monitoring Sensor Gauge GPS tank trucks using
- 6000 Set / Sets per Month
- qingdao shenzhen shanghai guangzhou
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | GUIHE | Model Number: | SYW-A+GH-XC-2 |
Product Description
Automatic Diesel Tank Level Meter/Fuel Level Monitoring Sensor Gauge GPS tank trucks using

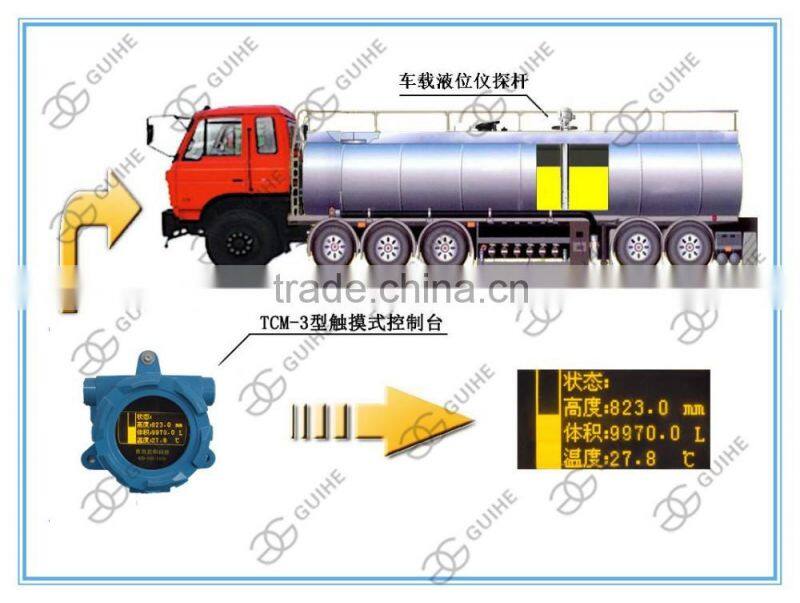

Vehicle- mounted Liquid Level Meter

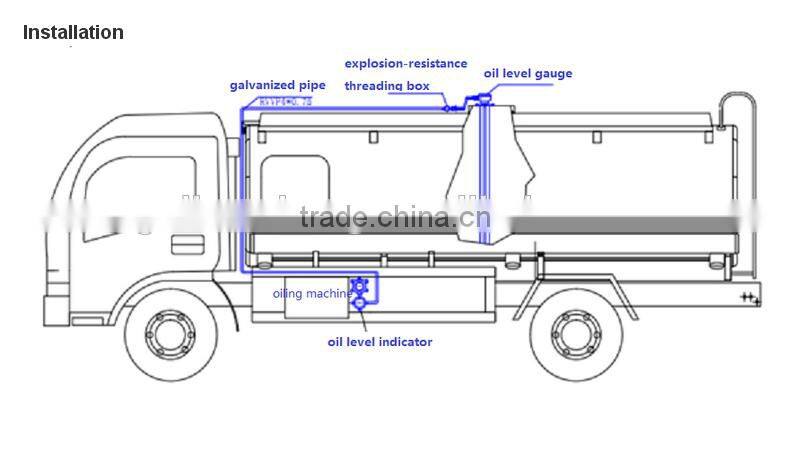

Vehicle- mounted Liquid Level Meter consist of magnetostrictive ATG probe (with stainless steel sleeve) and explosion- proof liquid level meter display and other install attachment .From the top of tank car manhole finished the probe installation , and the battery power can supply the power directly . Fit the explosion-proof liquid level meter display and vehicle-mounted tanker together, the liquid level meter data will reach to tanker system by the single lines.
performance and parameter

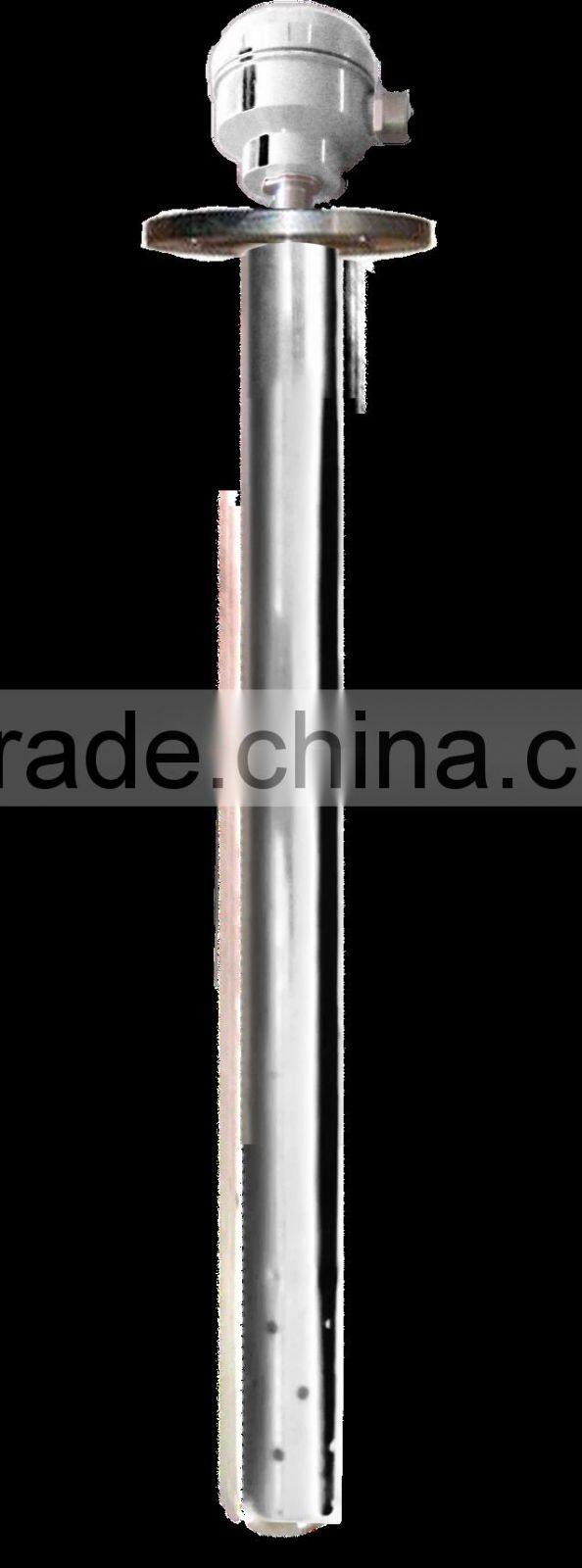

1.vehicle-mounted level meter probe
Model | SYW-A |
Power Supply | DC12~30V |
Installation | Flange installation
|
nstallation dimensions | DN80 or DN100 |
Measurement Accuracy | ±0.5mm |
Electronic Bay | 100mm |
Floater material | 2.5inch stainless steel floater |

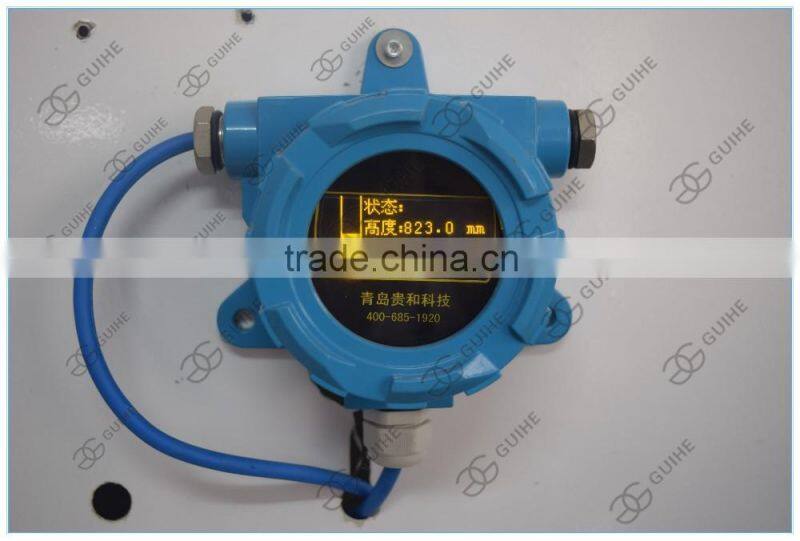

2,Explosion-proof level meter displayer
Model | GH-XC-2 |
Power Supply | DC12~30V |
Work temperature/ Humidity | -40℃~60℃/20%~85% |
Display | OLED display |
Guard Grating | Power guard grating Communication guard grating |

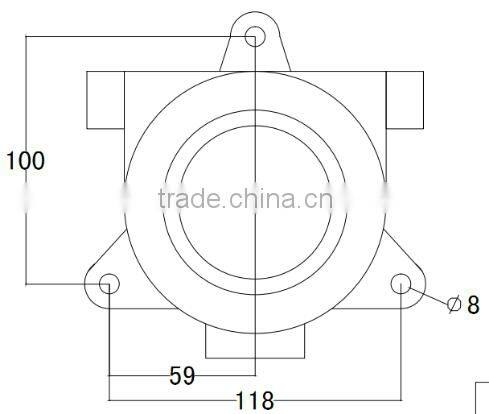

Boundary Dimension | 118x100mm |
Show/input mode | Chinese/English, columnar graphics |
Automatic monitoring | Can simultaneous monitoring 1-2 oil tank parameters |
Autoweighing | Real-time display, temperature, oil level vacancy volume, columnar dynamic graphical display oil level changes |
Tank Capacity Table Editor | built-in memory card ,can make the copy from the computer to tank capacity table ,then use it directly |
Port | Set aside one RS-232 communication port
|
1. Delivery time is 3~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Qingdao guihe measurement & control technology co.,ltd (guihe measurement & control) is one famous factory that produce word’s advanced Magnetostrictive liquid level meter series products and oil jars of the calibration system; and supply the professional services . we specialized in the research & development , production sales for Gas station liquid level meter,Double-layer tank leakage detector,Double-layer pipeline leakage detector ,Tank car cehicle-mounted liquid level meter,Tank volume table calibration system ,High level alarm ,Human body electrostatic discharge alarm and other new products.
Our products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost-effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.
We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
1:How long will you give me the reply?
we will contact you in 1 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
as china few oldest factory ,we have our own factory ,we have professional team for research and development ,produce ,sale, and after-sale service
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,anytime ,welcome to visit our factory ,check our factory or check your order when you come to china .
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
