Fuel tank truck oil tanker tank lorry oil level meter magnetic tank gauge system ATG vehicle tank level monitoring system
Vehicle- mounted Liquid Level Meter

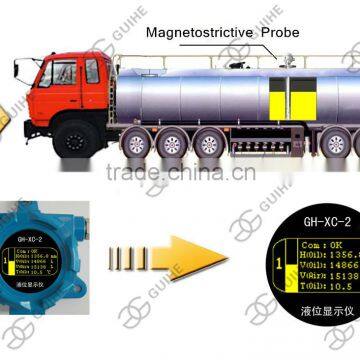

Oil Tanker Liquid Level Meter consist of magnetostrictive ATG probe (with stainless steel sleeve) and explosion- proof liquid level meter display and other install attachment .From the top of tank car manhole finished the probe installation , and the battery power can supply the power directly . Fit the explosion-proof liquid level meter display and vehicle-mounted tanker together, the liquid level meter data will reach to tanker system by the single lines.
performance and parameter
1.vehicle-mounted level meter probe
Model: SYW-A
Installation : Flange installation
Installation dimensions:DN80 DN100
Power Supply : DC12~30V
Measurement Accuracy : ±0.5mm
Electronic Bay:100mm
04 stainless steel sleeve,both bottom and top need make the single hole
Floater material :2.5inch stainless steel floater

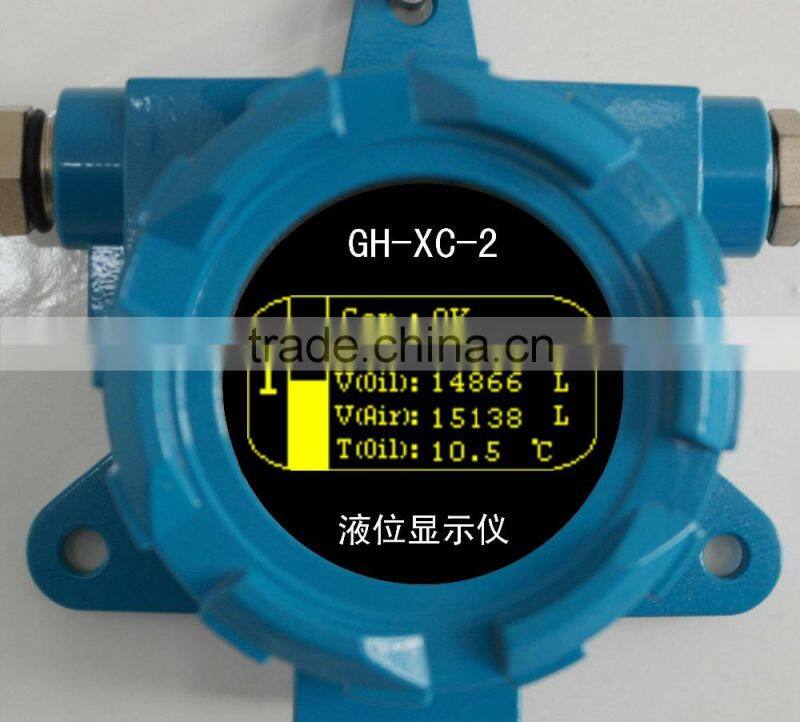

2,Explosion-proof level meter displayer
Can control 1-2 oil bunker at the same time ,with explosion-proof cage ,low temperature resistant (-40℃)
can real-time display the oil level ,temperature ,and oil tank volume
With dynamic columnar graphically display the change of oil level change ,and keys operation
Tank volume inset point by point ,the memory card support computer introduction

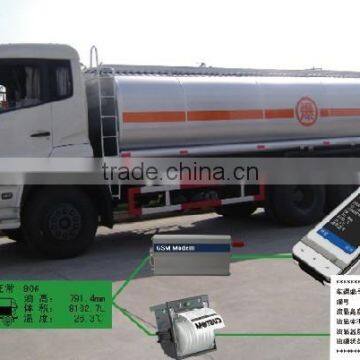

It can built-in GSM short message module,When the liquid level falls continuously,send message to remind.
Set aside one RS-232 communication port
Liquid Level Meter Console Performance Indicators
Power Supply |
DC12~30V |
Work temperature/ Humidity |
-40℃~60℃/20%~85% |
Display |
OLED display |
Guard Grating |
Power guard grating Communication guard grating |
Boundary Dimension |
118x100mm |
Show/input mode |
Chinese/English, columnar graphics |
Automatic monitoring |
Can simultaneous monitoring 1-2 oil tank parameters |
Autoweighing |
Real-time display, temperature, oil level vacancy volume, columnar dynamic graphical display oil level changes |
Tank Capacity Table Editor |
built-in memory card ,can make the copy from the computer to tank capacity table ,then use it directly |
Port |
Set aside one RS-232 communication port
|

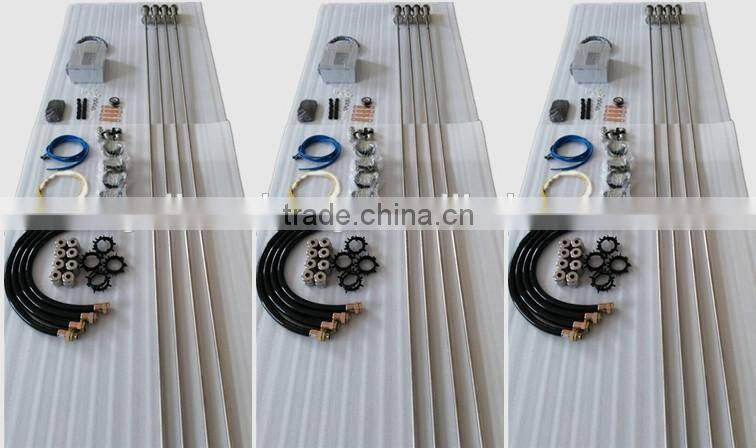

The standard configuration details
category |
name |
model |
quantity |
remark |
|
Product |
Magnetostrictive probe |
SYW-A |
1 |
DN80flange installation |

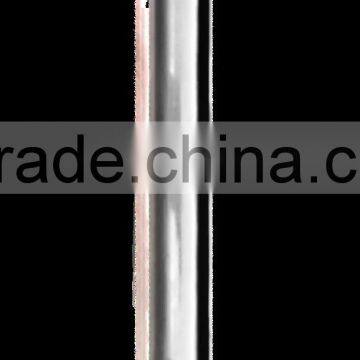

stainless protecting jacket |
304 |
1 |
according the tank size to make the oil hole at up and down place |
|
Explosion-proof level meter displayer |
GH-XC-2 |
1 |
OLED displayer,low temperature resistant (-40℃) ,can display level meter,temperature,volume,communication state.Set aside one RS-232 communication port |
|
|
attachment |
Explosion-proof hose
|
DN20 |
2 |
Connect level meter displayer |
IIB IIC e DIP |
DN20 |
1 |
Connect level meter probe |
|
Upload data line |
|
1 |
Connect tanker |
|
Bolt,ground lead and so on |
|
1 |
|
|
|
|
|
|

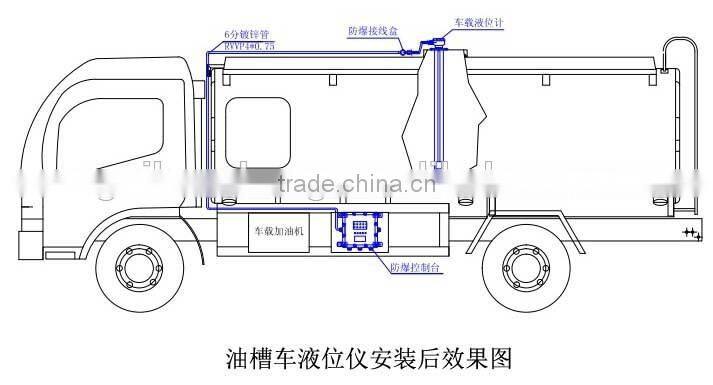

Installation Picture for vehicle-mounted level meter
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
Qingdao Guihe Measurement & Control Technology Co., Ltd is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
We are seeking cooperation opportunities with gas station equipment supplier as you, we can provide you lowest factory price.
