LED Back Stage Video Wall Concert Screen Display/die Cast Aluminum Cabinet for Event

FOB Price

US$ 1,120 - 1,190 / Square Meter

2 Square Meters(Min. Order)

Port Shenzhen Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HCM
Model Number	Energy Saving	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	Other, 3,4,5,6mm	Screen Dimension	Customized

Product Description

Related Products

Indoor stage rental led display

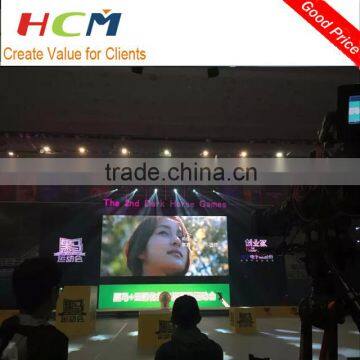

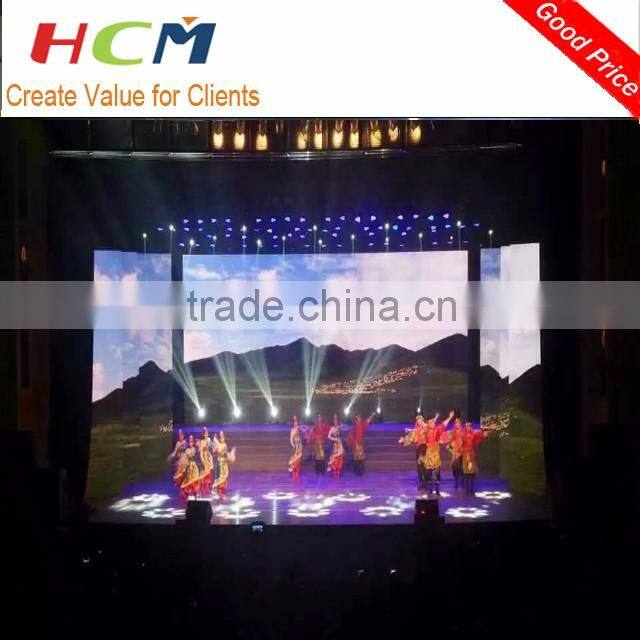

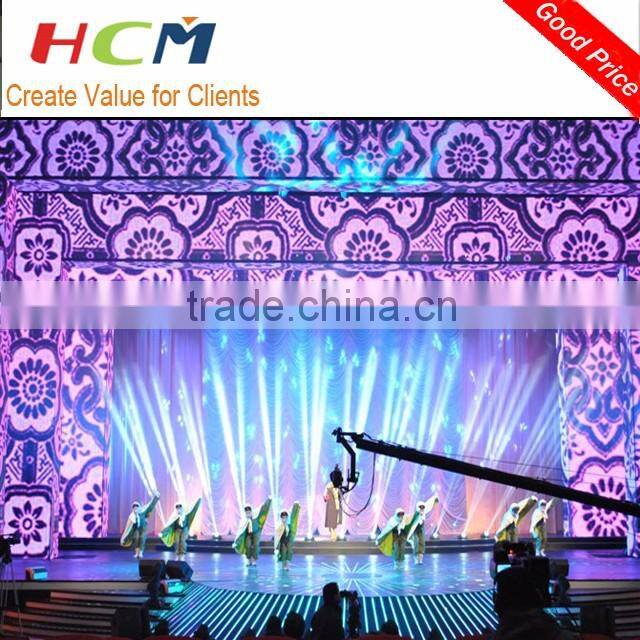

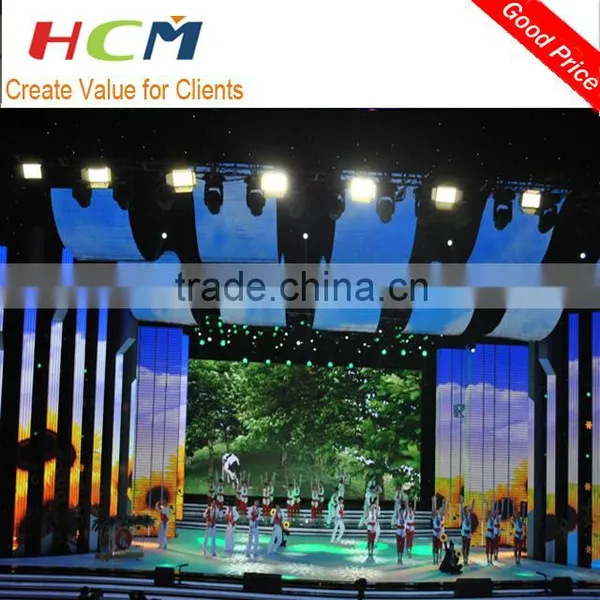

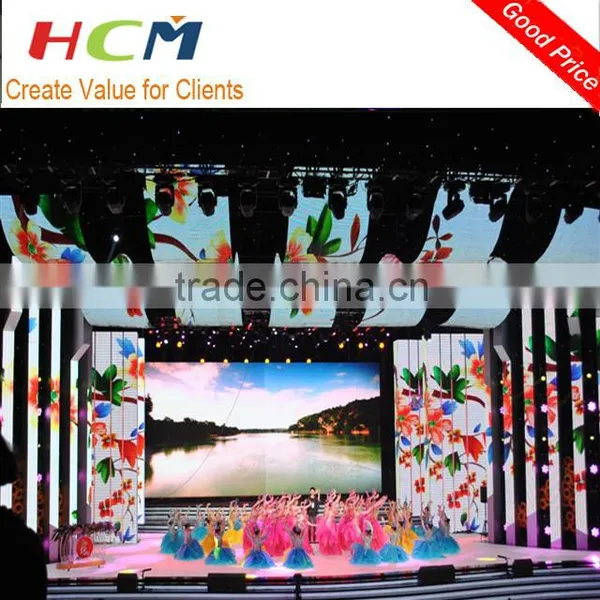

Indoor LED display as stage background

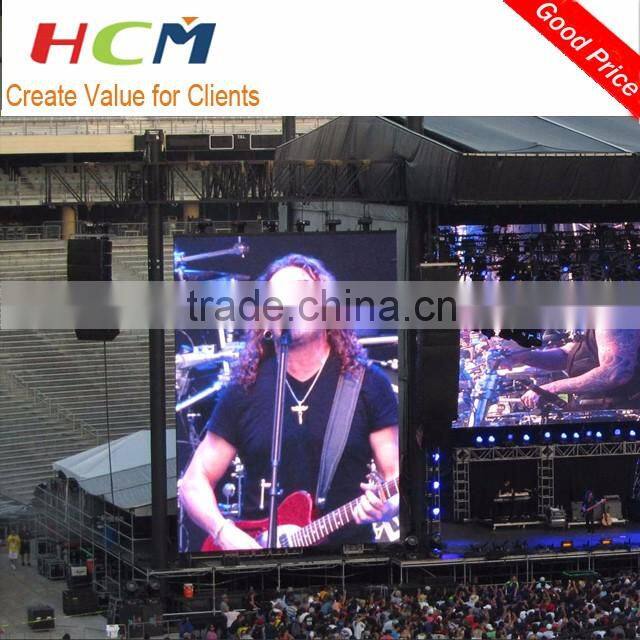

Stage LED display for concert

Product Description

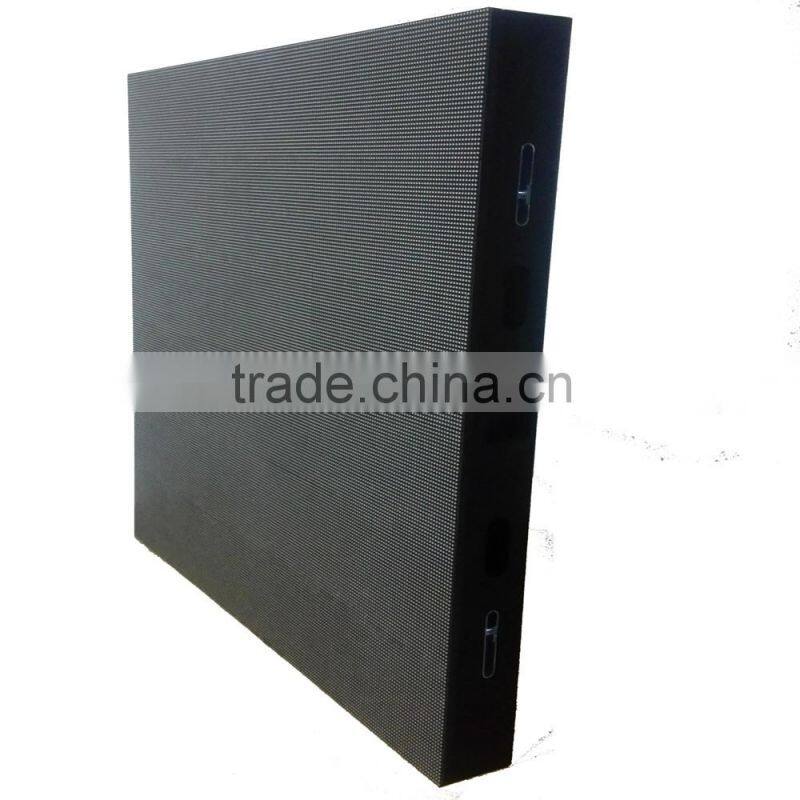

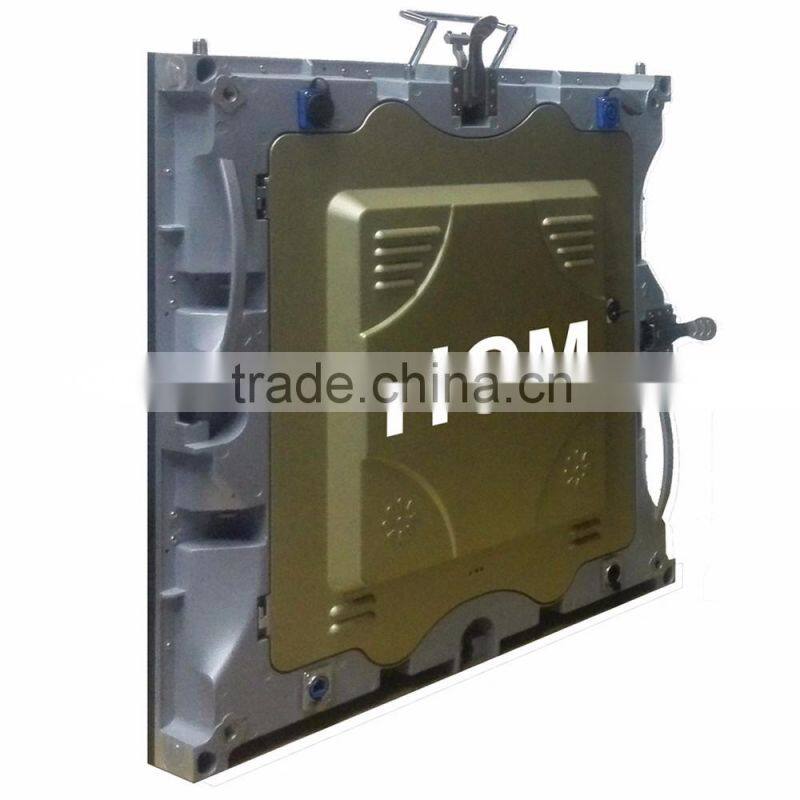

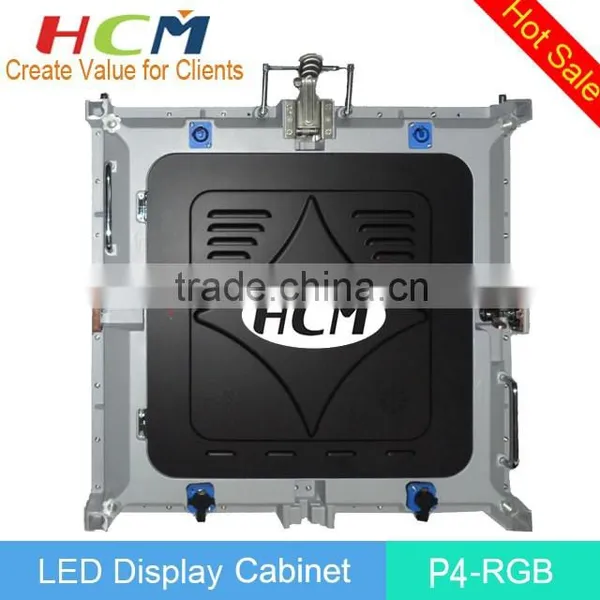

LED Back Stage Video Wall Concert Screen display/die cast aluminum cabinet for event

Application of LED display screen:

LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.

Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.

Led display screen now are widely applied in media advertising, transportantion,Security,

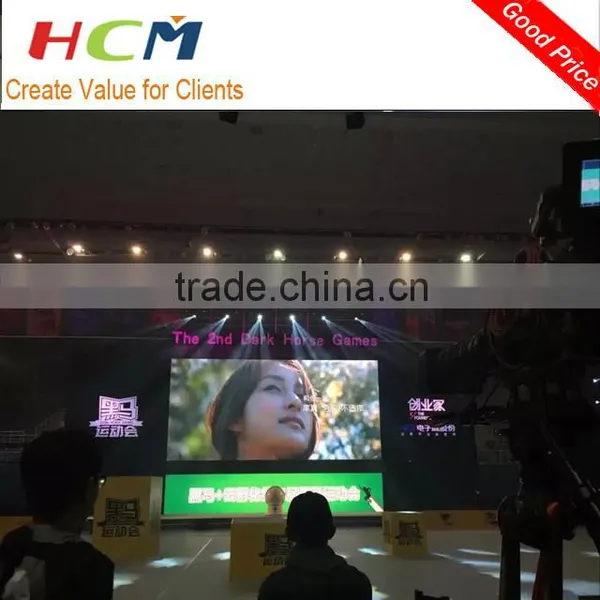

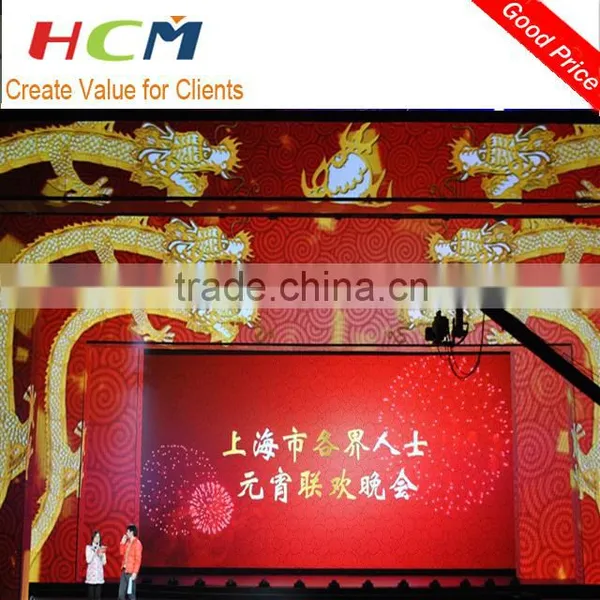

Real estate and Stage show background.

Indoor Die casting Aluminum SMD 3IN1 LED Displays
Model number	P3.91	P4.81	P5	p6
Module Physical Resolution	64*64	52*52	32*64	32*64
Module Physical Size	250mm*250mm	250mm*250mm	320mm*160mm	192mm*192mm
cabinet size	500mm*500mm	500mm*500mm	640mm*640mm	576mm*576mm
Pixel Configuration	SMD 3in1
LED Density(dot/sqm)	65536	43264	40000	27777
LED Lamp Model Type	SMD2121	SMD2121	SMD3528	SMD3528
Luminance of white balance	≥1500 nits	≥1800 nits	≥2800 nits	≥2600 nits
Power Consumption - Max	1100 w/Sqm	1100 w/Sqm	300 w/Sqm	300 w/Sqm
Life span	>100000hrs
Working voltage	AC110V/220, 60/50Hz
View Angle /°	140/140
Operation of Environmental Temperature	-30℃ to +50℃
Driving Mode	1/32 Scan rate	1/16 Scan rate	1/16 Scan rate	1/16 Scan rate
Cabinet Net Weight	8kg	8kg	45kg	45kg
Gray Scale	65536
Refresh Frequency	≥1500Hz/s
Grey scale/color	displaying colors≥16.7M(synchronized)
Control system	Linsn (sending card, receiving cards and Hubs)

Our Company

HCM Opto-electronics technology Co.,Ltd in Shenzhen China is a real factory who making LED sign /display /billboard

with high quality and competitive price.

Products:
From P1.9- P31.25 / indoor &outdoor Advertising led display/ Rental led screen / LED truck etc.

Service:
We are supplier of LED screens with excellent quality, and 3-year warranty for the products.

Use Epistar chips for our products, sold to 20+ countries all over the world.Average lead time is less than 15 days.

A 12 years experience technical team to solve problems for you anytime!

If you do not hesitate to send us any of your inquiries,it`s will get prompt attention.
Looking forward to hearing from you.

Certifications

Packing & Delivery

For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,

For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.

One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets

By air or by sea! FOB or CIF

FAQ

Q1: What's the warranty of your LED Display Screen ?

A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.

Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.

Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.

For asynchronous control: We use Onbon, or Xixun control system.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 8 years, what we rely on.

We have each stardard process to make quality products.

If any quality failures within warranty time, we will refund you on alibaba.
