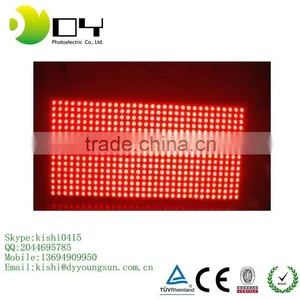

Full color P10 outdoor red led module on sale
USD $5.24 - $6.35
/ Piece
1 Piece(Min.Order)
- 1500 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Model Number: | DY-P10 | Chip Material: | InGaN | Emitting Color: | Red |
| Luminous Intensity: | 6500CD/㎡ | Power: | Other | Operating Temperature(℃): | -20, 50 |
| Storage Temperature(℃): | -35, 85 | Place of Origin: | Guangdong, China | Brand Name: | DY |
| Certification: | CE |
Product Description
Full color P10 outdoor red led module on sale
| The technical parameter of P10 Display Module | ||
| Number | Item | P10 Single Red Module |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module(wxh) | 320mm X160 mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 1R or 1G or 1B or 1W |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | Red |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m² |
| 13 | Brightness | >2500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 5500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | >300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10000 hours |
| 24 | Lifespan | >100,000 hours |
| 25 | Defects rate | ≤0.00001(Led display line standard<0.0001) |
P10 module series:
| Red wavelength | 625±2nm | size(mm)320*160 |
| Green wavelength | 525±2nm | size(mm)320*160 |
| Blue wavelength | 470±2nm | size(mm)320*160 |
