Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module

Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module thumbnail-1

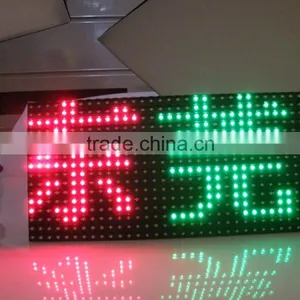

Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module thumbnail-2

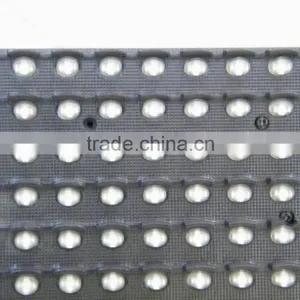

Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module thumbnail-3
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module thumbnail-4
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module thumbnail-5

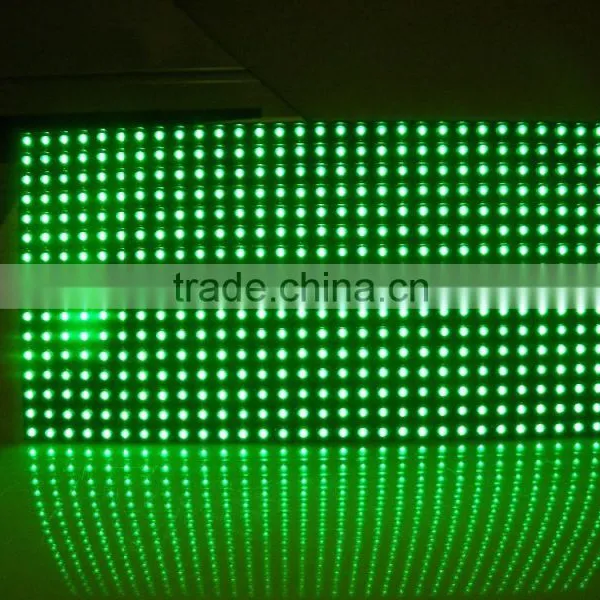

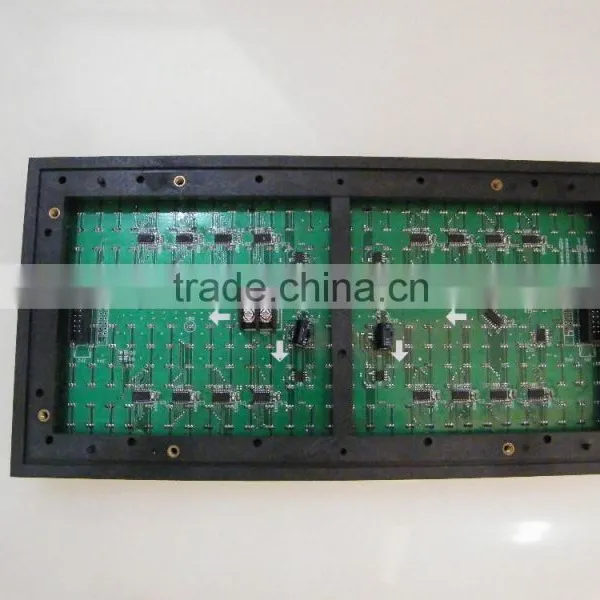

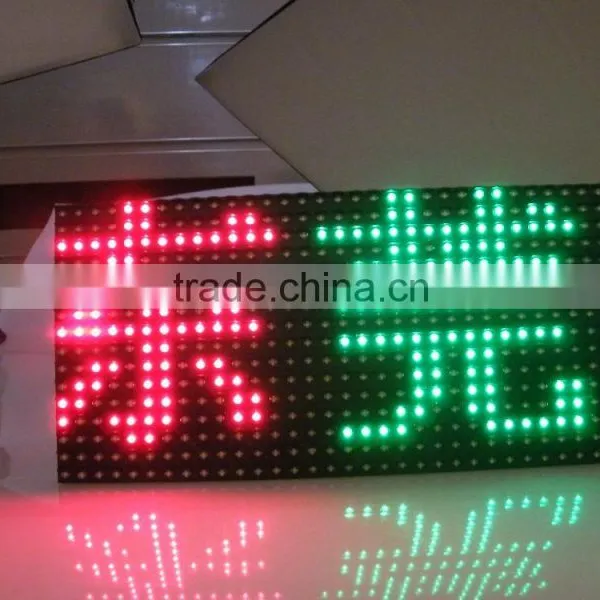

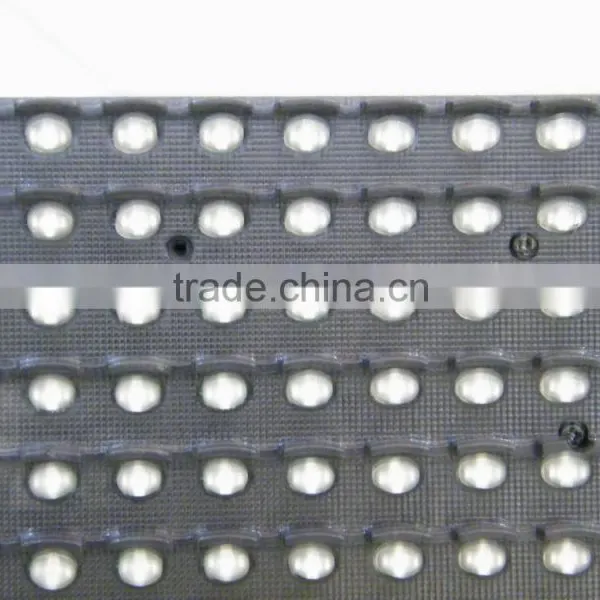

Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module photo-1
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module photo-2
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module photo-3
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module photo-4
Good Price Led Display Screen Outdoor P10 Dot Matrix Led Module photo-5
US$ 7.8 - 8.8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
DY-P10
Chip Material:
InGaN
Emitting Color:
Other, red and green
Contact Supplier Request Quote Chat Now
Dongguan Deying Photoelectric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number DY-P10
Chip Material InGaN
Emitting Color Other, red and green
Power Other
Operating Temperature(℃) -20, 50
Storage Temperature(℃) -35, 85
Place of Origin Guangdong, China
Brand Name DY
Certification CE

Specifications

alibaba good price led display screen outdoor p10 dot matrix led module
1.LED display module Physical Pitch:10mm
2.10000dots/m

Application:

1. Stock exchange, Commercial institutions;
2. Government, School, Bank, Hospital;
3. Shopping mall, supermarket
4. Air port, Bus station, Railway station, harbor,

5. Entertainment: Bar, KTV, Cinema, Restaurant;
6. Advertising and Security use etc.





specification:


Item

P10

Module Parameters

Physical Pitch

10mm

Physical Density

10000dots/m2

LED Arrangement

red

LED Encapsulation Form

DIP 346

Module Size

160mm*160mm

Module Resolution

16× 16

Scan Mode

1/4 Scan

Drive Mode

Constant Current Driving

Cabinet Parameters

Cabinet Size

960mm*960mm

Cabinet Resolution

96*96

Module Quantity

36pcs

Display Parameters

Optical

Brightness

5500cd/m2

  View Angle

120° /50°

  Best View Distance

10m-30m

Power

Maxim Power Consumption

1170W/m2

Ave. Power Consumption

470W/m2

Controller

Frame Frequency

60HZ

Refresh Rate

≥ 380HZ

Brightness Adjustment

256 levels automatic

Input Source Support

Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD_SDI

Control Mode

Synchronization with PC

Control Distance

CAT Cable: ≤ 100m;
  Multi-mode Fiber: ≤ 500m;
Single-mode Fiber: ≤ 15km

Reliability

Operating Temperature

-20-- +50

Operating Humidity

10 - 90% RH

Operating Life Span

100, 000 Hours

MTBF

10, 000 Hours

Protection Ratings

IP65(Front side), IP43(Back side)

  Blind Spot Rate

< 0.00001







































Notes:

1.The unit price depends on the quantity, we can offer you at a competitive price.

2. Your inquiry related to our products or prices will be replied in 24hrs.
3 .Well-trained and experienced staffs to answer all your  enquires in fluent English
4. OEM&ODM, any your customized lightings we can help you to design and put into product.
5. Distributorship are offered for your unique design and some our current models
6.Protection of your sales area, ideas of design and all your private information
