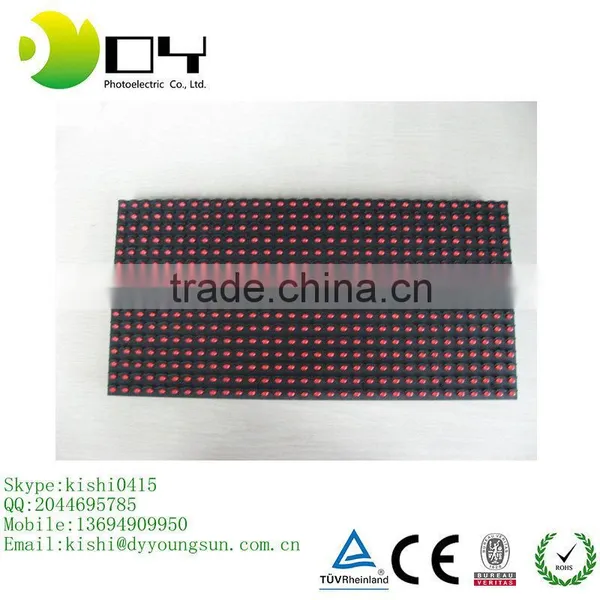

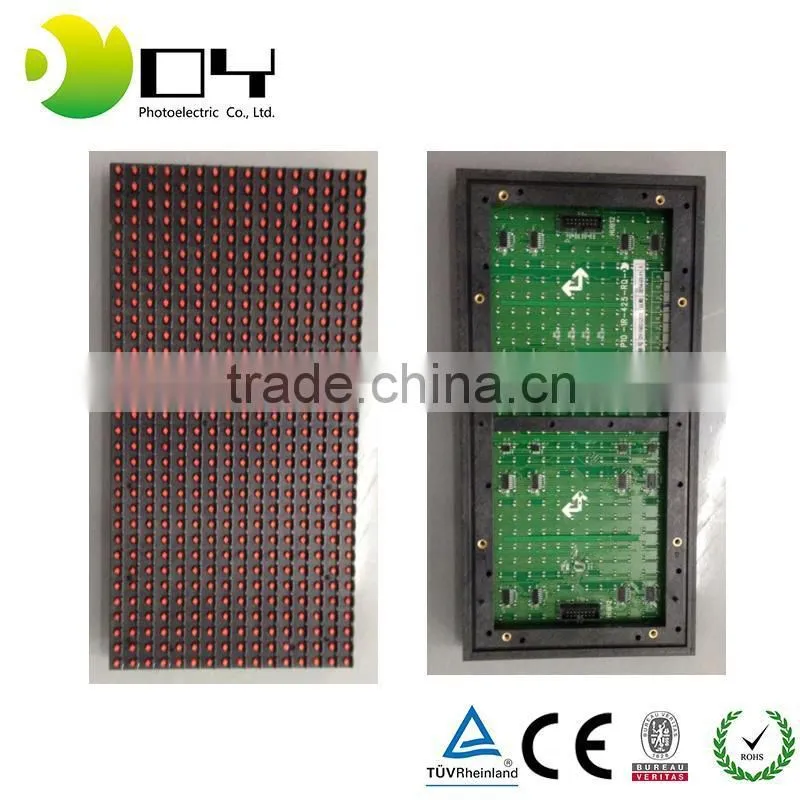

P10 led display module:
Module details |
Usage: |
outdoor |
Display function: |
Text, graphic |
|
Pixel pitch: |
10mm |
|
Pixel density: |
10,000dots/sqm |
|
Module size: |
320*160mm |
|
Tube chip color: |
Single color |
|
Whole display |
≤0.5mm |
|
Constitution: |
1R |
|
Resolution: |
16*32 |
|
Gray Scale |
256 grades |
|

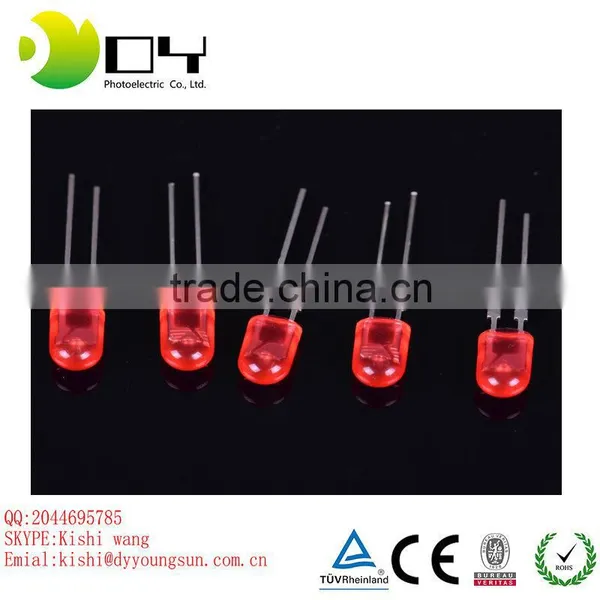

Diameter: |
5mm |
|
|
|
|
|
|
|
Power supply |
Working voltage: |
AC 180-240V,DC 5V40A |
Average power |
200-250w/sqm |
|
Max power |
400-500w/sqm |
|
Main technical parameters |
Brightness: |
2,500-3,300cd/sqm |
Brightness adjustment |
100 levels by software |
|
Refresh frequency |
≥120 Hz |
|
Frame frequency |
≥60 Hz |
|
Working temperature |
-20°C~+50°C |
|
Storage temperature: |
-35°C~+85°C |
|
Humidity: |
≤95% |
|
Best view distance: |
15-200m |
|
Best view angle: |
H: ≥120°; V≥90° |
|
MTBF: |
≥5000 hours |
|
Lifetime: |
≥100,000 hours |
|
Drive mode |
1/4 scanning,constant current |
|
|
|
|
Control system |
Operating system |
WIN 98/WIN2000/ |
Control method |
asynchronous |
Notes:
1.The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3 .Well-trained and experienced staffs to answer all your enquires in fluent English
4. OEM&ODM, any your customized lightings we can help you to design and put into product.
5. Distributorship are offered for your unique design and some our current models
6.Protection of your sales area, ideas of design and all your private information
7.The contents of led display screen can be readily replaced to display different advertisement for different customers.
8.Have IP65 ingress protection, which ensures the display work normally in the rainy weather.
9.High refresh rate ensures the images displayed are much more vivid, meeting requirements for high visual quality.
10.It can be used for exihibition,conference,activity show etc for indoor and outdoor application.
11.It can be connected into computer,camera,DVD,VCD and other signar source

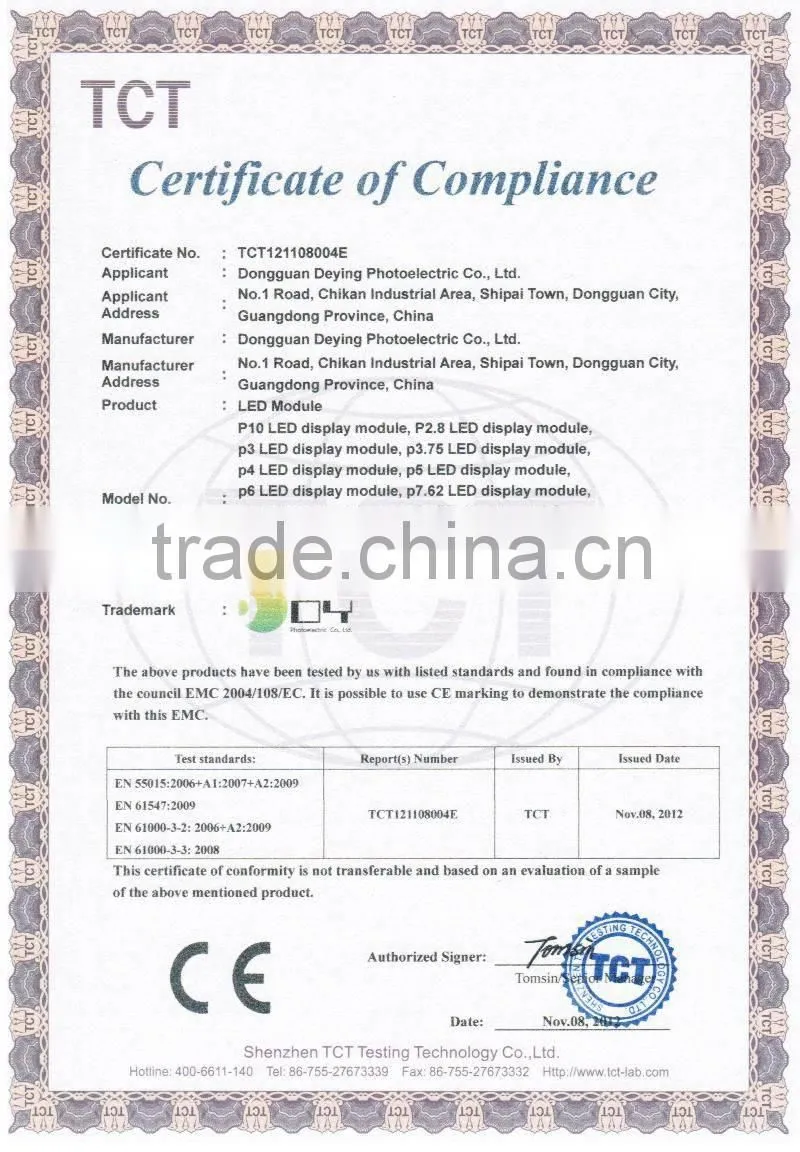

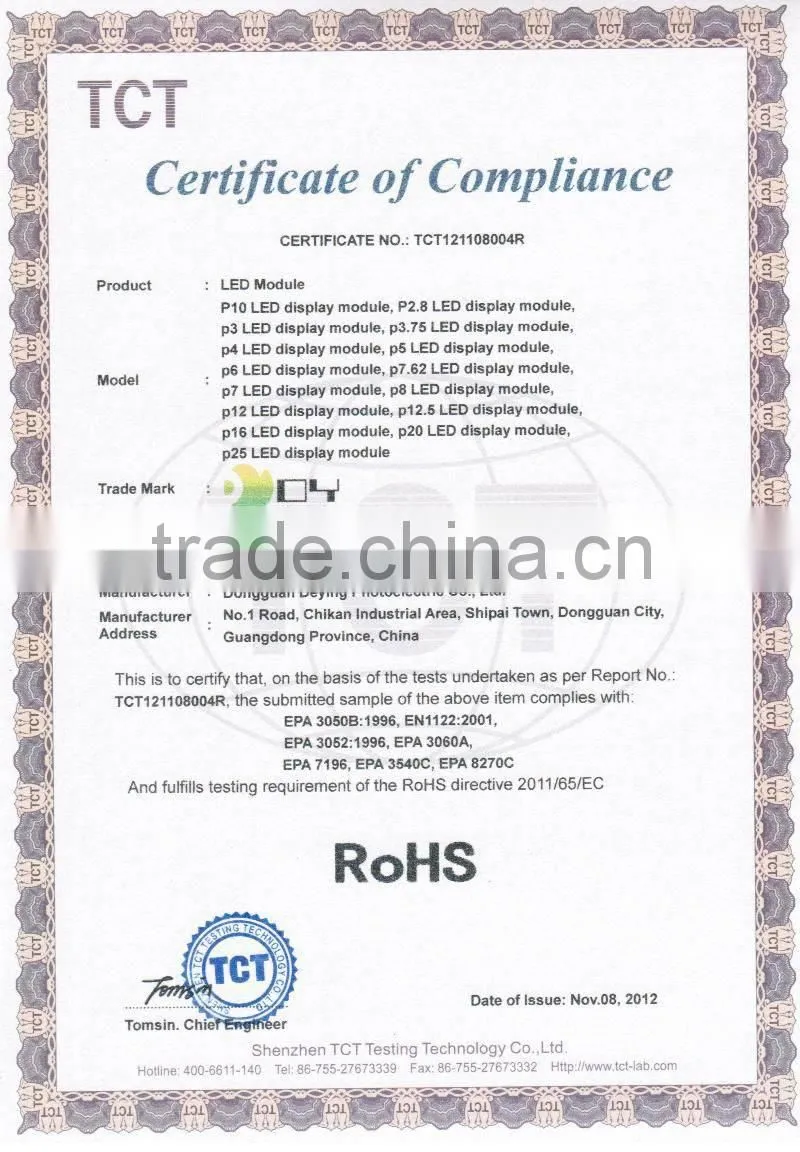

12.CE&ROHS certificate,Warranty:1 year
