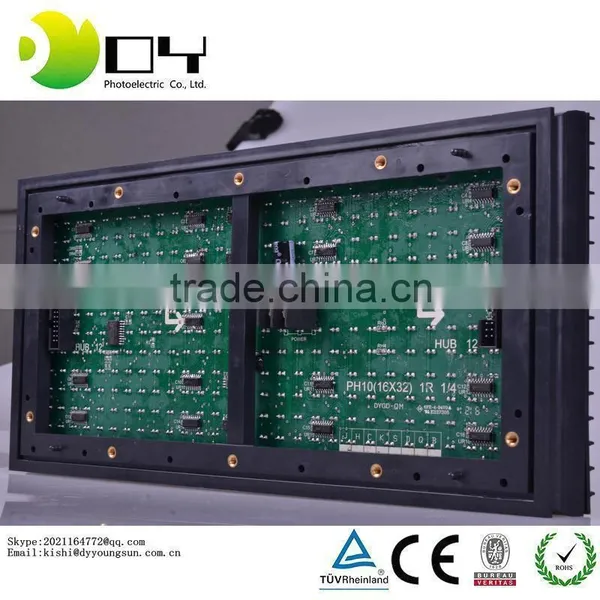

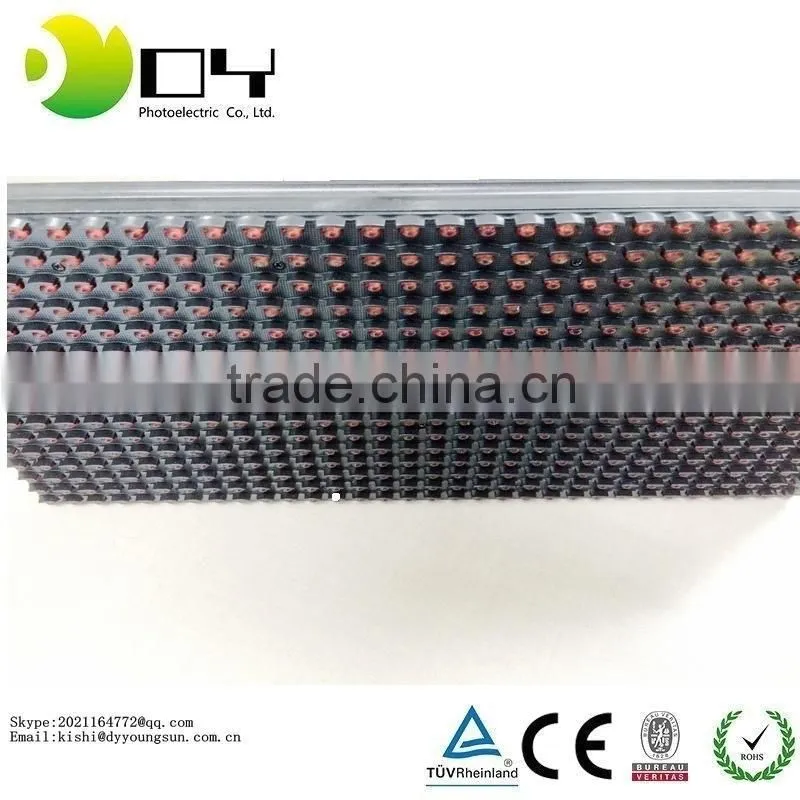

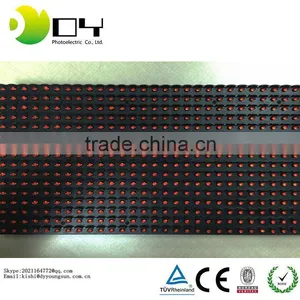

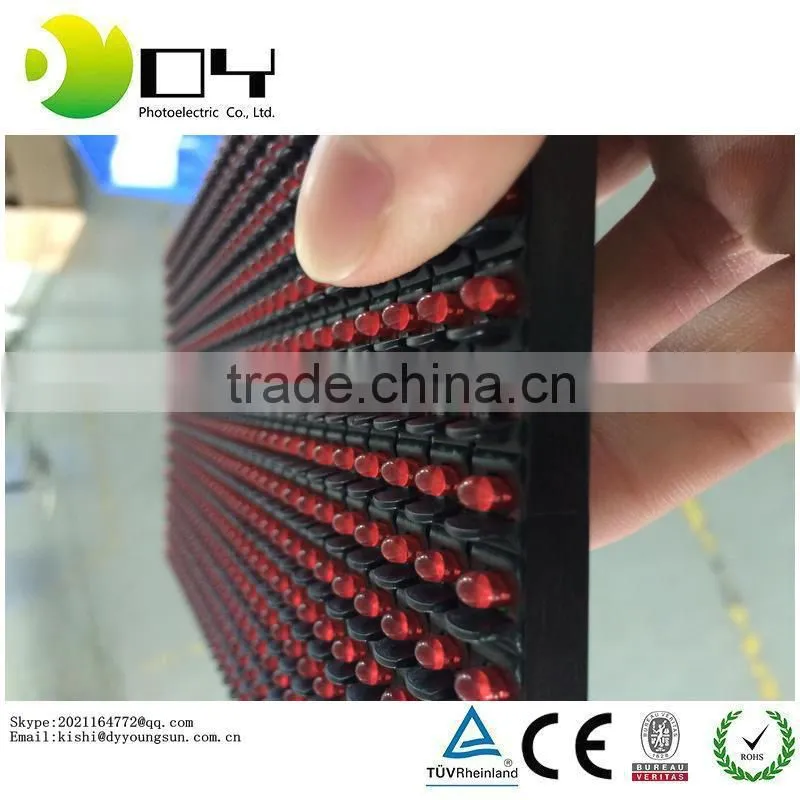

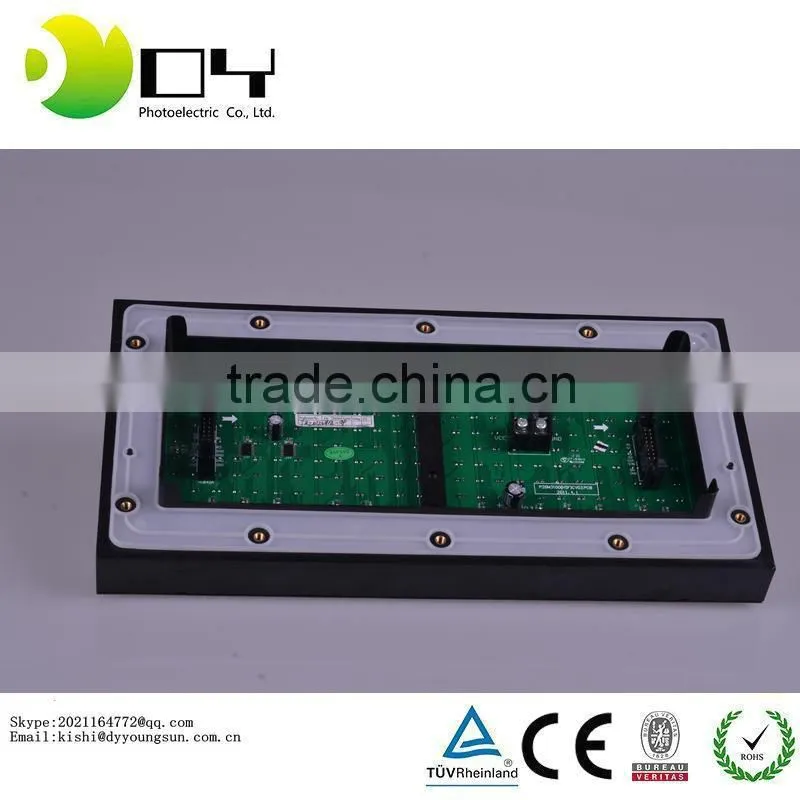

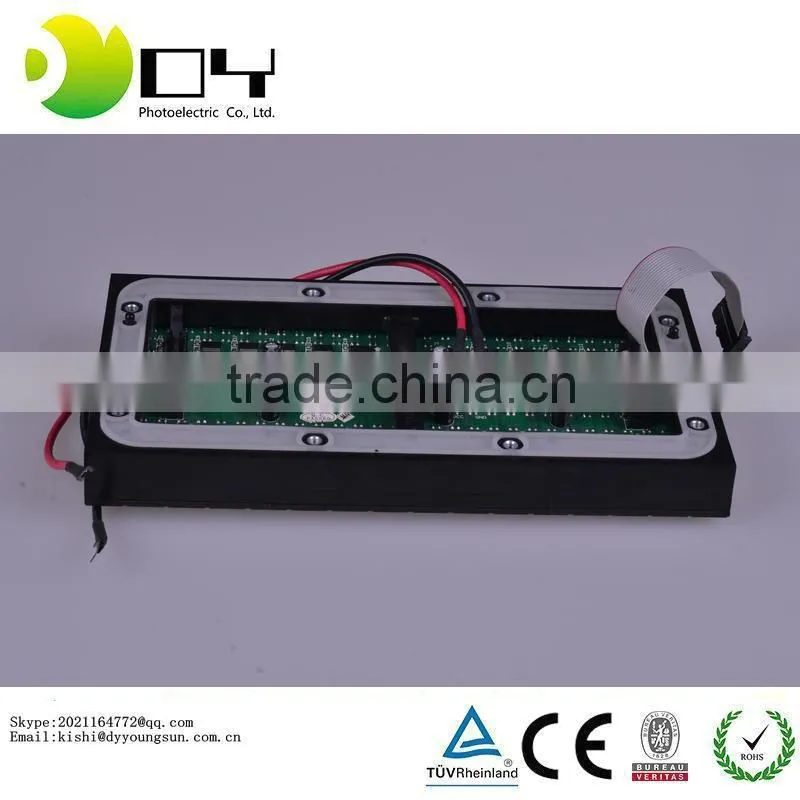

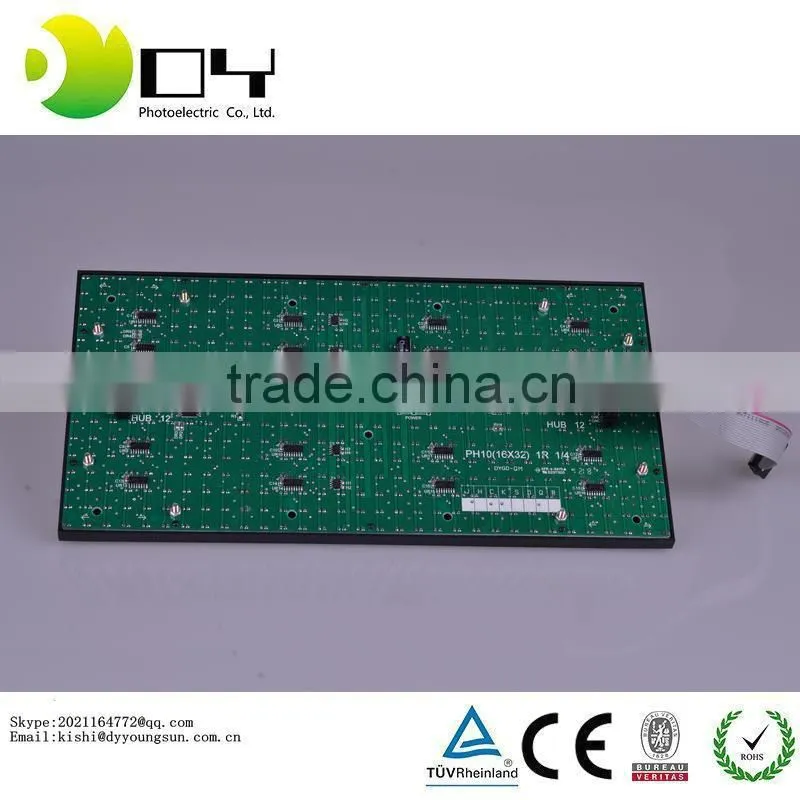

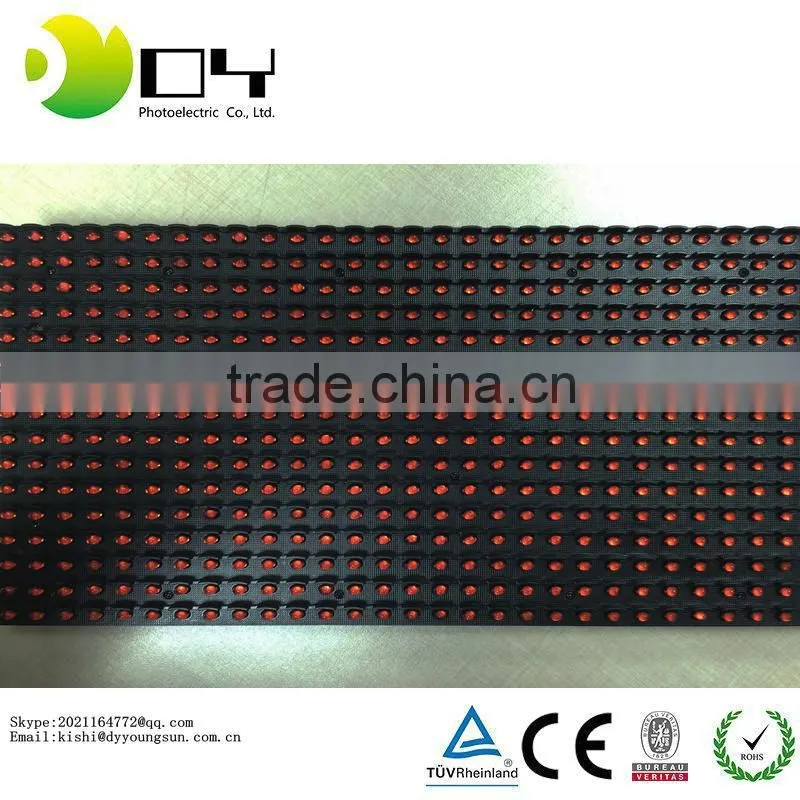

mono color red green white yellow blue p10 outdoor single color outdoor led display module
| The technical parameter of P10 Display Module | ||
| Number | Item | P10 Module |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module(wxh) | 320mm X160 mm,160*160mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 1R or 1G or 1B or 1W |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | red /green/white/yellow/blue |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m² |
| 13 | Brightness | >2500cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 3000-6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | >300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -25°C~60°C |
| 23 | MTBF | >10000 hours |
| 24 | Lifespan | >100,000 hours |
| 25 | Defects rate | ≤0.00001(Led display line standard<0.0001) |
P10 module series:
| Red wavelength | 625±2nm | size(mm)320*160 |
| Green wavelength | 525±2nm | size(mm)320*160 |
| Blue wavelength | 470±2nm | size(mm)320*160 |
Related certifications:
Why Us:
1. We have professional engineers,sales and workers service for you, all goods examined before delivery,Professional QC team .
2. We have factory and can offer you direct highest cost-effective price
3. We have a variety of customized products to satisfy your different requests.
4. We can promise you a short lead time
FAQ:
1.what color have you for P10 led panel?
l we have single color: red, blue, yellow, orange, green, white
l we have double colors: RG,RB,RW or you can select
l we have full colors for indoor and outdoor led display
2.which led display you can offer?
l P4P5P6P7.62...indoor full color led display;
l P10/P12/P12.5/P16/P20/P25...outdoor full color led display;
l Indoor/outdoor/semi-outdoor single/dual color led display.
3.Do you have the controller card?
l Yes,we have the TF series,Bx series And ZH series card,single color,rgb controller etc.
4.which payment are acceptable?
l T/T,western union,paypal etc are acceptable
5. What about the lead time for order?
l Always: 15-20 working days.
6.How about the warranty ?
l We have 3years warranty and lifelong maintenance.
