P6 Indoor Full Color Led Panel Display xx New Image xx Video Screen

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

p6module-027

Chip Material:

InGaN

Emitting Color:

Tri-Color(Red-Blue-Green)

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number p6module-027

Chip Material InGaN

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity 10-12lm/led

Luminous Flux(lm) 54lm

Optical Attenuation(%) 0.1

Power Dissipation 0.5%

Color Rendering Index(Ra) 85

Color Temperature 3000-6000K

Operating Temperature(℃) -20, 50

Storage Temperature(℃) -35, 85

Place of Origin Guangdong, China

Brand Name DY

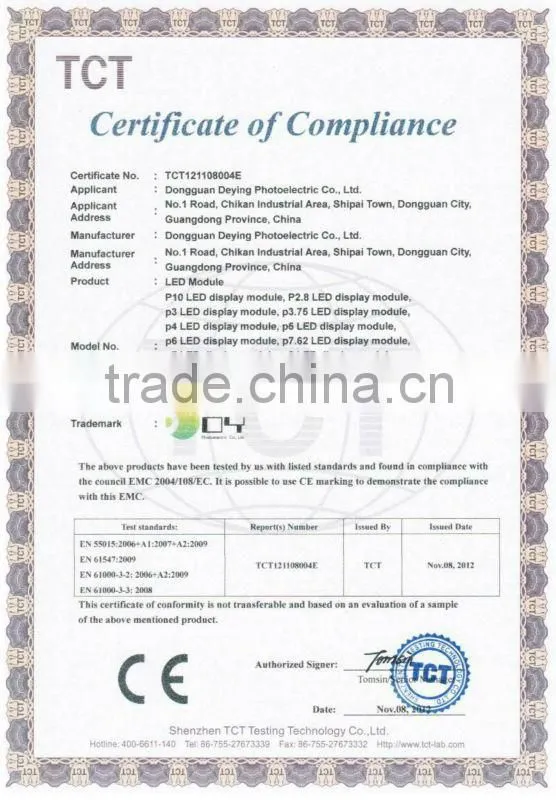

Certification CE

P6 indoor full color led panel display xx new image xx video screen

The technical parameter of P6 led Display panel
Number	Item	P6
1	Pixel pitch	6mm
2	Size of module(wxh)	160mm X160mm/192 X96mm
3	Resolution of module (wxh)	32 dots X16 dots
4	Density of pixel	27777dots/m²
5	Pixel configuration	1R or 1G or 1B or rgb
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	single color/rgb
10	Best viewing distance	6-100m
11	Horizontal viewing angle	120°
12	max power consumption	550w/sqm
13	Brightness	>1600cd /sqm
14	Gray scale	16bits per color
15	Color temperature	3000-6000k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/8 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP65
22	Working temperature	-20°C~80°C
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)
