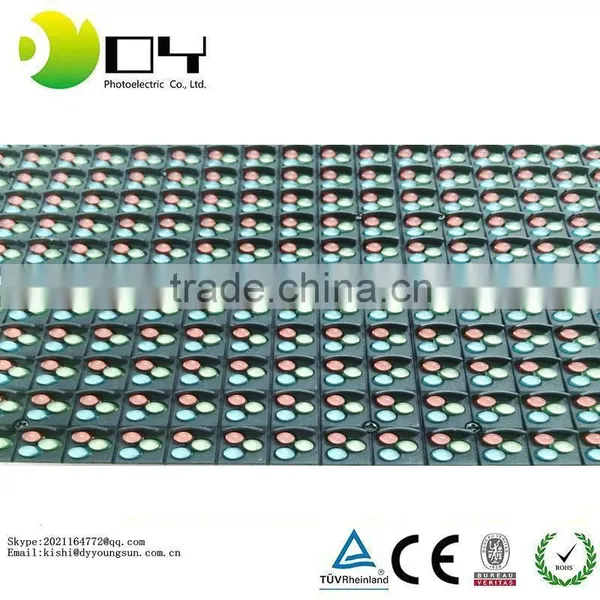

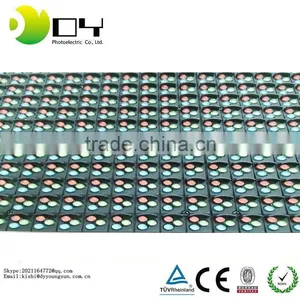

Waterproof IP65 High Brightness Outdoor RGB P10 Led Module Price/good Price LED Module 32x16pixels

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

dpfc20151012002

Chip Material:

InGaN

Emitting Color:

Tri-Color(Red-Blue-Green)

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number dpfc20151012002

Chip Material InGaN

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity ≥6500cd/ m2

Luminous Flux(lm) 54lm

Optical Attenuation(%) 10

Power Other, 14.4w

Power Dissipation 0.3W

Color Rendering Index(Ra) 85

Color Temperature 6000-6500K

Operating Temperature(℃) -20, 50

Storage Temperature(℃) -35, 85

Place of Origin Guangdong, China

Brand Name DY

Certification CE

DIP P10 full color outdoor advertising led display panel

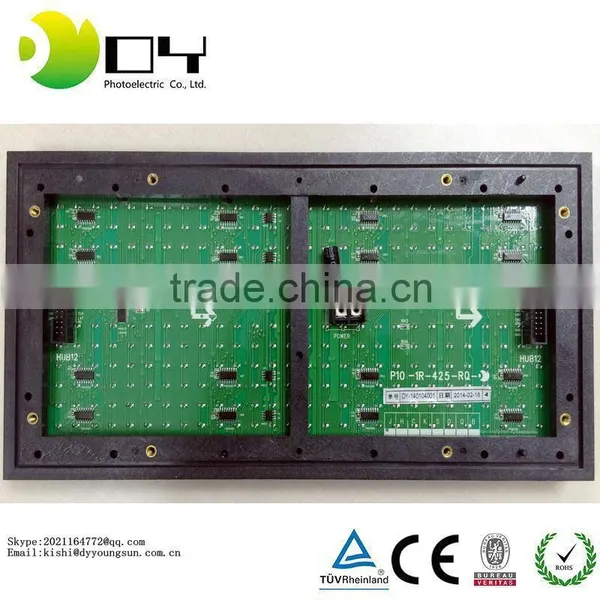

The technical parameter of P10 Display Module
Number	Item	P10 RGB Module
1	Pixel pitch	10mm
2	Size of module(wxh)	320mm X160 mm,160*160mm
3	Resolution of module (wxh)	32 dots X16 dots
4	Density of pixel	10000dots/m²
5	Pixel configuration	1R 1G 1B
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	rgb
10	Best viewing distance	10-100m
11	Horizontal viewing angle	120°
12	power consumption	300w/m²
13	Brightness	>6500cd /m2
14	Gray scale	16bits per color
15	Color temperature	5500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP65
22	Working temperature	-20°C~80°C
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)
