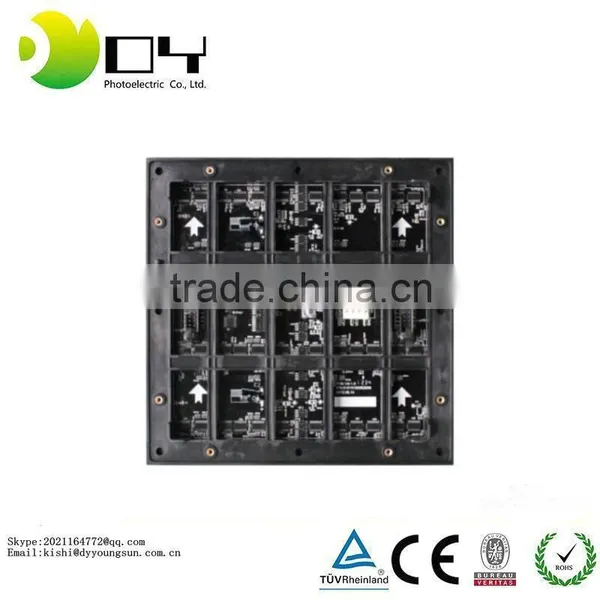

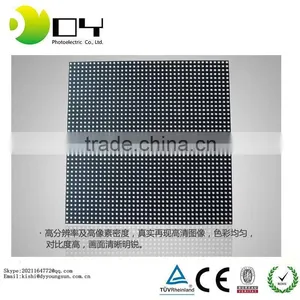

Factory Price of p6 Rgb Indoor Led Video Wall Screen Display Module

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

fpop20151012003

Chip Material:

InGaN

Emitting Color:

Tri-Color(Red-Blue-Green)

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Model Number fpop20151012003

Chip Material InGaN

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity ≥8000cd/ m2

Power Other, 300w/㎡

Color Temperature 6000-6500K

Operating Temperature(℃) -20, 50

Storage Temperature(℃) -35, 85

Place of Origin Guangdong, China

Brand Name DY

Certification CE

factory price of p6 rgb indoor led video wall screen display module

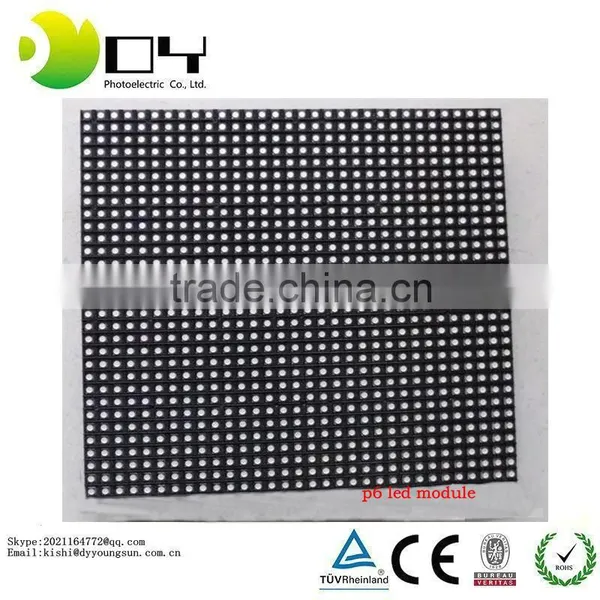

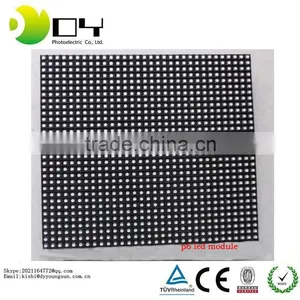

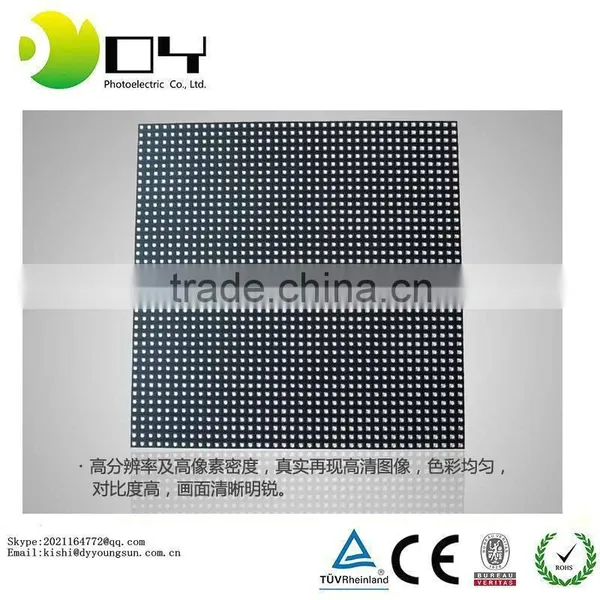

The technical parameter of P6 display module
Number	Item	P6 RGB Module
1	Pixel pitch	6mm
2	Size of module(wxh)	192mm X192 mm
3	Resolution of module (wxh)	32 dots X32 dots
4	Density of pixel	27777dots/m²
5	Pixel configuration	1R or 1G or 1B
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	1R1G1B
10	Best viewing distance	≥6m
11	Horizontal viewing angle	120°
12	power consumption	300w/m²
13	Brightness	>8000cd /m2
14	Gray scale	16bits per color
15	Color temperature	5500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	usage	indoor
22	Working temperature	-25°C~+60°C
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)
