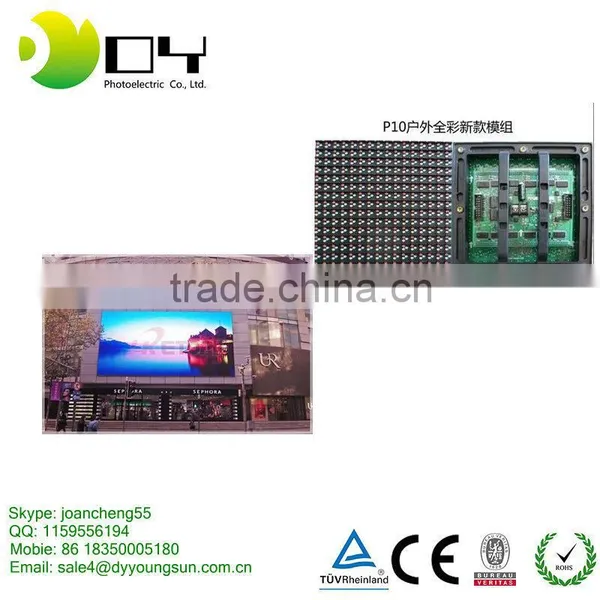

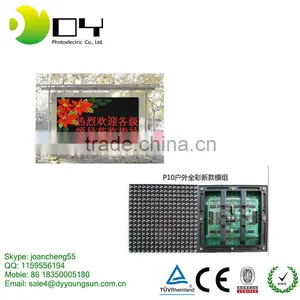

Best Price Full Color LED Display P10 for Video Advertising/Outdoor P10 LED Billboard Panel

US$ 2 - 3 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DY-mp10

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DY

Model Number DY-mp10

Usage Other, Outdoor, Outdoor

Tube Chip Color Full Color

Display Function Other, Video, Video

Pixels 10mm

Screen Dimension 320*160mm

alibaba factory price digital led p10 rgb display module virtual

No.	Specifications

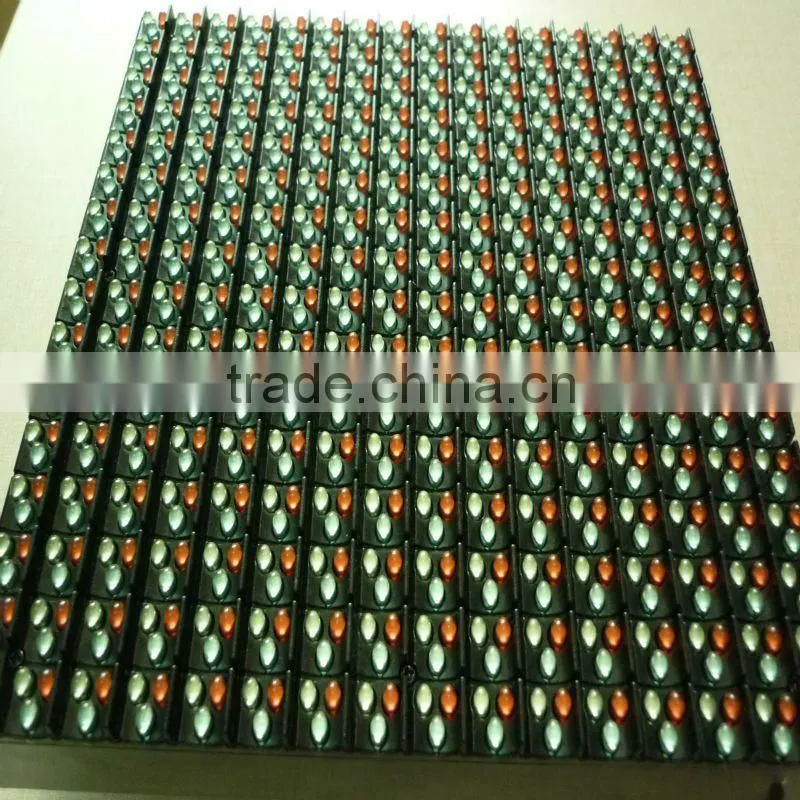

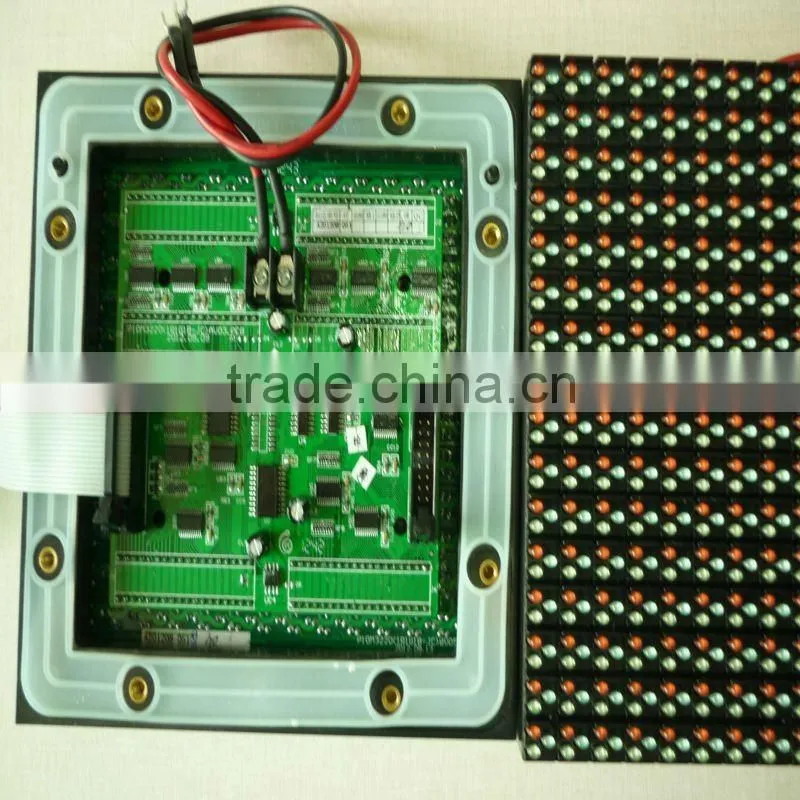

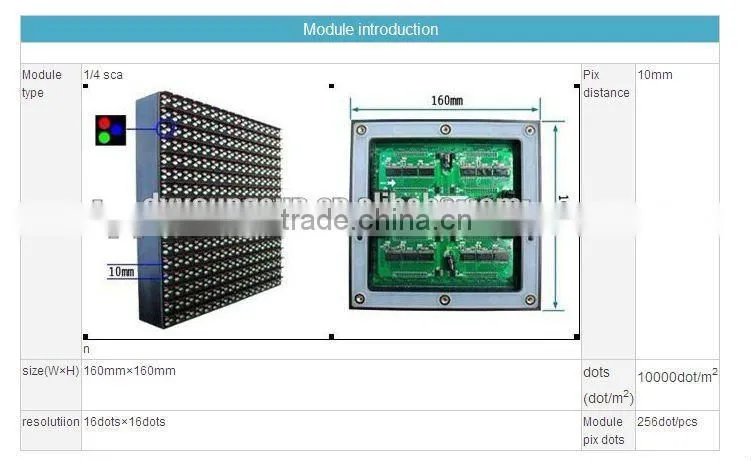

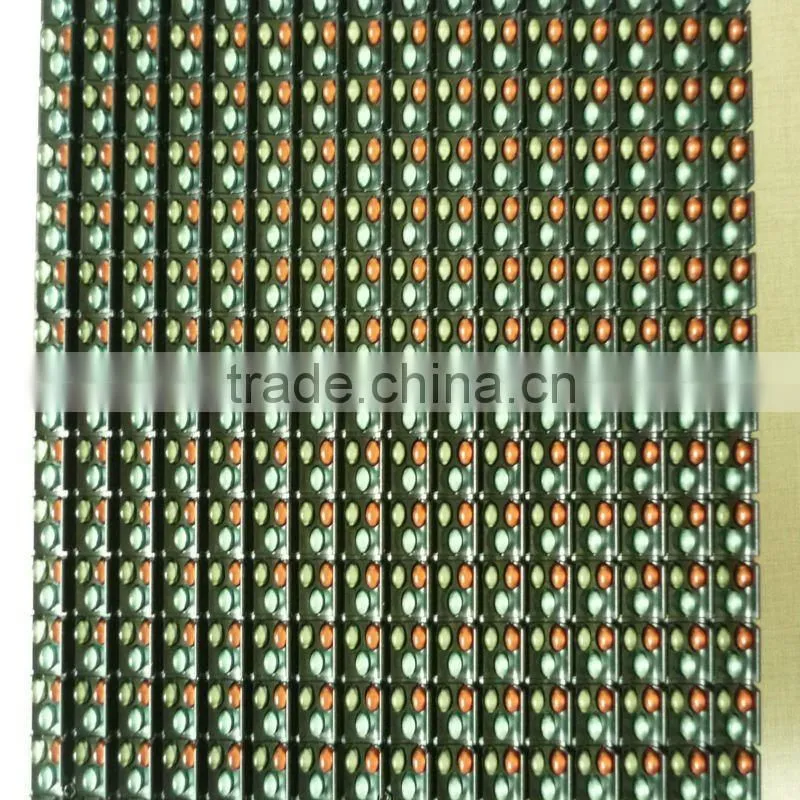

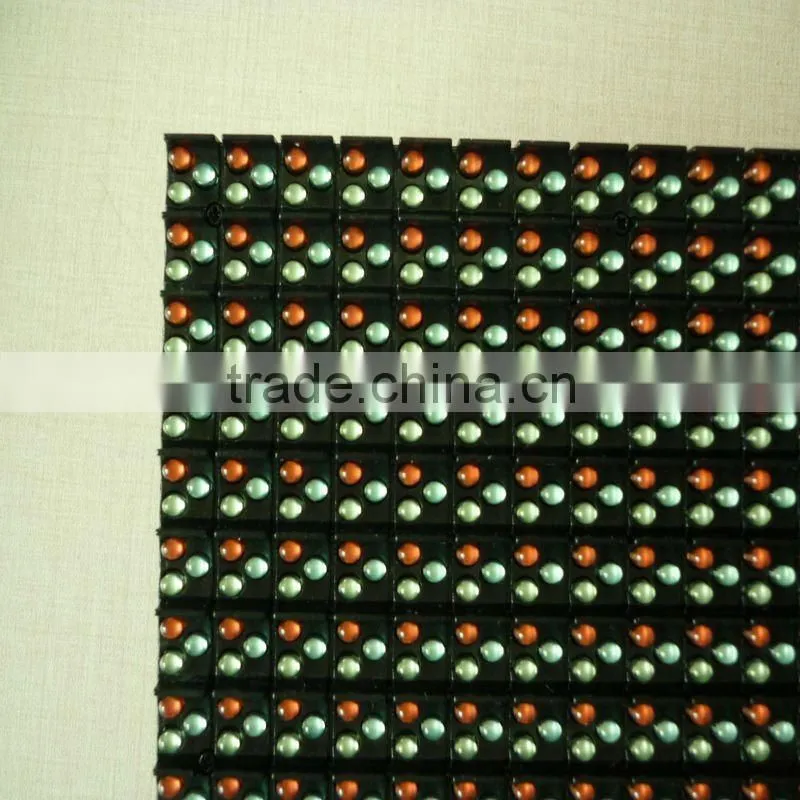

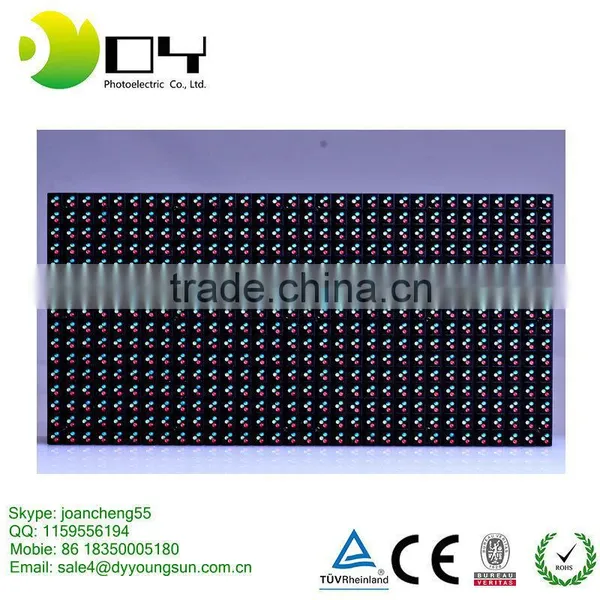

1.	Part No.	P10 led display module
2.	LED chip	Taiwan/Silan/Cree/Cree Cotco
3.	Physical Pixel Pitch	10mm
4.	Physical Pixel Density	10000dots/m²
5.	Pixel composition	1Red, 1Green,1Blue
6.	Moduel Size	160*160mm
7.	Moduel resolution	16*16dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 6500 nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥120°, Vertical : ≥ 45°
13.	Viewing distance	10m -300m
14.	Soft Rubber Mask	To protect player and LED display itself .
15.	Scan frequency	≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	70Kg /sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Average power consumption	400W/sqm
23.	Peak power consumption	1300W/sq
24.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-20+60 Humidity:10%95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI
