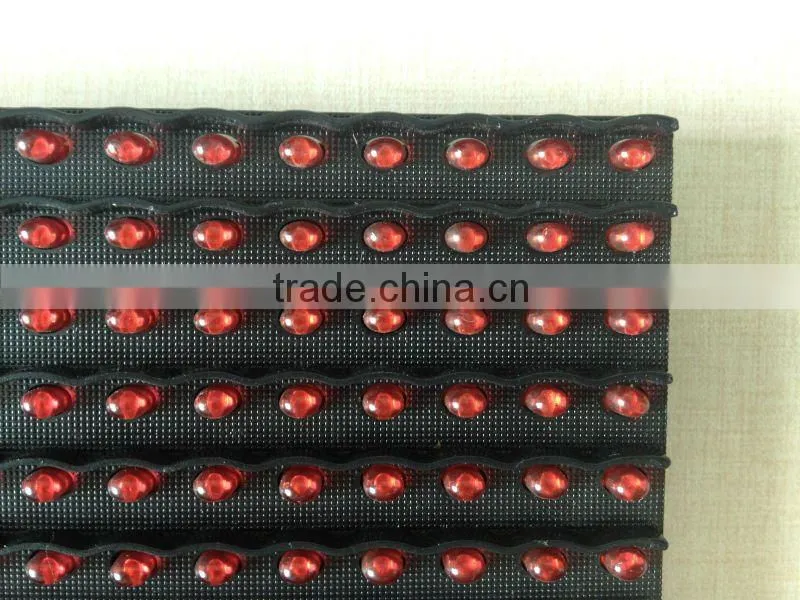

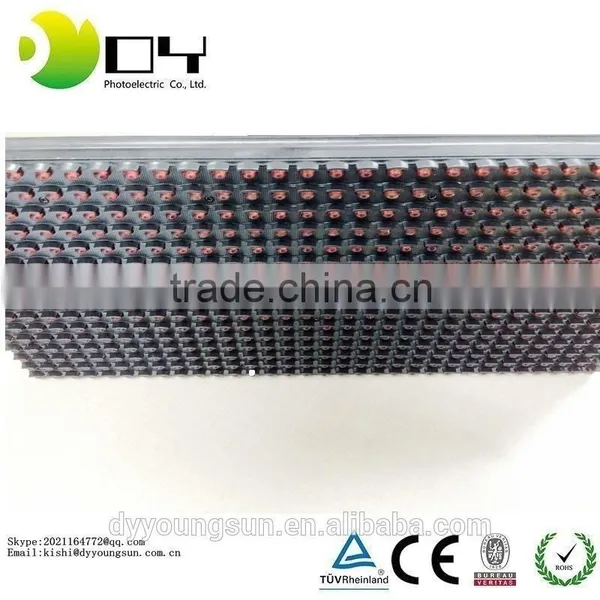

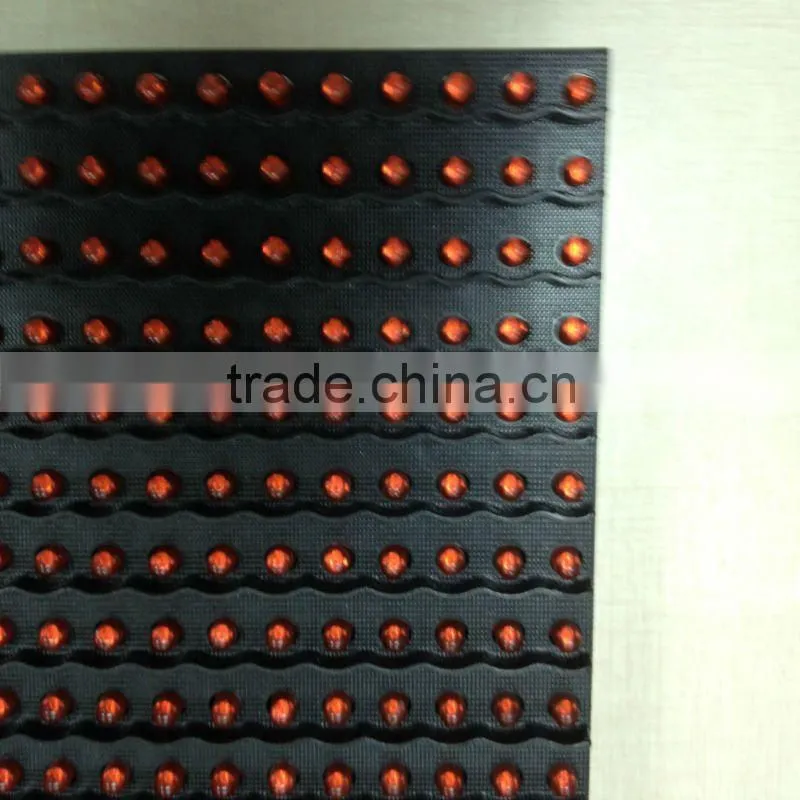

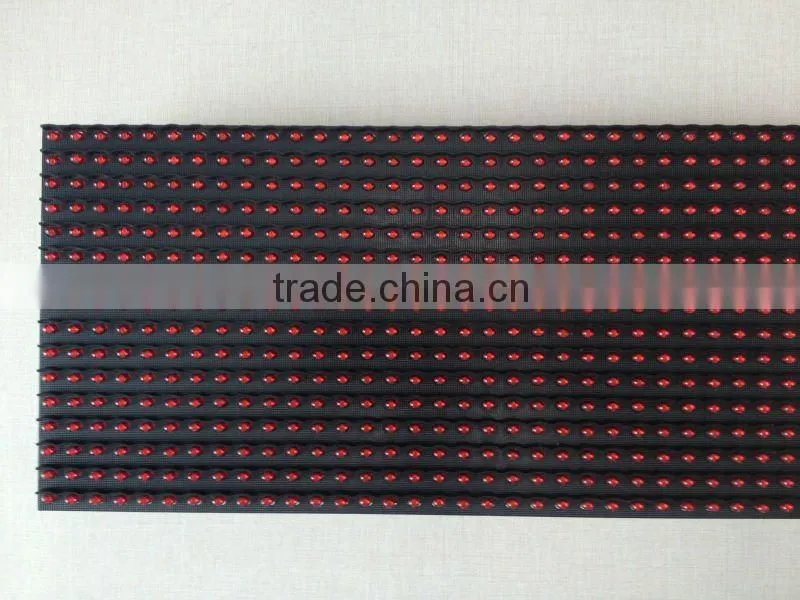

Pixels 10mm P10 Outdoor Full Color Led Display Module Outdoor LED Display hd

Name: Pixels 10mm P10 Outdoor Full Color Led Display Module Outdoor LED Display hd
Brand: DY-mp
SKU: 108794285

US$ 5.55 - 7.2 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DY-mp

Model Number:

DY-mp-10

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DY-mp

Model Number DY-mp-10

Usage Semi-outdoor

Tube Chip Color Red

Display Function Other, text

Pixels 10mm

Screen Dimension 320*160mm

Alibaba express Single Color Red LED Module P10 320mm*160mm

Features:
1) High brightness and stable picture.

2) Long lifetime

3) Reducing power consumption by 50% and has passed the inspection by the national inspection authorities

Item	Outdoor PH 10
LED Configuration	DIP 1R
Pixel Pitch	10 mm
Pixel Density	10.000dots/m²
Chip Color	1R
Module Size	320mm*160mm
Module Density	32*16
Cabinet Size	***
Cabinet Density	***
Display Weight	30KG/m²
Viewing Distance	≥10 m
Viewing Angle	V/H 120°/45°
Maximum Power Consumption	≤800W/m²
Average Power Consumption	≤400W/m²
Drive Method	1/4 scan Constant Voltage
Frame Rate	≥60Hz
Refresh Rate	≥300Hz
Brightness	≥550cd/m²
Environment Temperature	-20°C~60°C
Working Current	220V±15% or 110V±15% 50~60Hz
Grey Scale	256 (synchronized)
Method of Brightness Adjustment	256
MTBF	≥9,000h
Lifetime	≥100,000h
Dead Dot	≤0.0003
