alibaba express outdoor waterproof advertising display outdoor led display p10 outdoor led module

FOB Price

USD $4.06 - $4.68 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:	Guangdong, China	Brand Name:	p10	Model Number:	P10r module, p10 outdoor led module
Usage:	Other, Outdoor, Outdoor	Tube Chip Color:	Other, Red, Red	Display Function:	Graphics
Pixels:	10mm	Screen Dimension:	320mm*160mm

Specification

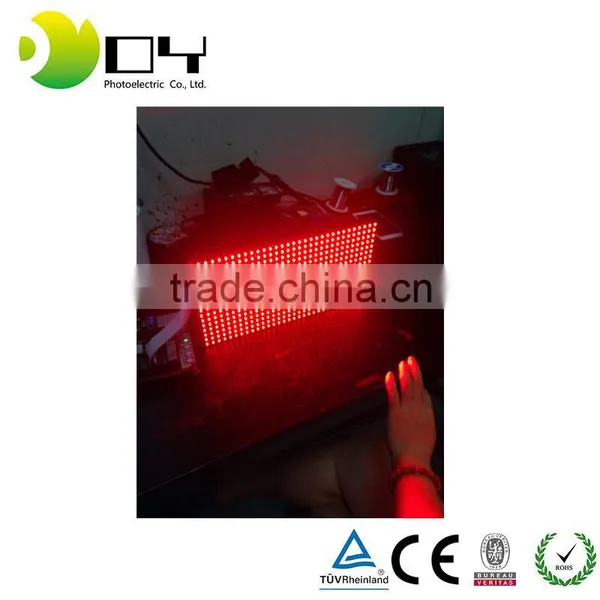

p10 outdoor led module

1) Outdoor advertising red led display board
2) CE&ROHS certificate
3) stability
4) low power consume

Culture

Technical Parameters

1. Module

Description	Technical parameter
Unit module	Module size	320*160mm
	Pixel pitch	10mm
	Pixel density	10000dots/m2
	Pixel configuration	1R
	Led specification	546
	Pixel resolution	W:32dots*H:16dots
Cabinet	Dimension	960mm960mm150mm
	Quantities of module	18pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	10-300m
	Temperature	Storage: -35°C~+85°C
	Temperature	Working: -35°C~+85°C
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	100-150W
	Max. Power consumption	≤200-300W/sqm
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4 scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥600Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 2500cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--65%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥10,000hours
	Life span	≥100,000hours
	Flatness	Tolerance of interpixel ≤0.3mm
	Flatness	Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software	LED media player
