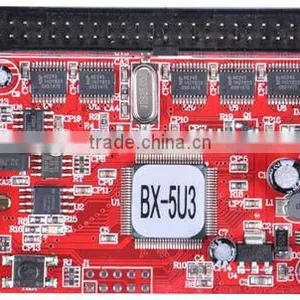

P10 BX-5U3 Usb Led Display Module Controller

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BX-U3

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BX

Model Number BX-U3

Specifications

1.Model:BX-5U3
2.Communication mode: USB
3.Support monochrome/dual-color LED screen
4.Widely used in large area LED displa

Technology parameter:

Product model	BX-5U3
Product status	The latest 5th generation products,put into market on March 28,2012.
Control area	Single color128K: 320016 320032 268848 204864 179280 153696 1280112 1024128 Dual color64K: 320016 204832 134448 102464 89680 76896 640112 512128
Memory storage	2MByte
Screen types	All kinds of single and double colors LED screen
Software function	Screens cluster management/multi-program/multi-areas display/multi-languages
Program type	Normal/Shared program
Program quantity	Support 128 programs,24 areas for each program
Area type	Image/text/animation/lunar calendar/digital clock/analogue clock /timer/temperature/temperature & humidity
Frame mode	Most advanced colorful / magic graphics frame/Area frame
Background	Support text/image background
Time mode	Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode	USB download
Interface	1 nos 50 PIN/128 lines
Sensors supported	Supported temperature and humidity sensors
Remote control	Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation	16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode	Auto-timing powered on/off /remote control
Voltage	5V(3.5V~6.5V )
Maximum power	≤2W
Temperature	-40°C~80°C
Secondary development	Provide the DLL and corresponding demos
Software	LedshowTW2012
User manual	LEDshowTW 2012 software user manual
Adaper	HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12
