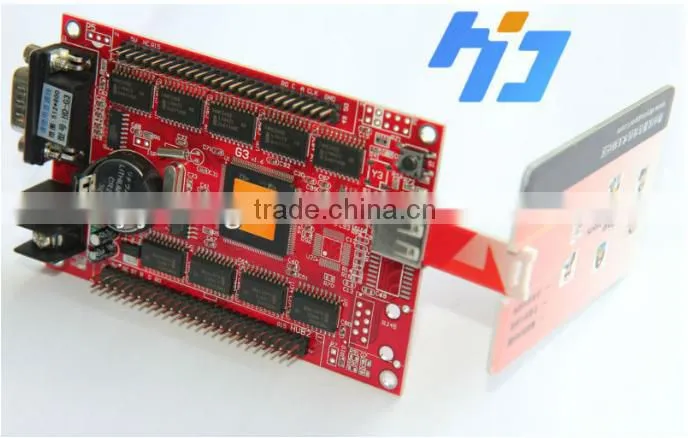

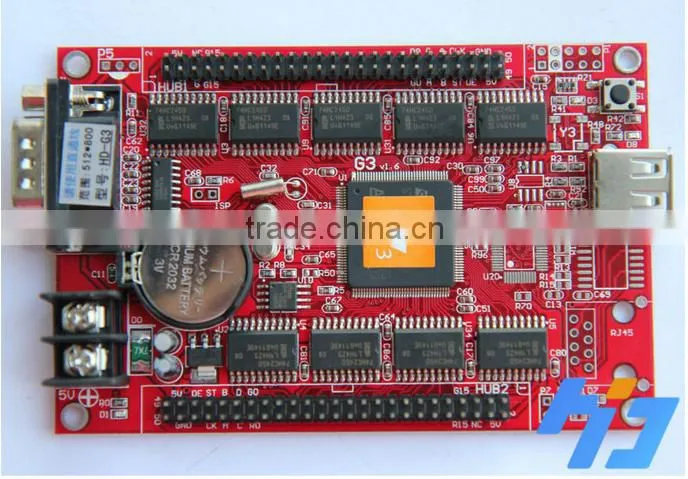

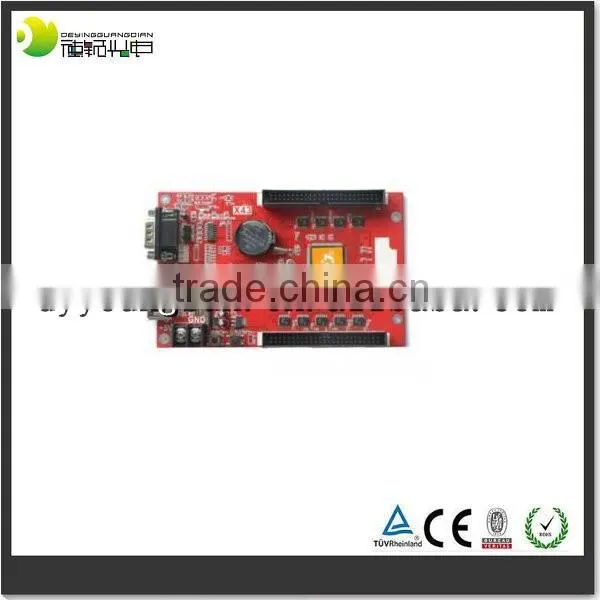

high quality led screen control card p10 rgb led display control card
- 2000 Piece / Pieces per Month
- shenzhen for led control card
- T/T Credit Card
- SP107E Programmable RGB APP Music Led Pixel Light Stripe Controller for WS2812 WS2801 Dream Color Led Strip
- Gledopto Pro 5 IN 1 ZigBee and 2.4GHz RF Controllable LED Receiver GL-C-001P 12V-54V
- Philips SES LSM1010 Occ PIR WH
- Smart Home Zigbee Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
Product Details
Place of Origin: | China | Brand Name: | HD | Model Number: | G3 |
Type: | Remote Control | Max. Load Power: | 0.5w | Voltage: | Other, 4.5-6V |
Product Description
Specifications
1.Single & dual color&tricolor
2.U-Disk updated program
3.IP recognize automatic
4.Support 256PCS P10 single module
Product type | USB and serial port led display card HD-G3 |
Control range | Single color:512*800 ,256*1600 Dual color:512*400 ,256*800 |
Memory | 2M or 8M (can be expanded) |
Interface | 4 of Hub08, 8 of Hub12;no need transfer board |
Scan mode | 1/16, 1/8, 1/4, 1/2 and static scan etc. |
Communication | RS232 (communication line: 2-2 3-3 5-5 directly) |
Time switch | Define to turn on or off |
Program | 20No. |
Time effects | Perpetual calendar and virtual-clock |
Districts | 5 districts |
Clear display effects | More than 30 clean display effects |
Magic boarder | More than 200 types of boarder effects. (And could set by users) |
Picture | GIF, JPG, JPEG, PNG, BMP, TXT, RTF etc. |
Voltage | 4.5-6v |
Power | 0.5W |
working temperature | -30°C ~+70°C |
Warranty | 1 year |
Software | HD2015 V4.08 |
