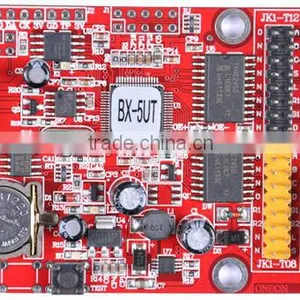

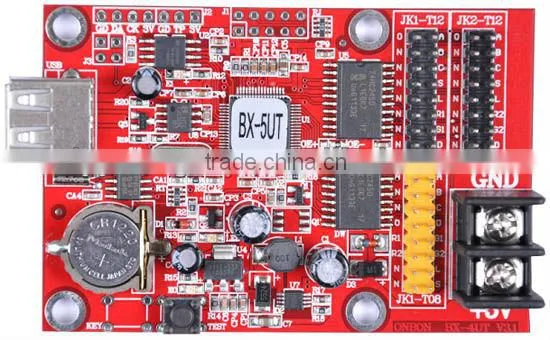

BX-5UT Led Asynchronous Display Module Control Card

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BX-UT

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BX

Model Number BX-UT

Specifications

1.Communicate mode: USB download
2.Advantage:easy to install, free wiring
3.Support:monochrome dual-color LED scree

Technology parameter:

Product model	BX-5UT
Product status	The latest 5th generation products,put into market on March 28,2012.
Control area	Single color 8K 51216 25632 Double color 4K 25616 12832
Screen types	All kinds of single and double colors LED screen at the height of 36 pixels
Software function	Screens cluster management/multi-program/multi-areas display/multi-languages
Program quantity	Support 128programs,8areas for each program
Area type	Picture and text/single line text/animation/lunar calendar/digital clock/ analogue clock/timer/temperature/temperature & humidity
Program type	Normal/global/real-time/shared/self-adapted program
Frame mode	Most advanced colorful / magic graphics frame/Area frame
Background	Support text/picture/animation background
Time mode	Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode	USB download
Interface	1groups T8 and 2 groups of T12
Sensors supported	Supported temperature and humidity sensors
Remote control	Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation	16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode	Auto-timing powered on/off /remote control
Voltage	5V(3.5V~6.5V )
Maximum power	≤2W
Temperature	-40°C~80°C
Secondary development	Provide the DLL and corresponding demos
Adaper	Without
Application fields	Specially used in car and small area strip LED display
Software	LedshowTW2012
User manual	LEDshowTW 2012 software user manual
