factory wood pellet production line
Lara huang
E:sales12(@)

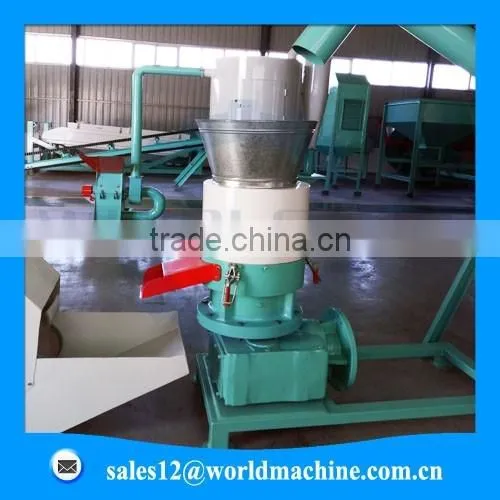

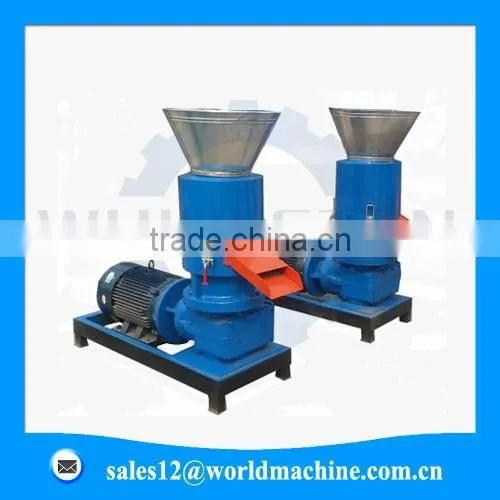

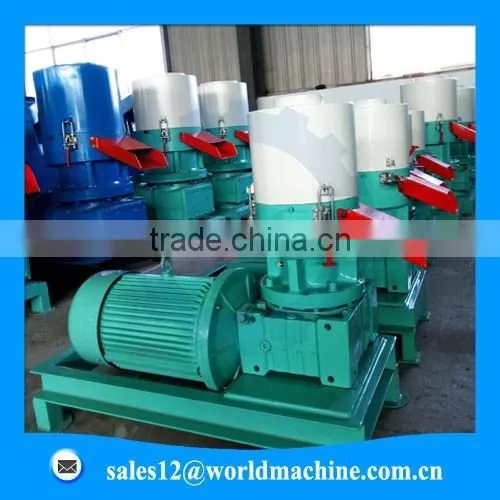

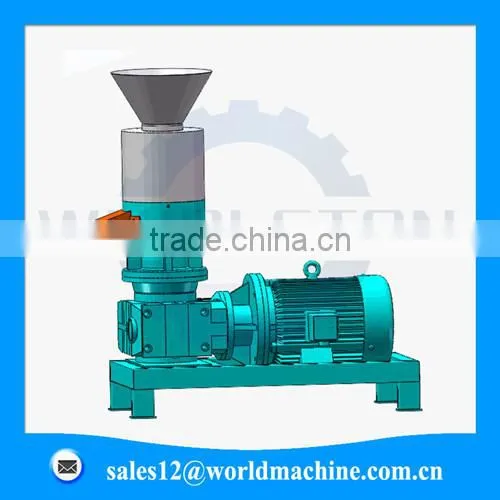

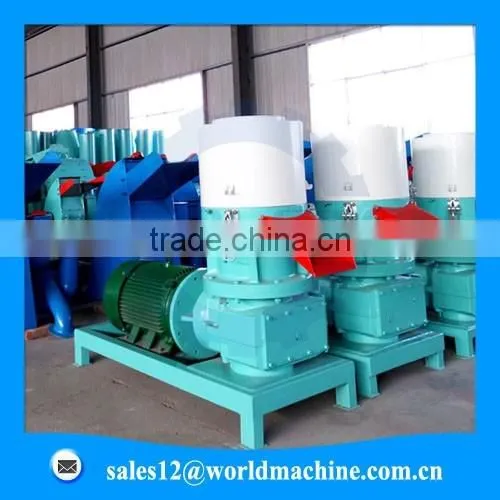

With small size and cheap price, our flat die pellet mill is an ideal choice for small scale pellet production. It can not only produce animal feed pellets, but also make wood pellets as green fuel with almost all kinds of biomass materials. The finished pellets have smooth surface and high density. Electric pellet mill adopts electric motor to drive the machine, which is environment friendly and energy saving.
Features of wood pellet production line
1. Motor is adjustable according to the voltage of your region.
2. Besides the alloy steel flat die, we can supply the stainless steel flat die, double working life.
3.Both the flat die and rollers adopt superior alloy steel which has high wear resistance and long service life.
4. Both sides of the flat die can be used, so that the service life is doubled.
5. The die and rollers can be changed fast and conveniently due to the quick disassembling type precisely-cast die clamp.
6. The mill adopts gear transmission, having low noise and good cushioning effect
7. Voltage can be customized to meet the requirement of your local conditions.
8. All machines CE certified which proves the excellent quality of our machine.
Wide Application of wood pellet production line
Suitable for home use, farm use, and small scale industrial production.
Suitable for making feed pellets for various poultry and livestock: chicken, rabbit, etc
Suitable for making wood pellets for home heating stoves, hot water boilers and industrial boilers, biomass power plants and so on.
Produced wood pellets can also be used as animal bedding.
Working principle of wood pellet production line

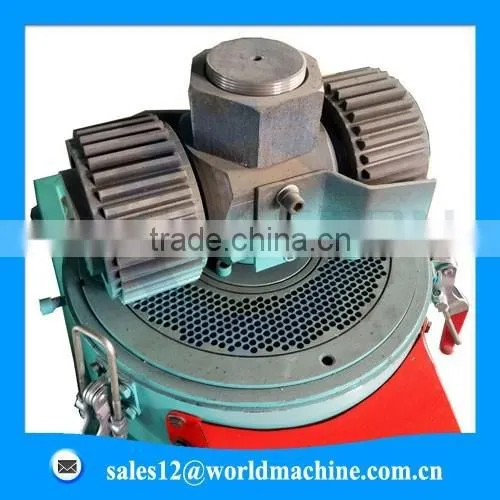

When the pellet mill works, the material will be pressed into the die hole under the extrusion force between the die and rollers. Then the pellets will be cut into certain length by the cutting knives near the die.
The diameter of the die hole will determine the diameter of the pellets. We have flat die of hole diameter from 2.5-10mm for making feed pellets and 6-12mm for making wood pellets for you to choose.
You can get different pellet length by adjusting the distance between the die and knives.
Raw materials for wood pellet production line
Raw material for animal feed pellets:
Various grains including corn, soybean, soybean meal, rice, alfalfa, etc.

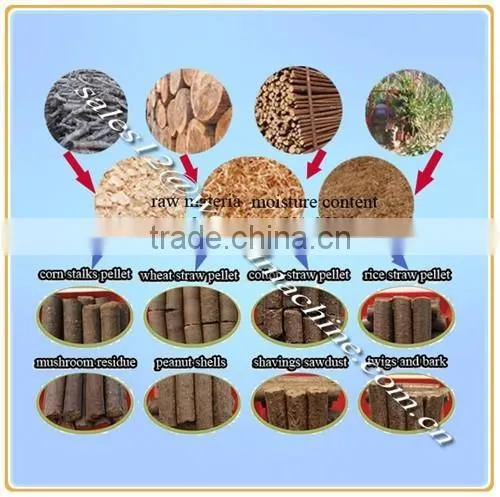

Raw material for wood pellets:
Almost all biomass materials such as wood chips, wood shavings, sawdust, bamboo, corn cobs, rice husk, coffee husk, palm kernel shell, peanut shell, sugarcane bagasse, straw, leaves, grass, paper, etc.

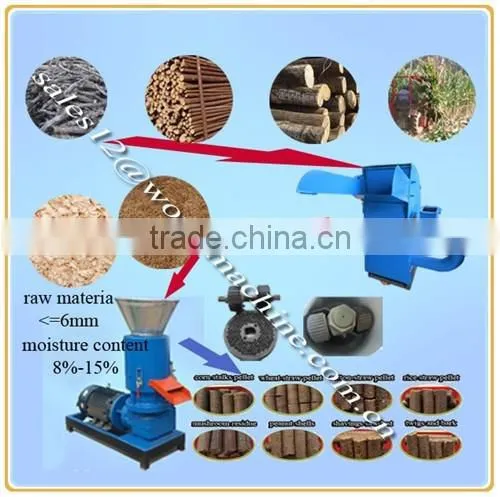

Requirements for Raw Materials
Size: less than 6mm, otherwise you may need a hammer mill.
Moisture content: 8%-15%.
(These can affect the quality of pellets and the productivity of the pellet mill)

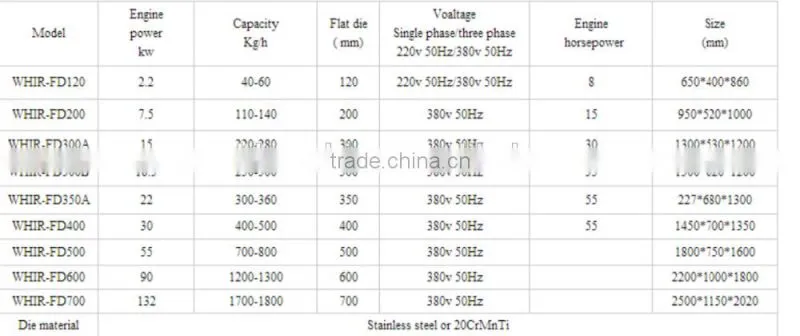

Technical Data of wood pellet production line
wood pellet production line

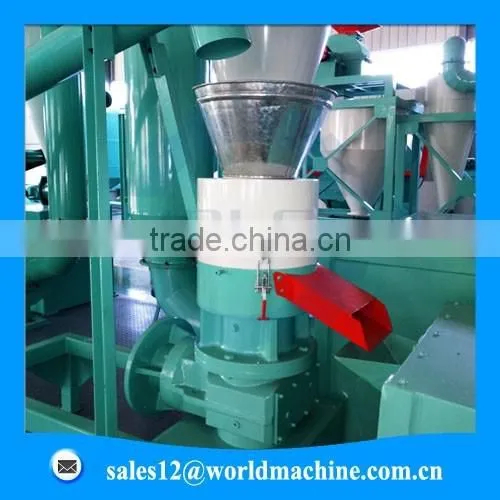

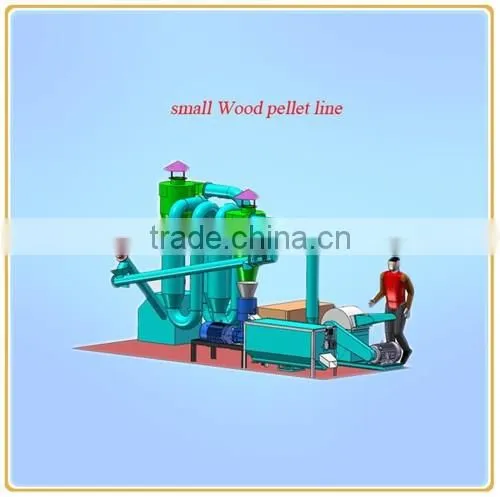

Simple line for your reference :
slicer and shredder- Rotary hoist - cyclone( Airiock) - Coal hot air furnace - air flow dryer - Fan - cyclone - Rotary hoist - fuel wood pellets machine - bucket elevator - vibrating screen.
Any question, pls contact me :sales12@worldmachine com cn

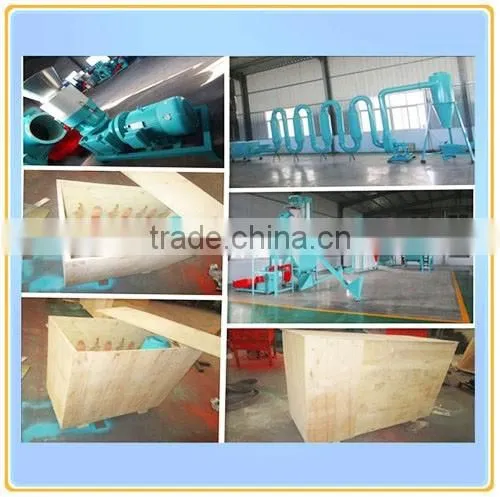

packing of wood pellet production line
wooden case usa ,to protect the mill from being dammaged.
1. Provide free technical supporting, free design of pellet plant, and timely after sale-service.
2. Provide 12 Months Warranty
3. Provide working video, service manual and drawing of machine if you need.
Zhengzhou Whirlston Trading Co.,Ltd is a professional manufacturer of pellet machine and supplier of other different machines. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
1. Have your machine passed CE Certificate?
Yes, all of our cooking oil press machine had passed CE Certificate
2. Are you manufacturer or trading company?
We are manufacturing and trading company, and will supply you high quality products.
3. What is the size of pellet ?
It depends on the size of the flat-die , while the size of the die is from 2mm to 12mm.
We will appreciated if these following 4 tips contained in your inquiry:
Tips 1. What is the size of the pellet?
Tips 2. What is the main usage of pellet ?
Tips 3. What is the capacity you want ?
Tips4. Would you like the electric motor or the diesel engine ?
Thank you and you will get quickly and effectively responses.
Lara huang
E:sales12(@)
