(website/Wechat: Hnlily07) Attractive Price CE Wood Branch Mill Machine
US$ 8,250 - 13,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
WHIR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or Others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(website: Hnlily07) CE Ring Die Wood Chips Pellet Machine / Lowest Price 2T/h Rice Husk Pellet MakerUS$ 21,800 - 93,750MOQ: 1 Unit -
(website: Hnlily07) Eneger Saving 1.5Ton Per Hour Alfalfa Pellet Maker/alfalfa Pellet Making MachineUS$ 27,800 - 93,750MOQ: 1 Unit
-
(website: Hnlily07) Complete Wood Pellet Production Line / Ring Die 10mm Straw Pellet Machine For ExportUS$ 21,800 - 93,750MOQ: 1 Unit
-
(website: Hnlily07) 1.5-4T/h Plam Fiber Pellet Machine/ EFB Pellet Mill With ISO / Sawdust Wood Pellet Mill With CEUS$ 21,800 - 93,750MOQ: 1 Unit
-
(website: Hnlily07) High Quality Pine Wood Pellet Machine/ Best Price China 6-12mm Wood Pellet MachineUS$ 21,800 - 93,750MOQ: 1 Unit
Condition
New
Place of Origin
Henan, China
Brand Name
WHIR
Model Number
WHIR-FS80B
Voltage
380V
Power(W)
90kw
Dimension(L*W*H)
1800*800*1150mm
Weight
1200kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
(Skype/Wechat: hnlily07) Attractive Price CE Wood Branch Mill Machine
Attn: Lily Wang
Mobile/What's App: 86-136 3382 8547
Skype/Wechat: hnlily07
Mail: sales01(@)
Product Description

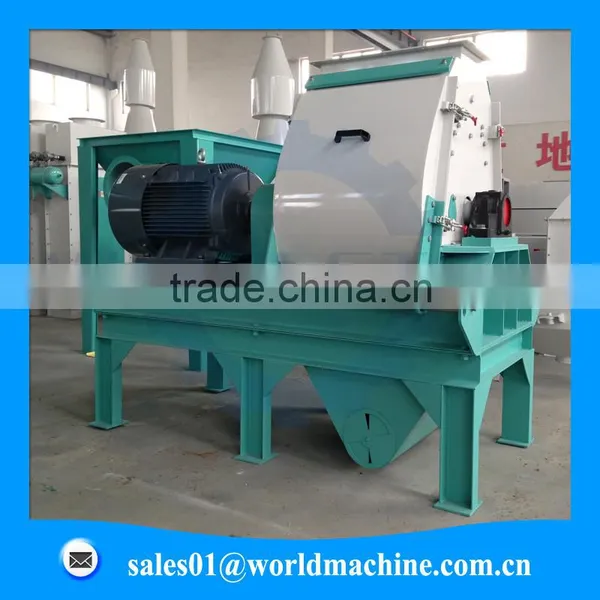

1. Wood Branch Mill Machine Introduction
The Wood Branch Mill Machine is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials. It is suitable for milling raw material like wood, tree branch, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 2-5 mm, then it is suitable for further processing.
2. Wood Branch Mill Machine Features
*The Wood Branch Mill Machine USES direct transmission, scientific and reasonable hammer sieve clearance, change the clearance, can be coarse, fine crushing, crushing chamber secondary attack technology;
* Using imported SKF high quality bearing, low temperature operation;
* feeder can be equipped with iron removal equipment by your requirements;
* High output, electric saving
* Finished product granularity more fine and homogeneous;
* Finished product granularity more fine and homogeneous;
* Screen mesh adopts staggered mesh sieve, discharge smooth;
3. Wood Branch Mill Machine Application
Wood Branch Mill Machine can grind many kinds of biomass, the output can be produced into feed pellets or wood pellets by pellets mill.
* Grinding the granular raw materials, such as corn, sorghum, wheat, beans, etc.
* Grinding feed ingredients for pet, livestock, poultry, aquatics etc.
* Grinding raw materials by large and medium farms.
* Grass and pharmacy fine grinding.
* Widely used to crush many kinds of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes in pelletizing plants.
Data Parameters
Wood Branch Mill Machine Specification and Technology Data
Model |
WHIR-FS60B |
WHIR-FS80B |
WHIR-FS100B |
WHIR-FS120B |
|||
Rotor Diameters |
660mm |
660mm |
660mm |
660mm |
|||
Spindle Speed |
2980 R/Min |
2980 R/Min |
2980 R/Min |
2980 R/Min |
|||
Hammer Linear Speed |
78 M/S |
78 M/S |
78 M/S |
78 M/S |
|||
Crush Chamber Width |
600mm |
800mm |
1000mm |
1200mm |
|||
No. of Hammer |
112 Pcs |
128 Pcs |
144 Pcs |
156 Pcs |
|||
Power |
55 Kw |
75 Kw |
90 Kw |
1100 Kw |
132 Kw |
160 Kw |
|
Capacity |
Coarse Crush |
9 |
12 |
14 |
16 |
18 |
20 |
|
Fine Crush |
2 |
3.5 |
4.5 |
6 |
8 |
10 |
|
Packaging & Shipping
Contact
Attn: Lily Wang
Mobile/What's App: 86-136 3382 8547
Skype/Wechat: hnlily07
Mail: sales01(@)
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
