combination wool washing machine with capacity 3t-20t/day/ wool fiber processing line/dirty sheep wool washing plant
Greater capacity Greasy Sheep Wool processing equipments .
1. Washing capacity of wool equipment is 3t-20t/day, 300kg-1t/h.
2. The whole production line's length is about 63m-300m according to different capacity type.
3. The wool equipment has steam boiler, it raw Greasy Sheep Wool processing equipments and drying it
4. Wach grease and dirty in to sheep wool away, Professional Greasy Sheep Wool processing equipments manufacturer
5.Material:SUS304,316L.
Greasy Sheep Wool processing equipments Technological Process:
First feeder →Five cylinder Opener→first washing bowl →first squeeze press →second washing bowl →second squeeze press →third washing bowl →third squeeze press →forth washing bowl →forth squeeze press →fifth washing bowl → fifth squeeze press → feeder → dryer
Greasy Sheep Wool processing equipments Machine performance and structure characteristics
1, this machine is in front of the cashmere baptism, by the five tin tin Lin Kaisong, four Lin Kaisong remove clutter in cashmere, etc.
2, rolling cars use spring pressure, the maximum working pressure can be up to 12 tons, roller body using cast iron pieces.
Three, one, two, dip tank main channel adopts with overflow tank bottom tip of the slot, big melting lotions use cycle is long, easy to clean, smooth hole placed, thoroughly overcome the bottom leakage, leakage of MAO, high rate.
4, all dip tank, rolling car transmission part adopts cycloidal reducer, high mechanical efficiency (above 90%), durable, cover an area of an area small, easy maintenance, save energy.
5, all dip tank main channel and the auxiliary tank adopts stainless steel sheet (SUS304), argon arc welding, bright and clean and beautiful, use cycle is long.
6, all dip tank rake part adopts crank shaft type transmission, smooth operation part number less, easy maintenance, use cycle is long.
7, low water pump using large mouth diameter head cast iron pump.
8, dryer conveying curtain speed regulating device for the transmission, can according to different process
Requires changing speed, long service life, convenient maintenance, high transmission efficiency, etc.
Questions for customer
1. What's the capacity you need? We will recommend the suitable wool noils processing equipment for you.
More photos for the wool cashmere scouring equipments

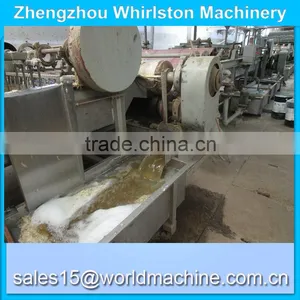

1Raw wool washing machine ,If you want to see working video, please contact me!
Raw Wool Feeder is used for feeding or cotton to opening and washing and drying.
2. Raw Wool Five Cylinder Opener,It is suited for opening and cleaning grease of wool, cashmere and camel hair to remove the sandy,soil,Weed sand burrs etc impurities.
3. Raw Wool Washing Machine is suited for washing and removing the weeds crumbs, sandy,soil and impurities from opening wool .then will be for the use of drying.
4. Squeeze press
5. Raw Wool Dryer is suited for drying wool.
Finaly product:
Finally packing:
Delivery:
Accepting custom made of single(standalone)machine for Hopper feeder,five cylinder opener,squeeze press,scouring bowl,drying,bale press,tray,etc any parts of wool processing line.
We also provide used combination wool washing machine
