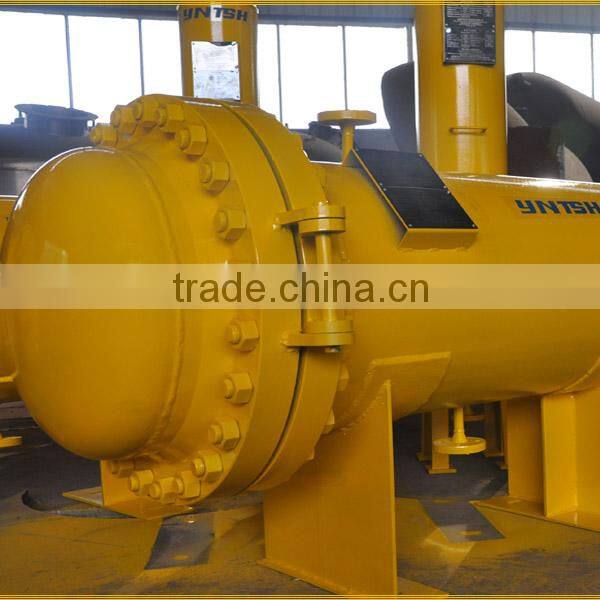

Natural Gas Filter Separator (InoGAS-serial ,natural Gas Separating Solution)
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
99.9%
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dry Gas Filter Separator Gas Filter Application for Gas Solid Filter SeparatingUS$ 5,000 - 100,000MOQ: 1 Set -
INOCO High Efficiency Gas Filter Auto Gas FilterUS$ 5,000 - 100,000MOQ: 1 Set
-
INOCO High Efficiency 3 Phase SeparatorUS$ 5,000 - 100,000MOQ: 1 Set
-
INOCO High Efficiency Gas Liquid Coalescer FilterUS$ 5,000 - 100,000MOQ: 1 Set
-
INOCO High Efficiency Gas Liquid SeparatorUS$ 5,000 - 100,000MOQ: 1 Set
Condition
New
Type
Gravity Separator
Production Capacity
99.9%
Place of Origin
Jiangsu, China
Brand Name
Inoco
Model Number
InoGAS-serials
Voltage
non
Power(W)
non
Dimension(L*W*H)
customized
Weight
customized
Certification
CE
Warranty
24 month
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1,Type:natural gas filter separator .2,Fabrication code:ASME VII Div.1
3,Material: carbon steel
InoGAS serial natural gas filter separator
Scope of Application:
1,Long transmission pipeline stations 2,Natural gas conditioning plant 6,Urban gas
3,Light dydrocarbon processing plant 4,Gas booster station
5, Gas power plant
Performance indicators
Filter effect: 99.99% removal of solid particles≥0.3μm
Coalescence ability: available for separation of liquid droplets with particle size >0.1μm
Separation effect: available to reduce liquid content in the down stream gas of the filter separator to 0.003ppm
Initial pressure difference: less than 0.02MPa
Max. allowable operating pressure difference: 0.15MPa
Filter structural strength: >0.5MPa
InoGAS Series Filter Separator Structural Features
Site level and pressure display, remote transmission available upon user’s request
Manual and automatic liquid discharge modes optional for users
Available for fast-opening blind or flange connections
Available for horizontal or vertical erection based on site situations
Filter elements with different materials optional based on the media
Reasonable equipment layout, easy for installation and maintenance
