Gas Filter Separator With Cartridge to Remove Solids and Mesh Pad to Remove Mist Quality Choice

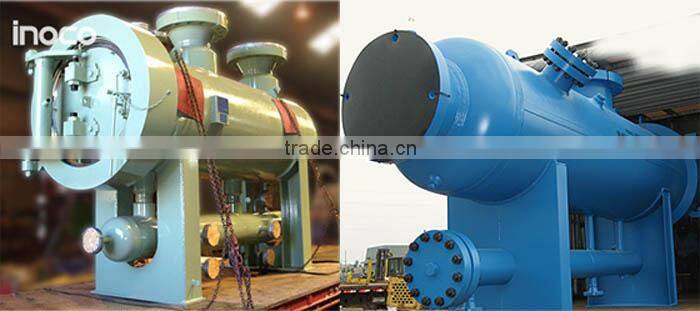

1,INOCO-500series gas filter separator

Description >>

INOCO 500 Series filter separator is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Filter separator is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc. Series 500 Separating filter is combined by YNT mesh demister and YNT coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered.

Technical parameters >>
1   Work pressure: 0.1~40.0Mpa                                        2   Work temp: -40~+300℃
3   Separate accuracy: 0.3,1,3,5μm                                   4   Separate efficiency: 99.98%
5   Max flowrate: 6500000Nm3/h

Parameters >>
1  Design code ASME sec. vill div.1

2  Available material: Carbon steel, SS316/304...
3  Finish: Blasted and painted for cs glass bead for ss vessels, or to meet spec.
4  Bolts and hex nuts: Plated carbon steel,or to meet specification
5  O’RINGS: buna n or epdm standard viton, TEV or other optional

Options >>
Quick open blind plate(insert type,hooptype,locked ring type)
Relief valve
Drain valve
Inlet/outlet ball valve
Differential pressure switch
Differential pressure indicator
Level indicator
Level switch
Skid-mounted

2, Gas filter separator  Operation priciple

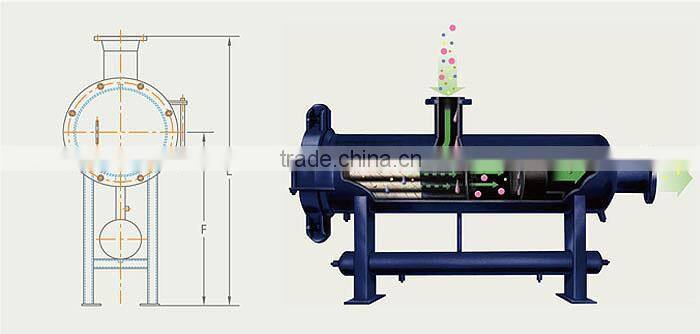

The wire mesh filter separator working process has three stages:

Step 1: Gravity separating
Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;

Step 2: Screening holes separating
Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.

Step 3: Leaf separating

With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.

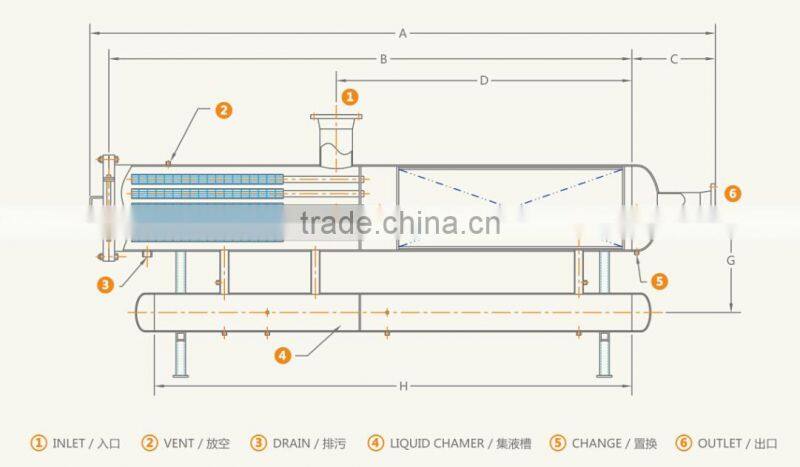

3, Gas filter separator Specification

4, Gas filter separator Filter element

Description >>

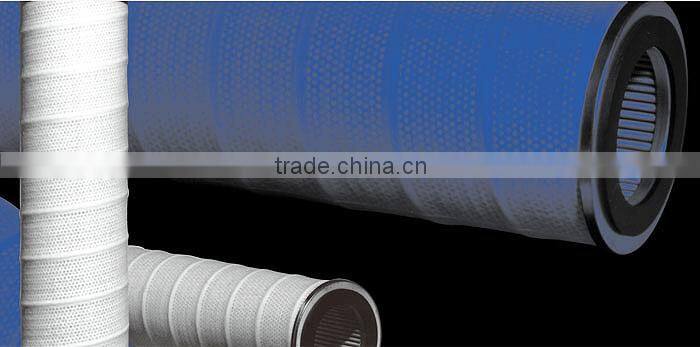

Gas-solid separation elements, is core component of dry air filter and used to remove particulate impurities from natural gas, liquefied petroleum gas, hydrogen, natural gas and petrochemical plants dry gas and etc.
PF series filter elements is using multi folding techniques, compared to ordinary cylindrical cartridge, the filter area is four times or more

Product structure >>
Size: outside diameter 68,90,110,150mm and etc
length: 300mm ~ 2000mm
Filter material: Plant fibers, Glass fibers, Polyester fibers, Metal fibers
Filter frame: Stainless steel or other materials

Performance parameters>>
Initial pressure drop: ≤ 0.012MPa
Filter structural strength: more than 1MPa
Design temperature range: ≤150 ℃
Filtration precision: 0.3,0.5,1,3,5,10 μm

5, Gas filter separator Mesh demister

Description >>

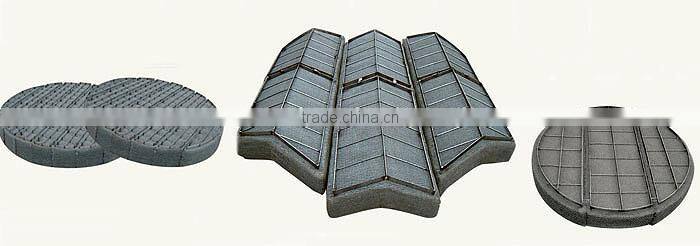

Wire mesh demister, also known as wire mesh mist eliminator, screen capture demister, demister. Primarily used for the separation of diameter greater than 3μm ~ 5μm droplets.
When the gas mist with a certain speed to rise through the filter mesh of the intermediate grid, the inertia of the rising mist, make the filaments collide with the mist and adhere to the surface of the filaments.
Mist further spread on the surface of the filament, as for itself gravity, the mist is formed larger droplets and flow along its filament interleaving.Along with wettability of the filaments, capillary action and surface tension of the liquid filaments the droplets increases, until the force of its own weight
exceeds the buoyancy of the rising gas and liquid surface tension, the drop was separated.

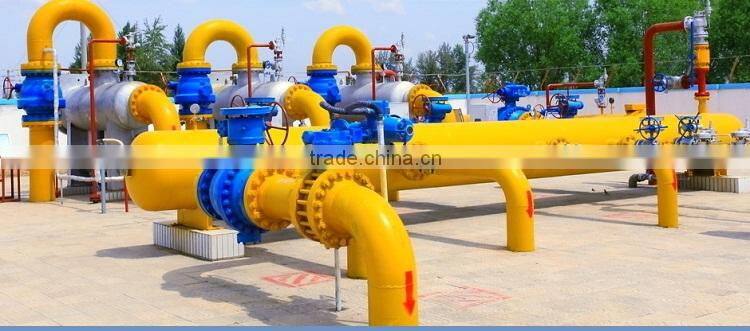

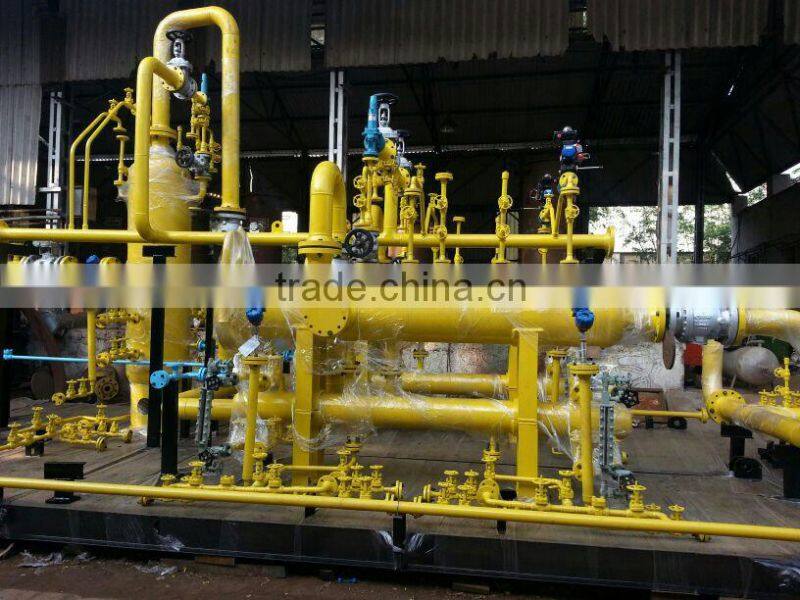

6, Gas filter separator Application cases

7, Inoco company capacity

Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.

8, Related products

1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER

11. HIGH PRESSURE FILTER

12. CARTRIDGE DUST COLLECTOR

13. AERATION CONE

14. CERAMIC MEMBRANE DUST REMOVAL FILTER

15. ULTRA PURE GAS FILTRATION SEPARATION

16. GAS MEMBRANE SEPARATION DEVICE

For more details pls contact Inoco sales team.
