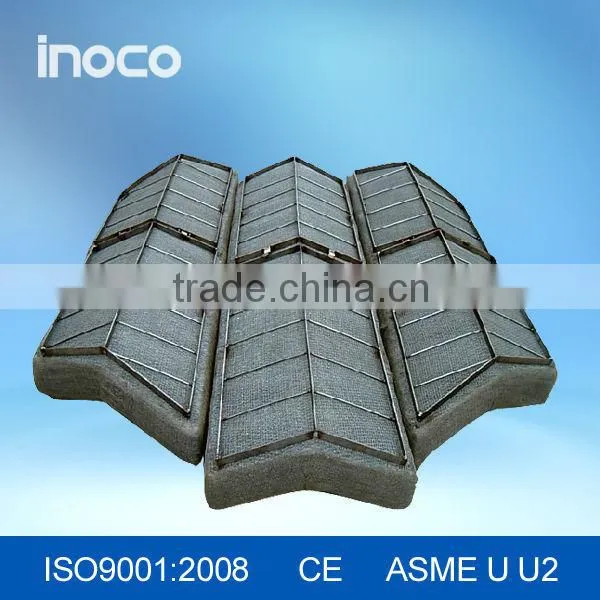

1,INOCO-SN-500 series wire mesh separator
Description >>
Wire mesh demister, also known as wire mesh mist eliminator, screen capture demister, demister. Primarily used for the separation of diameter greater than 3μm ~ 5μm droplets.
When the gas mist with a certain speed to rise through the filter mesh of the intermediate grid, the inertia of the rising mist, make the filaments collide with the mist and adhere to the surface of the filaments.
Mist further spread on the surface of the filament, as for itself gravity, the mist is formed larger droplets and flow along its filament interleaving.Along with wettability of the filaments, capillary action and surface tension of the liquid filaments the droplets increases, until the force of its own weight
exceeds the buoyancy of the rising gas and liquid surface tension, the drop was separated.

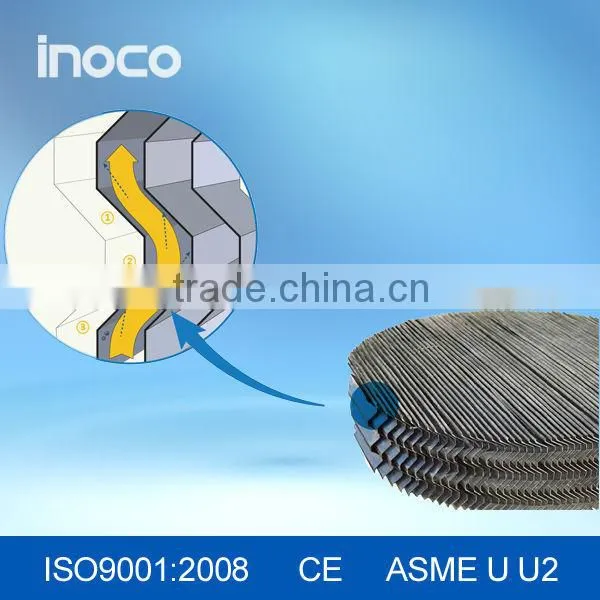

2,INOCO-SN-700 series vane separator
Description >>
INOCO series 700 separating filter is combined by YNT vane separated and YNT coalescence elements. The droplets more than 5-8um can be 100% separated and the solid particles 0.5um are 99% filtered.
Main performance >>
Van separator can treat various ratio of gas-liquid medium. It is having high efficiency to solve large amounts of liquid.
Structure feature>>
1 The vane element can be fixed or movable structure
2 Welded or bolted bracket
3 Available to add the self-cleaing system
4 Available to increase the variety of flow distribution structure

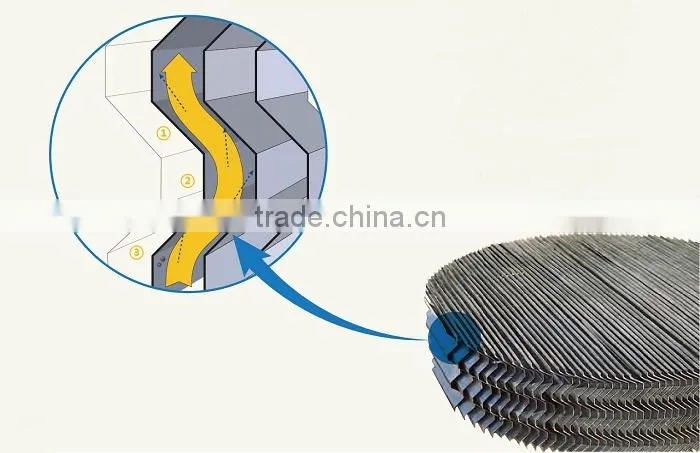

3, Vane separator Operation priciple

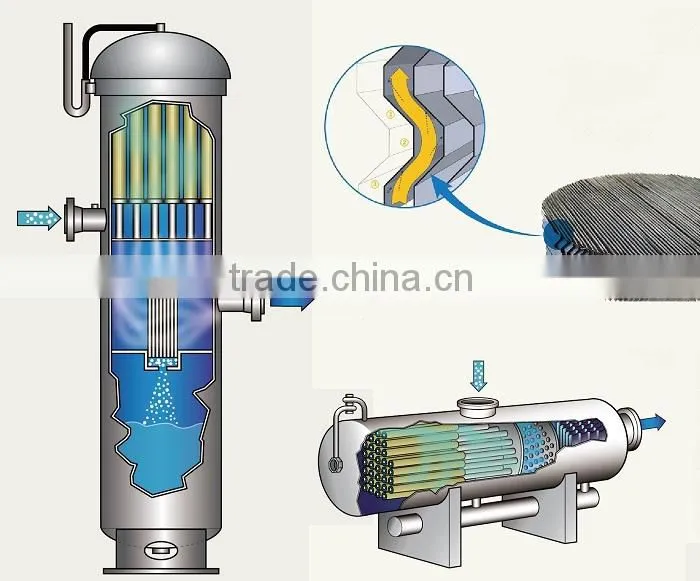

Three steps of separating process for cartridge vane filter separator:
Step 1: Gravity separating
Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;
Step 2: Screening holes separating
Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.
Step 3: Leaf separating
Leaf separator is used to remove liquid impurity substance which will be gathered in a proper container inside.
4, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
5, Related products
1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
