Product Description

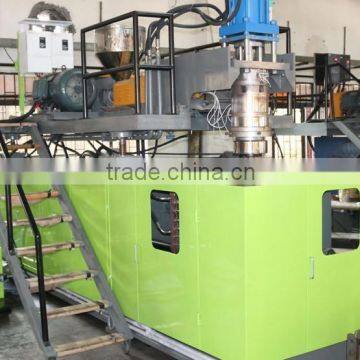

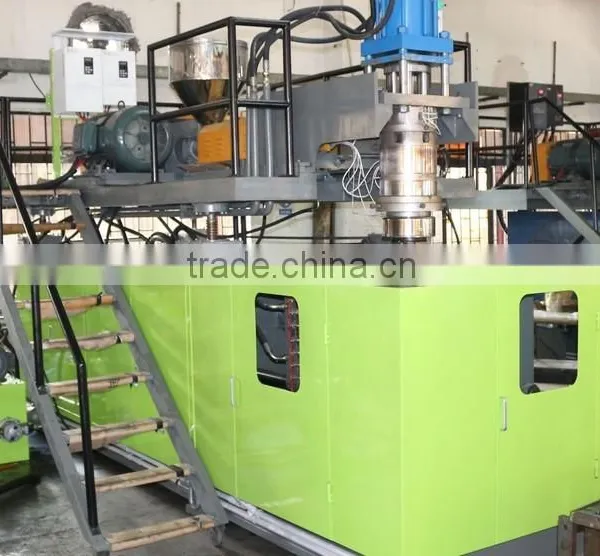

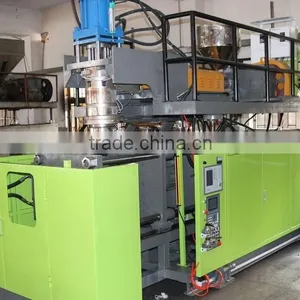

This machine is made up of plasticizing system, die head, clamping structrue, hydraulic system, electric system, pneumatic system and cooling system, Product is suitable for packaging of, petroleum, liquid, , food productions and special-shaped products with the volume up to 90L. Available material PE, PVC. PP, PETG...
Max product volume up to 220L
Equipped with 1 to 4 die head
Offer doublle layor, three layor ang visual stripe
"parison controller " can be adopted
Accumulator die head
More energy saving
Other accessories can be chosen by customers
Technical characteristic
PLC+touch screen makes the operation clearer and easier.
Accumulator die head of high-quality nitriding steel adopt mirror surface treatment
Quicker reload material and color masterbatch.
Unique "linear guider" to the clamping structure to ensure uniformity aesthetics.
Hydraulic system designed under energy-saving principle, reduce energy consumption by 20%-40% compared with the conventional model. Greatly lower the oil temperature and extend the service life of hydraulic components.
Variety of functions for different products: Bottom blow, lift, encapsulation, extension of material, rotation, sub-mold, robot parison controller, etc.
|
Main parameter |
Available material | PE,PP^^ | |
| Max. Product Volume | 220L | (L) | |
| Dry Cycle | 280 | (pcs/h) | |
| Machine Size | 6.0*3.0*4.9 | (L*W*H)(m) | |
| Machine Weight | 30 | (Ton) | |
| Installed capacity | 231/253 | KW | |
|
Plasticizing system |
Screw Diameter | 120 | (mm) |
| Screw L/D Ratio | 33 | L/D | |
| HDPE output | 350 | (kg/h) | |
| Screw Heating Zone | 6 | (Zone) | |
| Screw Drive Power | 110/132 | (KW) | |
|
Extrusion die head |
accumulator die head | ||
| NO. of Heating Zone | 6 | (Zone) | |
| Die Heating Power | 30 | (KW) | |
| Max. Die Diameter | 580 | (mm) | |
| Accumulator capacity | 25 | (L) | |
|
Opening and clamping system |
Clamping Force | 900 | (KN) |
| Mold Stroke | 700-1600 | (mm) | |
| Mold Template Size | 1350*1600 | (W*H)(mm) | |
| Pneumatic system | Blowing pressure | 0.8 | Mpa |
| Air consumption | 1.8 | M 3 /MIN | |
| Hydraulic system | Oil pump power | 55 | Kw |
| Cooling system | Cooling water pressure | 0.3 | Mpa |
| Water consumption | 220 | L/MIN | |

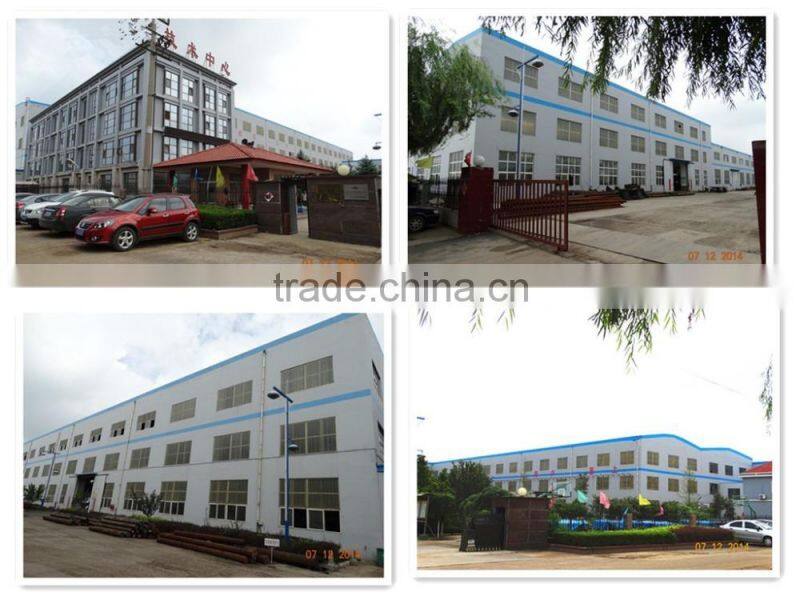

Qingdao Suntop Energy Equipment Co., Ltd. is specialized in the development and production of various types of plastic blow molding machine, plates, fittings and ancillary equipment. The site is located in Qingdao Jiaozhou Road, west of Xinjiang, north of Taiwan East from Qingdao International Airport only half an hour's drive away.
Western European integration technology company, specializing in design and production and sale of three categories, twenty-three kinds of series, one hundred and eighteen kinds of standard models of automatic blow molding machines, blow molding machines. Machine suitable for the production from 5 ml to 5000 liters of plastic bottles, barrels, cans, tools, luggage, car shaped hollow member, the hollow seats, fuel tanks, trays, drums and other hollow products. We need to be configured according to the single-mode head, double head, three die, four die, six die, single, double, three, four, five, six - first class. The company has 10 years of professional design and manufacturing experience, and has debugging, a large number of rich practical experience of skilled workers and technical personnel maintenance services. Users can produce energy for processing a variety of special raw materials and special blow molding machines, blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, PAN, PPE, POM, TPE and other products production.
Shun Tai energy continuous technological innovation, and always with quality products warmly welcome the arrival of friends.
