More practical POS Customer Display
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- SHENZHEN
- Credit Card
You May Like
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | TCANG |
Product Description

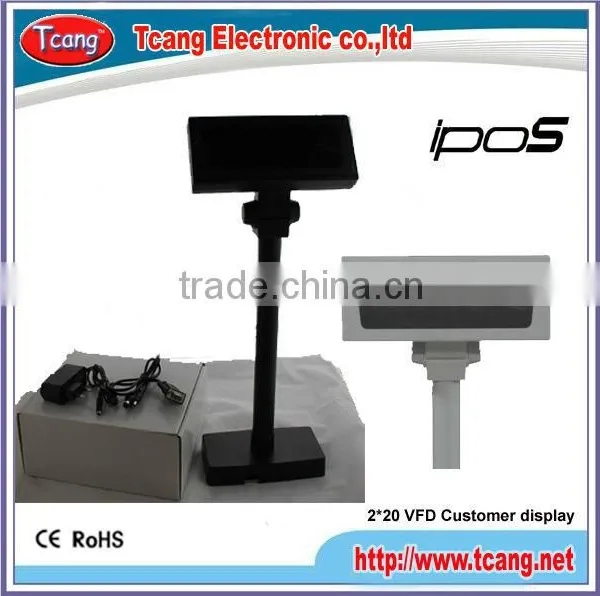

20X2 Character VFD customer pole display
Feature
- Beautiful shape
- Display Angle can be around up-down adjustment.
- Display intuitive interface
- Easy installation
- Show time while driving interface with the box
Specification:
Communication
- Interface: Serial port (RS-232), USB port as optional
- Baud rate: 9600bps
- Parity: None
- Data bit: 8bit
- Stop bit: 1bit
- No handshake signal
- By the power of the host computer DC12 (big 4ps interface).
- Display: VFD Bright blue-green fluorescent display .
- Display characters: 2 line x 20 characters / line, 40 characters, 5 x 7 Dots
- Character size: high 11mm x wide 7mm.
- MTBF: 25,000 hours
- Panel dimensions: 80(H) x 225(W)x37(D) mm
- Support dimensions:
Electrical
- By the power of the host computer DC12 (big 4ps interface).
Display method
- Display: VFD Bright blue-green fluorescent display .
- Display characters: 2 line x 20 characters / line, 40 characters, 5 x 7 Dots
- Character size: high 11mm x wide 7mm.
- MTBF: 25,000 hours
Dimensions
- Panel dimensions: 80(H) x 225(W)x37(D) mm
- Support dimensions:
Long support: 480mm (Contain base)
Short support: 225mm (Contain base)
Base dimensions: 185(L) x95(w) x25(H) mm
- Pitching move angle: 45°, Can provide comfortable, and adjust the visual Angle.
- Weight:1.2Kg (packing)
Environment:
- Operating Temp: -20~70
- Storage Temp; -40~80
- Operating Humidity: 10~85%
- Storage Humidity: 10~90%
Command Set :
- Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment, Don't need any driver, Only according to the format serial order set to send data can show content.
- With the function of opening the cash drawer All direction adjustable.
Application:
Its used in windows charge of Marketplace, Hospital,airdrome, Station, Post, Bank etc
.
