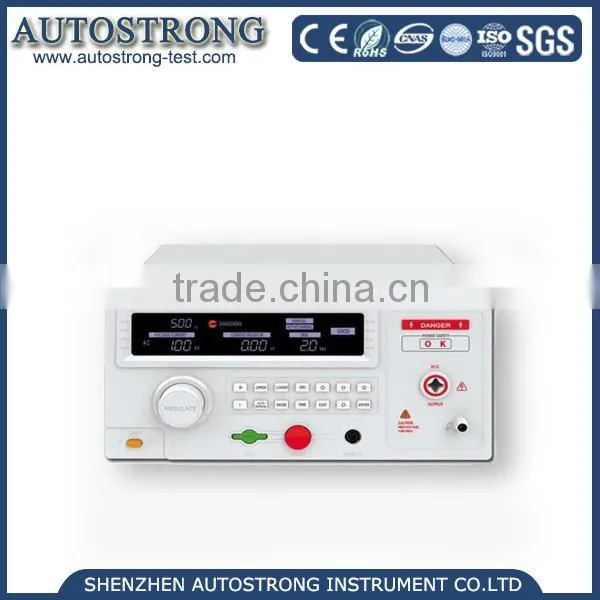

hipot test equipment hipot tester
1.Product details:
AC Hipot Test |
Rated Output |
500VA |
100VA (AC: 5kV/20mA) |
|
|
Output Voltage Set and Range |
0.2kV~5.00kV AC,100mA 10V/step |
0.2kV~5.00kV AC, 10V/step |
|||
Output Voltage Adjustable Rate |
±(2.5% of setting+10V) |
||||
Output Voltage Resolution/Accuracy |
10V, ±(2.5% of setting+10V) |
||||
Output Frequency Range |
50Hz, 60Hz (Optional) |
||||
Output Waveform |
Sine waveform, pure resistance, above 200V, distortion |
||||
Upper and Lower Limit Leakage Current Setting |
AC: Upper: 0.10~100.00mA, Lower:0.10~100.00mA(0=disable), 0.01mA/step |
AC: Upper: 0.10~20.00mA, Lower:0.10~20.00mA(0=disable), 0.01mA/step |
|||
Leakage Current Measurement Range |
0.100~3.499mA/3.50~100.00mA |
0.100~3.499mA/3.50~20.00mA |
|||
Leakage Current Resolution |
0.001mA/0.01mA |
||||
Leakage Current Accuracy |
±(2.5% of reading+5 counts) |
||||
Ramp-up Time Setting Range/Resolution |
1.0~999.9s (0=disable) 0.1s/step |
||||
Test Time Setting Range/Resolution |
1.0~999.9s (LLL=continues) 0.1s/step |
||||
Breakdown Current Measurement Range |
AC:0.00~40.0mA |
||||
Test Line Clear to Zero |
0~0.500mA, manual clear offset |
||||
|
Insulation Resistance Test |
Output Voltage Setting and Measurement Range |
100V ~1000V DC 5V/step |
|||
Output Voltage Resolution/Accuracy |
1V , ±(3% of setting+5V) |
||||
DC Ripple Coefficient |
≤5% (1kV DC, |
||||
Output Voltage Adjustable Rate |
±(3% of setting+5V) |
||||
Test Time Setting Range |
1.0~999.9s 0.1s/step (LLL= continues) |
||||
Lower limit of Insulation Resistance |
1~2000M |
||||
Upper limit of Insulation Resistance |
1~2000M (0=off) |
||||
Insulation Resistance Range |
1~2000M |
||||
Insulation Resistance Accuracy |
500~1000V: ±(3% of reading+8counts) 1~200M; |
||||
If you still have question,please feel free contact me
