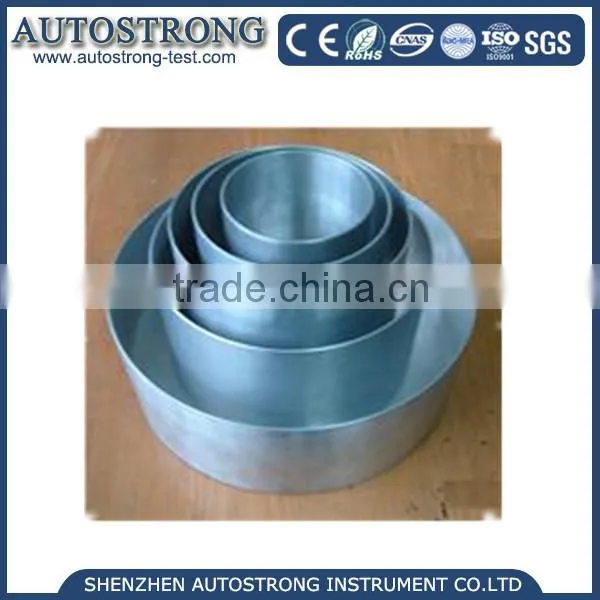

iec60335 test pans/vessel for induction hob element
Specifications
IEC60335-2-9 Standard Test Pans
1.One Year Warranty Period;
2.ISO9001:2008 certified factory supplier;
3.High Grade Quality;
Vessel for induction hob element ( IEC60335-2-9 clause 3 figure 101)
Diameter of cooking zone(mm) |
Approximate Dimension |
|||
A(mm) |
B(mm) |
C(mm) |
||
≤110 |
110 |
140 |
8 |
|
>110≤145 |
145 |
140 |
8 |
|
>145≤180 |
180 |
140 |
9 |
|
>180≤220 |
220 |
120 |
10 |
|
>220≤300 |
300 |
100 |
10 |
|
Note: The maximum concavity of the base of the vessel is to be less than 0.05mm,the base of the vessel is not to be convex. | ||||
Note:The maximum concavity of the base of the vessel is to be not more that 0.05mm.
The base of the vessel is not concavity.
Standard test pans (IEC60335-2-9 clause 3 figure 102)
Diameter of cooking zone(mm) |
Approximate Dimension |
|||
A(mm) |
B(mm) |
C(mm) |
||
≤110 |
110 |
140 |
2 |
|
>110≤145 |
145 |
140 |
2 |
|
>145≤180 |
180 |
140 |
2 |
|
>180≤220 |
220 |
120 |
2 |
|
>220≤300 |
300 |
100 |
2 |
|
Main parameter:
1.one set with 5 pcs, the diameter is :110mm,145mm,180mm,220mm,300mm
2.base and wall thickness:2mm±0.5mm
3.The vessel is made of low carbon steel having maxmum carbon content of 0.08%.
4.It's cylindrical without metallic handles or protrusions, the diameter of the flat area of the base of th evessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the bessel is0.006d.the base of the vessel is convex.
Note:The vessel is made of low carbon steel and having a maximun carbon content of 0.08%.It is cylindrical without metallic handles of protrusions.The diameter of the flat area of the base of the vessel is to be at least the diameter of cooking zone,The maximum concavity of the base the vessel is 0.008%.The base of the vessel is not to be concavity.
Company information
AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research &Development and Manufacture test equipments for many years. All our products are strictly designed and manufactured in accordance with IEC,CE,EN,VDE,ASTM,ISO and other international standards.
If you still have question,please feel free contact me
